INSTRUCTION MANUAL

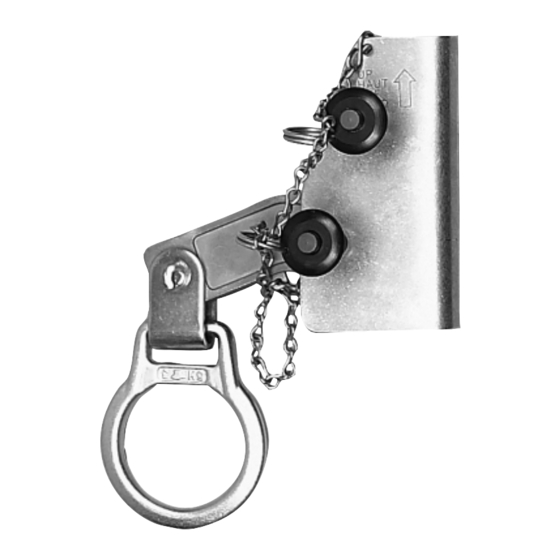

Figure 1 – Static Wire Rope Grab
Description
Wire Rope Grab
STATIC WIRE ROPE GRAB
FOR 3/8 INCH WIRE CABLE
Cable Requirements
For use with 9.5 mm (3/8 in) diameter
7x19 Galvanized or Stainless Steel Cable
LAD-SAF™
Model Number: 5000338
© Copyright 2012, DB Industries, Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LAD-SAF 5000338 and is the answer not in the manual?

Questions and answers

Related Manuals for DBI SALA LAD-SAF 5000338

Summary of Contents for DBI SALA LAD-SAF 5000338

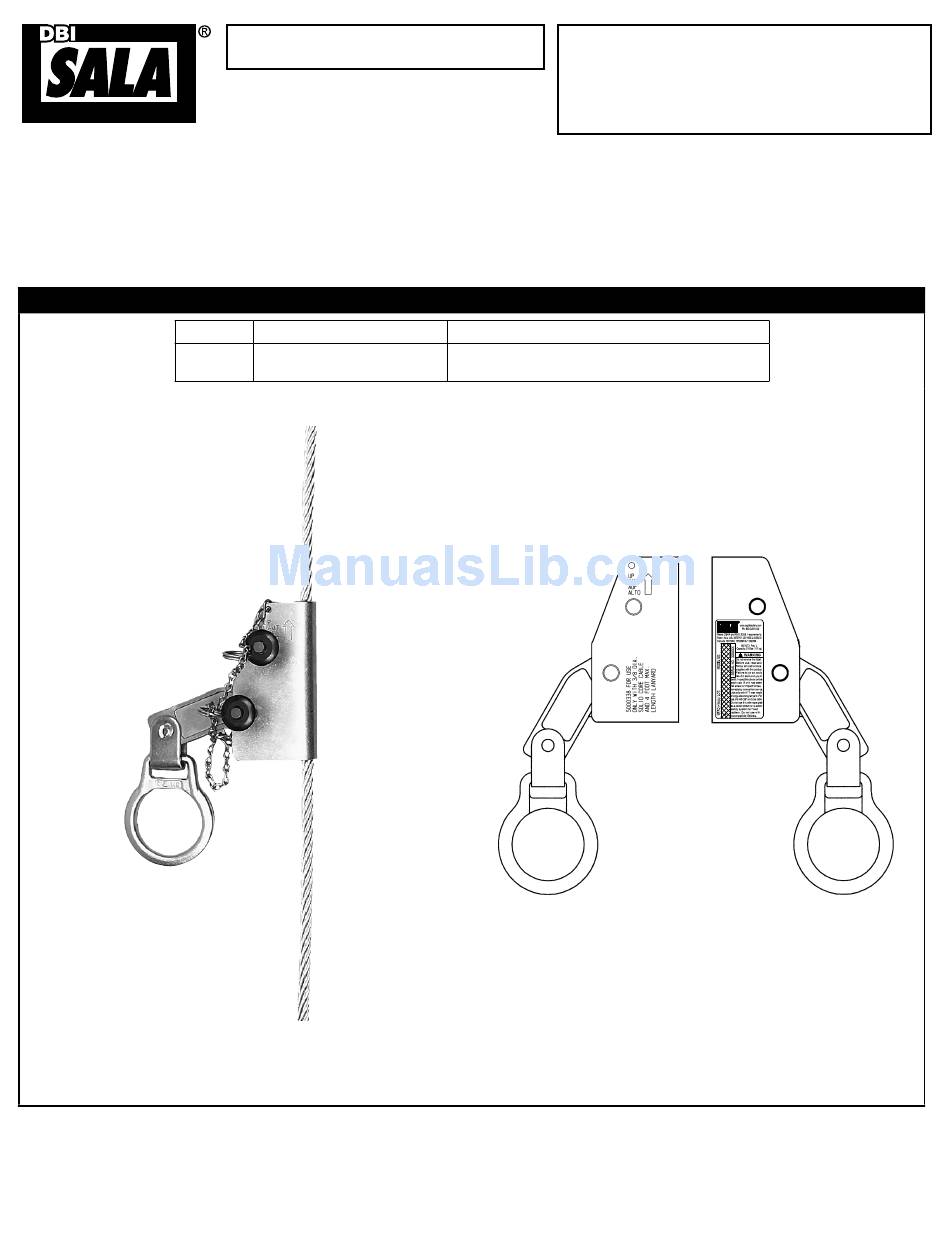

  • Page 1 LAD-SAF™ INSTRUCTION MANUAL STATIC WIRE ROPE GRAB FOR 3/8 INCH WIRE CABLE Model Number: 5000338 A Capital Safety Company Figure 1 – Static Wire Rope Grab Model Description Cable Requirements 5000338 Wire Rope Grab For use with 9.5 mm (3/8 in) diameter 7x19 Galvanized or Stainless Steel Cable FORM NO: 5906265 ©...
  • Page 3 WARNING: This product is part of a personal fall arrest system. The user must follow the manufacturer’s instructions for each component of the system. These instructions must be provided to the user of this equipment. The user must read and understand these instructions before using this equipment. Manufacturer’s instructions must be followed for proper use and maintenance of this equipment.
  • Page 4 1.0 APPLICATIONS 1.1 PURPOSE: The Lad-Saf™ Figure 3 – Applications is intended to be used as part of a personal fall arrest system or restraint system (Figure 3). The rope grab provides a portable lanyard connection point on a rope lifeline.
  • Page 5 FALL CLEARANCE: Ensure suffi cient clearance exists in your fall path to prevent striking an object during a fall. The clearance required is dependent upon the subsystem (rope grab and lanyard, rope grab and carabiner) and lifeline properties. Table 1 shows the approximate elongation for new DBI/SALA lifelines in dry conditions.
  • Page 6 Figure 5 – Unintentional Disengagement Figure 6 – Inappropriate Connections If the connecting element to which a snap hook (shown) or carabiner attaches is undersized or irregular in shape, a situation could occur where the connecting element applies a force to the gate of the snap hook or carabiner. This force may cause the gate (of either a self-locking or a non-locking snap hook) to open, allowing the snap hook or carabiner to disengage from the connecting point.

  • Page 7: Operation And Use

    3.0 OPERATION & USE PLANNING: Plan your fall protection system before starting your work. Account for all factors that may affect your safety before, during, and after a fall. Consider all limitations and requirements defi ned in Section 2. GENERAL USE CONSIDERATIONS: Avoid working where lifeline may cross or tangle with that of another worker.
  • Page 8 Figure 11 – Connect to Lifeline: Step 5 Figure 12 – Connect to Lifeline: Step 6 CONNECTING THE LANYARD TO THE BODY SUPPORT: Figure 13 – Connection (See Figure 13) Attach your lanyard (A) to the wire rope grab D-ring (B). When using an energy absorbing lanyard, the pack end of the lanyard is attached to the back D-ring on your body harness (C).

  • Page 9: Cleaning, Maintenance And Storage

    Table 2 - Inspections Schedule & Checklist Component: Inspection: Pass Fail Lad-Saf Wire Rope Grab Inspect the detent pins (A). The button should spring back when pushed down. The pins should slide easily through the wire rope grab body and wedge/handle assembly. Inspect the function of the wedge/handle assembly (B).
  • Page 10 8.0 LABELING This Identifi cation Label must be present and completely legible:...

  • Page 11: Inspection And Maintenance Log

    INSPECTION AND MAINTENANCE LOG SERIAL NUMBER: MODEL NUMBER: DATE PURCHASED: DATE OF FIRST USE: INSPECTION DATE INSPECTION ITEMS CORRECTIVE ACTION MAINTENANCE NOTED PERFORMED Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By:...

  • Page 12: Limited Lifetime Warranty

    LIMITED LIFETIME WARRANTY Warranty to End User: D B Industries, Inc., dba CAPITAL SAFETY USA (“CAPITAL SAFETY”) warrants to the original end user (“End User”) that its products are free from defects in materials and workmanship under normal use and service. This warranty extends for the lifetime of the product from the date the product is purchased by the End User, in new and unused condition, from a CAPITAL SAFETY authorized distributor.
