The Ultimate in Fall Protection
Form no: 5903350
rev: C
(488-610cm x 244cm)
A
B
C
USER INSTRUCTION MANUAL
1
H x O
201" x 96"
(511cm x 244cm)
240" x 96"
(610cm x 244cm)
248" x 96"
(630cm x 244cm)
252" x 96"
(640cm x 244cm)
264" x 96"
(671cm x 244cm)
284" x 96"
(721cm x 244cm)
192"-240" x 96"
246" X 96"
(625cm x 244cm)
D
E
Jib Boom Fall Arrest System

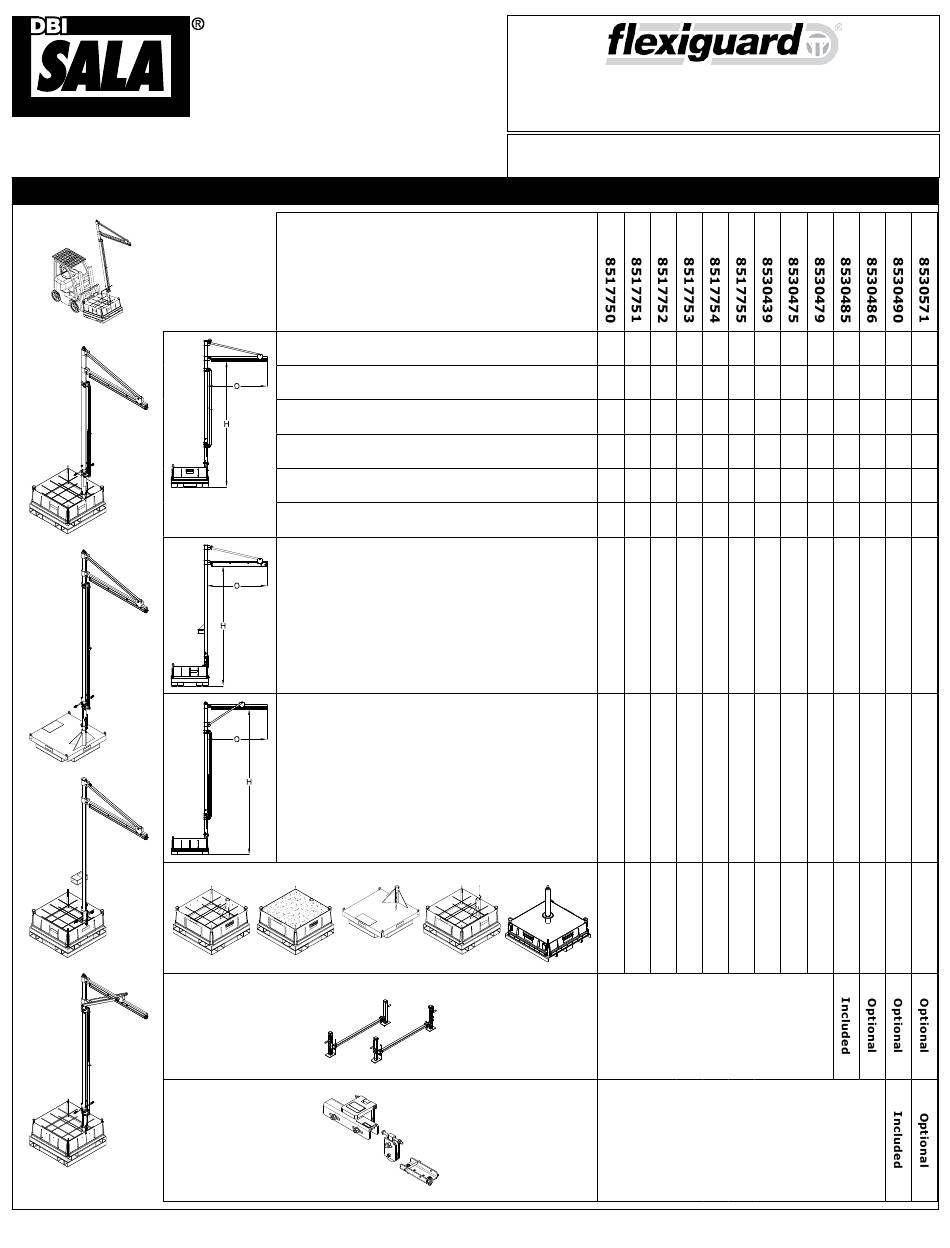

model numbers: (Figure 1)
√
√
√
√
√
√
√
A
B
A
B
A
B
A
8543368 Optional
8543359 Optional
© Copyright 2013, Capital Safety
√
√
√
√
√
√
C
D
A
C
A
E

Advertisement

loading
Need help?

Need help?

Do you have a question about the Flexiguard and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DBI SALA Flexiguard

Summary of Contents for DBI SALA Flexiguard

  • Page 1 Jib Boom Fall Arrest System model numbers: (Figure 1) The Ultimate in Fall Protection USER INSTRUCTION MANUAL H x O 201” x 96” √ √ (511cm x 244cm) 240” x 96” √ (610cm x 244cm) 248” x 96” √ √ √...
  • Page 2 ß H - ft (m) à ft (m) 0 (0.0) 2 (0.6) 4 (1.2) 6 (1.8) 0 (0.0) 0.0 0.0) 2.0 (0.6) 4.0 (1.2) 6.0 (1.8) 2 (0.6) 2.0 (0.6) 2.8 (0.9) 4.5 (1.4) 6.3 (1.9) 4 (1.2) 4.0 (1.2) 4.5 (1.4) 5.7 (1.7) 7.2 (2.2)

  • Page 6: Product Description

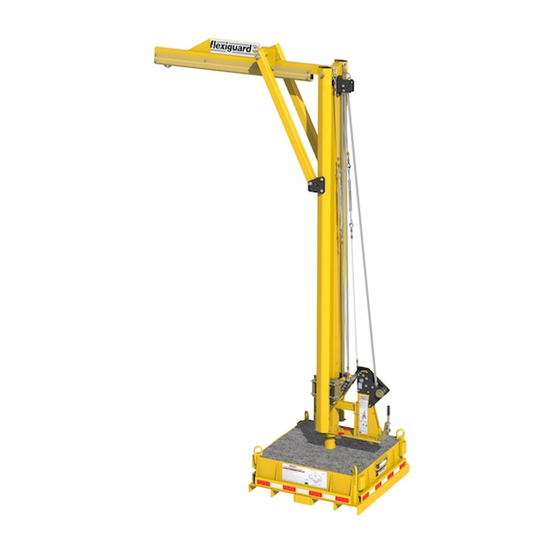

    Prior to installation and use of this equipment, record the product identification information from the ID label in the Inspection and Maintenance Log (Table 2) at the back of this manual. PRODUCT DesCRIPTION: Figure 1 illustrates Flexiguard Jib Boom Fall Arrest Systems. The Adjustable Jib Booms are fixed height boom mounted Glide ®...

  • Page 7: Product Application

    “Inspection and Maintenance Log”. AFTER A FAll: If the Flexiguard Anchorage System is subjected to the forces of arresting a fall, it must be removed from the field of service immediately and replaced or inspected by an Authorized Capital Safety Representative.
  • Page 8 FAll clEARAncE: There must be sufficient clearance below the user to arrest a fall before the user strikes the ground or other obstruction. Fall Clearance is dependent on the following factors: • Deceleration Distance • Worker Height • Elevation of Anchorage Connector •...
  • Page 9 PLANNING: Plan your fall protection system prior to installation of the Flexiguard Jib Boom Assembly. Account for all factors that may affect your safety before, during, and after a fall. Consider all requirements, limitations, and specifications defined in Section 2 and Table 1.
  • Page 10 PosItIoNING tHe system: Figure 9 illustrates positioning and preparation of the Jib Boom Asembly for work. Position and prepare the system as follows: 1. PosItIoN tHe JIb boom: Place the Jib Boom Assembly near the work area on a surface with 1° or less of slope. slopE InDICators: The Counterweight Base is equipped with three Slope Indicators (A) for verification of a level surface.
  • Page 11 INSPECTION InspectIon Frequency: The Flexiguard System must be inspected at the intervals defined in Section 1. Inspection procedures are described in the “Inspection and Maintenance Log” (Table 2). Inspect all other components of the Fall Protection System per the frequencies and procedures defined in the manufacturer’s instructions.
  • Page 12 LabeLs The following labels must be present on the Flexiguard Jib Boom Assembly. Labels must be replaced if they are not fully legible. Contact Capital Safety for replacement labels. LIFTING EYES PORTABLE ROTATING FlexiGuard PLACE 9504547 JIB DAVIT SYSTEM ID LABEL HERE...
  • Page 13 Verify that all labels are securely attached and are legible (see ‘Labels’) PFAS and Other Additional Personal Fall Arrest System (PFAS) equipment, winches, etc. that Equipment are used with the Flexiguard Portable Counterweighted Jib Boom Assembly should be installed and inspected per the manufacturer’s instructions. Serial Number(s): Date Purchased:...
  • Page 14 Diagram 1 Diagram 2...

  • Page 16: Limited Lifetime Warranty

    LIMITED LIFETIME WARRANTY Warranty to End User: D B Industries, Inc., dba CAPITAL SAFETY USA (“CAPITAL SAFETY”) warrants to the original end user (“End User”) that its products are free from defects in materials and workmanship under normal use and service. This warranty extends for the lifetime of the product from the date the product is purchased by the End User, in new and unused condition, from a CAPITAL SAFETY authorized distributor.
