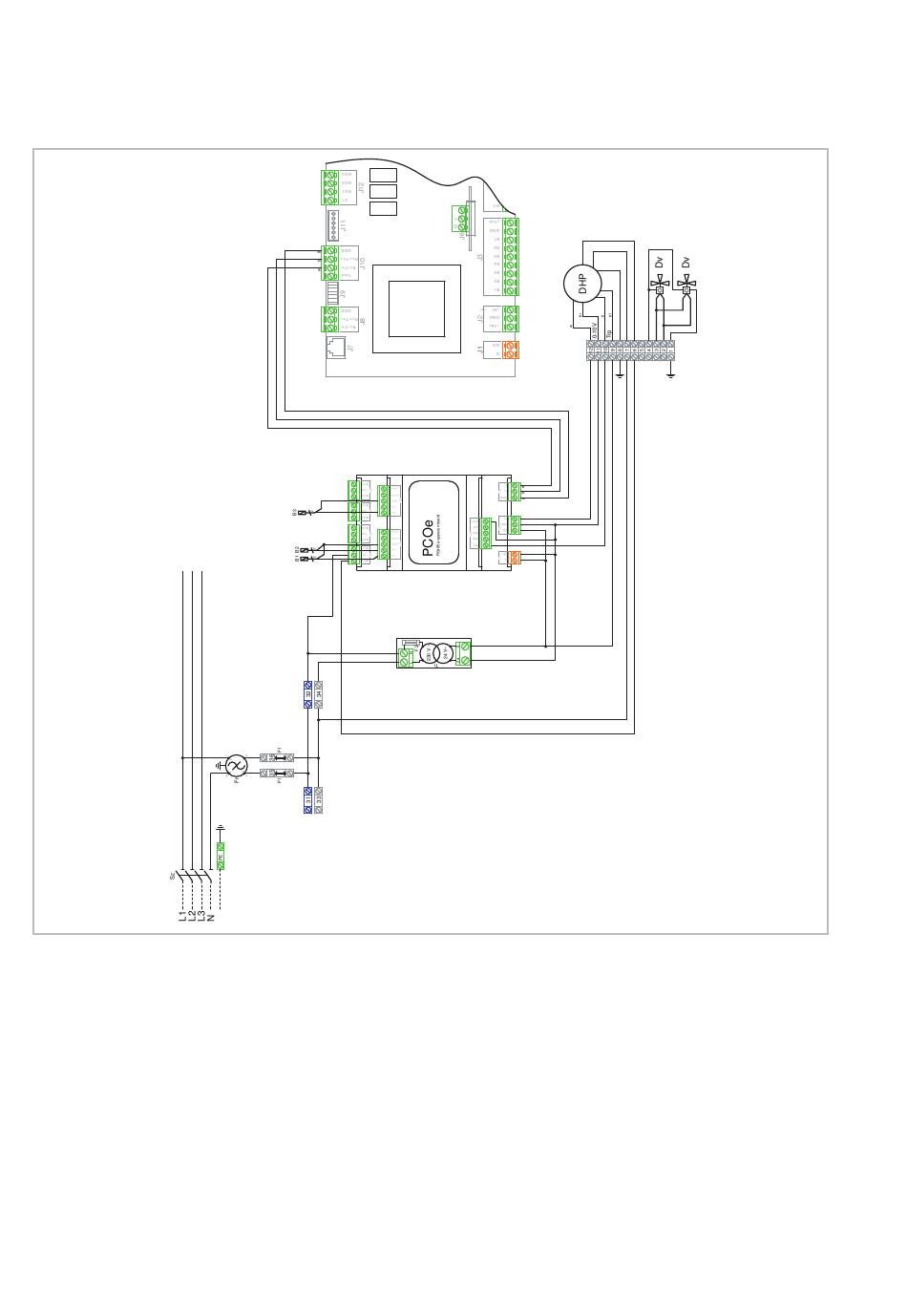

Electrical connection diagrams heating recovery (Smart-Heat)
Legend:
B1:
Gas temperature before 4WV
B2:
Recovery water inlet temperature
B3:
Recovery water outlet temperature
DHP:
DHW pump for recovery function
Dv:
3 way valve
F1:
Fuse 16A
F2:
Fuse 6A
Fr:
NInterference filter
PCOe:
Expansion module
16
Sz:
Main supply disconnector
Tr:
Trasformer
TrP:
Trasformer
Farben:
b:
black
bl:
blue
br:
brown
g:
green
w:
white
