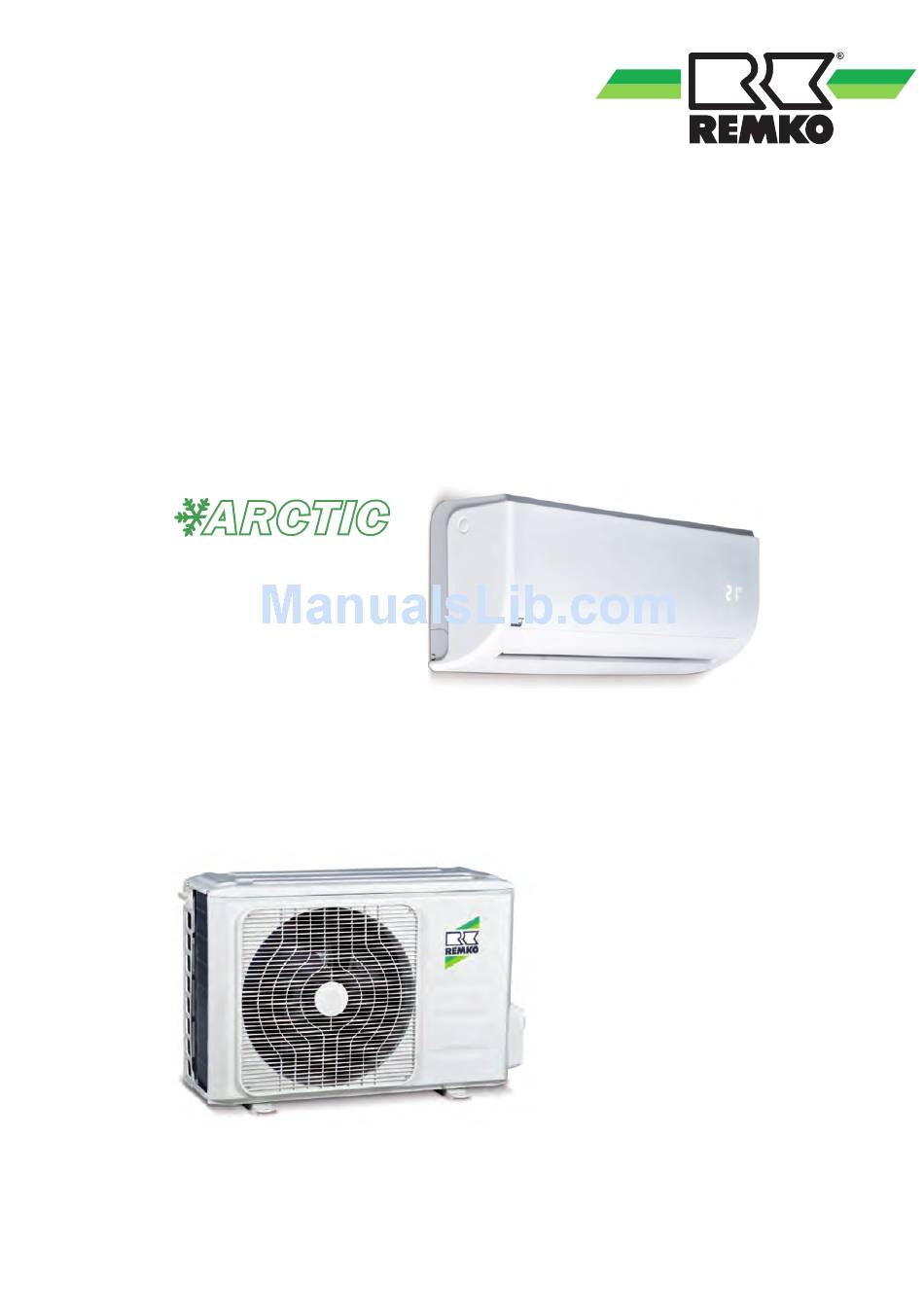

Assembly and operating instructions
REMKO RVT ARCTIC-WP
RVT 264 DC, RVT 354 DC, RVT 524 DC, RVT 684 DC
Inverter heat pump in split design
Read the instructions prior to performing any task!
0135-2016-06 Edition 1, en_GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RVT 264 DC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REMKO RVT 264 DC

Summary of Contents for REMKO RVT 264 DC

  • Page 1 Assembly and operating instructions REMKO RVT ARCTIC-WP RVT 264 DC, RVT 354 DC, RVT 524 DC, RVT 684 DC Inverter heat pump in split design Read the instructions prior to performing any task! 0135-2016-06 Edition 1, en_GB...
  • Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must always be kept near or on the device. REFRIGERANT Subject to modifications; No liability accepted for errors or mis- prints! Installation and operating instructions (translation of the orig- inal)

  • Page 3: Table Of Contents

    2.2 Unit dimensions ..........................12 2.3 Distance-dependent sound level....................13 2.4 Performance curves for heating and cooling ................14 Design and function..........................18 3.1 Characteristics of REMKO inverter air conditioner with split design..........18 3.2 Unit description..........................20 Operation............................. 21 4.1 General notes..........................21 4.2 Display on indoor unit........................
  • Page 4 REMKO RVT ARCTIC-WP 8.4 Electrical wiring diagram....................... 42 8.5 Electrical drawings........................44 8.6 Connection of a superordinate controller provided by the customer ..........47 Before commissioning........................50 Commissioning........................... 50 Trouble-shooting, fault analysis and customer service..............52 11.1 Troubleshooting and customer service..................52 11.2 Indoor unit fault analysis......................

  • Page 5: Safety And Usage Instructions

    Safety and usage instructions DANGER! This combination of symbol and signal word 1.1 General safety notes warns of a situation in which there is immediate danger, which if not avoided may be fatal or Carefully read the operating manual before com- cause serious injury.

  • Page 6: Dangers Of Failure To Observe The Safety Notes

    REMKO RVT ARCTIC-WP 1.4 Dangers of failure to observe Do not operate any further devices that pro- duce high heat or naked flames in the same the safety notes room. Failure to observe the safety notes may pose a risk All housing parts and unit openings, e.g.

  • Page 7: Unauthorised Modification And Changes

    "certificate of warranty" to The setup, connection and operation of the REMKO GmbH & Co. KG at the time when the units and its components must be undertaken units are purchased and commissioned.

  • Page 8: Environmental Protection And Recycling

    REMKO RVT ARCTIC-WP 1.12 Environmental protection and recycling Disposal of packaging All products are packed for transport in environ- mentally friendly materials. Make a valuable contri- bution to reducing waste and sustaining raw mate- rials. Only dispose of packaging at approved collection points.

  • Page 9: Technical Data

    Technical data 2.1 Unit data RVT 264 DC RVT 354 DC RVT 524 DC RVT 684 DC Series Inverter wall-mounted room air conditioner combination for Operating mode cooling and heating 2.40 2.50 4.20 5.60 Nominal heat capacity (0.80-3.90) (0.90-5.10) (1.30-7.00) (2.10-9.40)
  • Page 10 REMKO RVT ARCTIC-WP RVT 264 DC RVT 354 DC RVT 524 DC RVT 684 DC Data specific to indoor unit Application area (room volume), approx. Adjustment range room temp. °C +17 to +30 +8 with "FP" function Operating range °C...
  • Page 11 RVT 264 DC RVT 354 DC RVT 524 DC RVT 684 DC Data specific to outdoor unit V/Ph/ Power supply 230 / 1~ / 50 Operating range, cooling °C +5 to +50 Operating range, heating °C -20 to +34 Air flow rate, max.

  • Page 12: Unit Dimensions

    RVT 264-354 DC AT RVT 524 DC AT RVT 684 DC AT Indoor units Fig. 2: Indoor unit dimensions RVT 264-684 DC IT Dimensions (mm) RVT 264 DC IT RVT 354 DC IT RVT 524 DC IT RVT 684 DC IT 1106...

  • Page 13: Distance-Dependent Sound Level

    Distance-dependent sound level *) Installation type, in Max. sound power in Unit type accordance with the [dB(A)] [dB(A)] [dB(A)] [dB(A)] [dB(A)] drawing RVT 264 DC In free field 50.0 36.0 28.0 26.5 RVT 354 DC In free field 52.0 38.0 32.0 28.5...

  • Page 14: Performance Curves For Heating And Cooling

    2,00 1,50 1,00 0,50 0,00 [°C] Fig. 4: Performance curves, heating RVT 264 DC (data for room temperature 20 °C) A: Outside temperature 2: Heating capacity in kW 1: COP 3: Power consumption in kW Outside temperature in °C Heating capacity in kW 1.39...
  • Page 15 Heating capacity RVT 354 DC 6,50 6,00 5,50 5,00 4,50 4,00 3,50 3,00 2,50 2,00 1,50 1,00 0,50 0,00 [°C] Fig. 6: Performance curves, heating RVT 354 DC (data for room temperature 20 °C) A: Outside temperature 2: Heating capacity in kW 1: COP 3: Power consumption in kW Outside temperature in °C...
  • Page 16 REMKO RVT ARCTIC-WP Heating capacity RVT 524 DC 6,50 6,00 5,50 5,00 4,50 4,00 3,50 3,00 2,50 2,00 1,50 1,00 0,50 0,00 [°C] Fig. 8: Performance curves, heating RVT 524 DC (data for room temperature 20 °C) A: Outside temperature...
  • Page 17 Heating capacity RVT 684 DC 9,50 9,00 8,50 8,00 7,50 7,00 6,50 6,00 5,50 5,00 4,50 4,00 3,50 3,00 2,50 2,00 1,50 1,00 0,50 0,00 [°C] Fig. 10: Performance curves, heating RVT 684 DC (data for room temperature 20 °C) A: Outside temperature 2: Heating capacity in kW 1: COP...

  • Page 18: Design And Function

    Heat regulation in the fact turn itself off when heat is removed. The Remko inverter air conditioner is modulated to the same applies in the opposite direction with actual need. The electronics system has an inte- heating.
  • Page 19 Cooling mode The comfort zone in the illustration below shows which values for temperature and humidity are Because of circuit reversal, heating is also pos- considered comfortable for people. This range sible. In heating mode, the components of the should ideally be met when heating or air-condi- refrigeration circuit are used to produce warm air tioning buildings.

  • Page 20: Unit Description

    REMKO RVT ARCTIC-WP 3.2 Unit description The RVT 264-684 DC room air conditioners have a REMKO RVT...AT outdoor unit as well as an RVT...IT indoor unit. In cooling mode, the outdoor unit serves to output the heat extracted by the indoor unit from the room being cooled.

  • Page 21: Operation

    Operation 4.1 General notes Alarms are indicated by a code (see chapter The indoor unit is easily operated using the Troubleshooting and customer service). standard infrared remote control. The indoor unit beeps to acknowledge the correct transmission of data. If it is not possible to program the indoor unit with the remote control, then it can also be man- ually operated.

  • Page 22: Keys On The Remote Control

    REMKO RVT ARCTIC-WP 4.3 Keys on the remote control "SLEEP" key Activates/deactivates the "SLEEP" function. Pressing this key will automatically increase or decrease the target temperature by 1 °C within an hour in cooling and heating mode respectively. Press this key to maintain the most convenient temperature and save energy.
  • Page 23 "TIMER ON" key Indicators on the LCD Press this key to activate the unit start delay time. Each press of this key increases the delay time by 30 minutes. When the set time on the display exceeds 10.0, each press of the button increases the set time by 60 minutes.
  • Page 24 REMKO RVT ARCTIC-WP Press the "MODE" key to select from oper- ating modes "Cooling", "Heating" or "Recircu- lation". The illustration of the LCD with all of the sym- Press the "Arrow up/down" key to set the bols present is only intended to provide a desired temperature.
  • Page 25 "Dehumidification" mode "Timer" mode Make sure that the indoor unit is connected to the Press the "TIMER ON" key to set the "switch-on power supply, and is switched on. time" and the "TIMER OFF" key to set the "switch- off" time for the unit. The operating mode indicator on the display of the indoor unit begins to flash.
  • Page 26 REMKO RVT ARCTIC-WP Setting the “switch-off time” Example TIMER function settings Press the "TIMER OFF" key. The remote "TIMER ON" (Auto on mode) control shows "TIMER OFF", the last "switch- Example: off time" setting and the symbol "H" appear on the display. The unit is now ready to reset You want the air conditioning unit to switch on 2 the "switch-off time"...
  • Page 27 Combined TIMER (setting "TIMER ON" and "TIMER ON ð "TIMER OFF" "TIMER OFF" at the same time) (Off ð Start ð Stop) "TIMER OFF ð "TIMER ON" Example: (On ð Stop ð Start) You want the air conditioning unit to switch on in Example: two hours from the time it was programmed, and switch back off five hours later.
  • Page 28 REMKO RVT ARCTIC-WP SLEEP function The sleep function saves energy while you sleep. This function is activated by pressing the key on the remote control. Press the key before going to sleep. In cooling mode, the unit automatically increases the set room temperature by 1 °C after 1 hour.

  • Page 29: Installation Instructions For Qualified Personnel

    Installation instructions for qualified personnel 5.1 Important notes prior to instal- 5.2 Wall openings lation A wall opening of at least 70mm diameter and 10mm incline from the inside to the outside Transport the unit in its original packaging as must be created.

  • Page 30: Installation, Mounting Outdoor Unit

    REMKO RVT ARCTIC-WP 5.5 Installation, mounting During installation, add about 20 cm to the expected snow depth to guarantee unimpeded outdoor unit intake and exhaust of outdoor air year round Outdoor unit installation location (Fig. 32). The installation site of the outdoor unit should...
  • Page 31 Assessment level in accordance with TA noise Point of emissions days in dB(A) nights in dB(A) Industrial areas Commercial areas Core areas, village areas and mixed zones General residential areas and small housing estates Exclusively residential areas Spa areas, hospitals and mental institutions Isolated noise peaks of short duration may not exceed 30 dB(A) during the day and 20 dB(A) at night.

  • Page 32: Minimum Clearances

    REMKO RVT ARCTIC-WP 5.6 Minimum clearances Observe the minimum clearances to allow access for maintenance and repair work and facilitate optimum air distribution. Fig. 33: Minimum clearances of the indoor unit and outdoor unit AT: Outdoor unit Air inlet IT: Indoor unit...

  • Page 33: Oil Return Measures

    5.7 Oil return measures Fig. 34: Oil return measures A: Outdoor unit If the outdoor unit is installed at a higher level than B: Indoor unit the indoor unit, suitable oil return measures must 1: One oil pump bend in suction pipe to outdoor be taken.

  • Page 34: Wall Bracket For The Indoor Units

    5.9 Wall bracket for the indoor units Fig. 36: Wall bracket mounting points RVT 264-684 DC (rear view) Unit type/size (all dimensions in mm) RVT 264 DC IT RVT 354 DC IT RVT 524 DC IT RVT 684 DC IT All dimensions in mm.

  • Page 35: Connecting The Refrigerant Piping

    6.2 Connecting the refrigerant The following instructions describe the installation of the cooling cycle and the assembly of the indoor piping unit and the outdoor unit. The refrigerant piping is connected (responsibility The required pipe diameters are given in the of the customer) on the back side of the units.
  • Page 36 REMKO RVT ARCTIC-WP Label the refrigerant piping (injection and suc- tion pipes) as well as the associated electrical control lines of each interior unit with a letter. Only connect the lines to their associated con- nections. NOTICE! Always pay attention to the affiliation of the...

  • Page 37: Additional Notes On Connecting The Refrigerant Piping

    6.4 Leak testing Once all the connections have been made, the pressure gauge station is attached to the Schrader valve as follows (if fitted): red = small valve = high pressure blue = large valve = suction pressure Once the connection has been made successfully, the leak test is carried out with dry nitrogen.

  • Page 38: Adding Refrigerant

    5 metres per circuit. Refer to the following chart: Up to and From 5m to incl. 5m max. length RVT 264 DC RVT 354 DC 20 g/m 0 g/m RVT 524 DC RVT 684 DC...
  • Page 39 Safe drainage in the event of leakages For the designations of 1,3,5,8,9 and 11, please refer to the legend for the Fig. 42 The REMKO oil separator OA 2.2 fulfils the fol- lowing list of requirements from regional regula- dimensioning of the strip foundation (in mm) tions and laws.

  • Page 40: Electrical Wiring

    REMKO RVT ARCTIC-WP Electrical wiring 8.1 General Information 8.2 Connecting the indoor unit A protected power supply cable is to be connected We recommend installing a main / repair switch to the outdoor unit and a five-core control line to on the building close to the indoor unit.

  • Page 41: Connecting The Outdoor Unit

    Make the connection as follows: Remove the screws [A] und [B], which are behind of the cover (see Fig. 46). You can now fold up the unit cover [C] (see Fig. 47). Connect the control line provided by the cus- tomer to the terminals [D] (see Fig.

  • Page 42: Electrical Wiring Diagram

    REMKO RVT ARCTIC-WP 8.4 Electrical wiring diagram Connection RVT 264-684 DC 1(L) 2(N) S 1(L) 2(N) S 230V/1~/50 Hz Fig. 50: Electrical wiring diagram A: Outdoor unit RVT 264-684 DC AT 1: Power supply B: Indoor unit RVT 264-684 DC IT...
  • Page 43 Connection of optional condensate pump KP 6 / KP 8 W 1(L) 2(N) W 1(L) 2(N) L N PE Fig. 51: Electrical wiring diagram Outdoor unit Condensate pump supply Indoor unit Condensate pump fault contact Condensate pump KP 6 / KP 8 BK: Black Power supply WH: white...

  • Page 44: Electrical Drawings

    REMKO RVT ARCTIC-WP 8.5 Electrical drawings Indoor units RVT 264-684 DC IT CN27 CN13 CN12 CN19 CN22 CN26 WEISS L-OUT CN29 L-IN CN701 BLAU(SCHWARZ) GELB GELB/GRÜN N_IN CN15 CN18 CN32 CN31 CN14 1(L) 2(N) CN40 CN43 CN42 CN41 CN44 Cn45...
  • Page 45 Outdoor units RVT 264-354 DC AT Gelb oder Schwarz Blau Braun Schwarz Fig. 53: Electrical drawings RVT 264-354 DC AT A: Control board Condensate tray heating (optional) Compressor Heat gas probe Supply line to the indoor unit Condenser temperature probe Power supply Condenser outlet temperature probe 4-way valve (optional)
  • Page 46 REMKO RVT ARCTIC-WP Outdoor units RVT 524-684 DC AT CN414 L-OUT Blau CN13 CN12 Blau Schwarz (Blau) Gelb CN6-1 CN10 1(L) 2(N) S L Fig. 54: Electrical drawings RVT 524-684 DC AT A: Control board Fan motor (optional) Supply line to the indoor unit...

  • Page 47: Connection Of A Superordinate Controller Provided By The Customer

    8.6 Connection of a superordinate The multifunction board is slid into the mount previ- ously fitted for this purpose. controller provided by the cus- tomer Units of type RVT can be switched on and off by a superordinate controller. In order to realise this function, it is necessary to insert the multifunction board provided (Fig.
  • Page 48 REMKO RVT ARCTIC-WP The multifunction board is equipped with a total of 3 terminals (see Fig. 58), with which the following func- tions can be realised: Fig. 58: Terminals 1: On/Off contact CN 46 / 2: KFB-W contact CN 44...
  • Page 49 Electrical wiring for optional KFB-R redundancy controller BUS connection Output 1 Output 2 Output 3 ERR = Contact Input 1 Input 2 Input 3 OK = Contact CN46 CN45 CN46 CN45 Start/Stop Start/Stop Alarm Alarm RVT indoor unit (A) RVT Innenteil (A) RVT indoor unit (B) RVT Innenteil (B) When establishing the connection between the unit series RVT 264-684 DC and the redundancy control...

  • Page 50: Before Commissioning

    REMKO RVT ARCTIC-WP Before commissioning Commissioning After leak testing has been successfully com- pleted, connect the vacuum pump via the pressure NOTICE! gauge station to the valve connections on the out- door unit (see chapter "Leak testing") and create a Commissioning should only be performed by vacuum.
  • Page 51 Function test of the cooling and heating modes Remove the protective caps from the valves. Start the commissioning procedure by briefly opening the shut-off valves on the outdoor unit until the pressure gauge indicates a pressure of approx. 2 bar. Check all connections for leaks with leak detection spray and suitable leak detectors.

  • Page 52: Trouble-Shooting, Fault Analysis And Customer Service

    REMKO RVT ARCTIC-WP Trouble-shooting, fault analysis and customer service 11.1 Troubleshooting and customer service The unit and components are manufactured using state-of-the-art production methods and tested several times to verify their correct function. However, if alarms should occur, please check the functions as detailed in the list below.
  • Page 53 Malfunction Possible causes Checks Remedial measures Windows and doors Have structural / usage Close windows and open. Heating / cooling modifications been doors / install additional load has increased made? units Cooling mode is not set Does the cooling symbol Correct the settings for appear on the display? the unit...

  • Page 54: Indoor Unit Fault Analysis

    REMKO RVT ARCTIC-WP Fault display on the indoor unit Display Error description EEPROM error, indoor unit Communication error between indoor unit and outdoor unit Fan speed control indoor unit disabled Room temperature probe T1 defective Temperature probe, evaporator T2 defective...
  • Page 55 Error code: Reason: The indoor unit does not receive a signal from the outdoor unit within 110 seconds. The check is performed 4 times in a row, then error E1 is displayed. Cause: Electrical connection not configured correctly Control boards outdoor unit or indoor unit defective Switch off voltage, switch on again 2 minutes later.
  • Page 56 REMKO RVT ARCTIC-WP Error code: E3 / F5 Reason: If the fan speed of the indoor unit/outdoor unit falls below 300 rpm, the unit switches off and the display shows error code E3 or E5 Cause: Electrical connection faulty Evaporator fan wheel defective...
  • Page 57 Procedure DC fan motor of the indoor unit (control chip is installed in the motor): Switch on the voltage to the unit. In standby mode, measure the unit between terminals 1-3 and 4-3 of the connector plug. Check the measured values against those listed in the table below. If these differ, there is a problem with the control board and it must be replaced.
  • Page 58 REMKO RVT ARCTIC-WP Error code: Reason: The evaporator probe T2 measures the actual value with the compressor start and takes this as the reference value T . If, 5 minutes after the compressor start, the value T Start Start has not dropped by 2 °C for at least 4 seconds then the system assumes that the refrig- erant is low.
  • Page 59 Error code: E4 / E5 / F1 / F2 / F3 Reason: If the test voltage of the probes is lower than 0.06 V or higher than 4.94 V then the display shows the error code of the corresponding probe. Cause: Electrical connection faulty Temperature probe defective...
  • Page 60 REMKO RVT ARCTIC-WP Error code: Reason: Safety shutdown due to overly high current consumption of individual unit components Cause: Faulty power supply Cooling circuit blocked Faulty control board Electrical connections faulty Compressor defective Switch the unit off and ensure correct supply Check the supply voltage.
  • Page 61 Error code: Reason: If the power supply to the compressor controller is faulty, the display shows the error code “P0” and the unit switches off Cause: Electrical connection faulty Faulty control board Condenser fan motor defective or blocked Compressor defective Check the connecting cables between the con- Establish a correct connection between the trol board and compressor? Are they faulty?
  • Page 62 REMKO RVT ARCTIC-WP Error code: Reason: Overvoltage or undervoltage protection has tripped Cause: Faulty supply voltage Refrigerant low or cooling circuit blocked Faulty control board Check the power supply. Is the supply voltage Switch the unit off and have the power supply correct? checked/corrected.
  • Page 63 Error code: P2 (with units with a thermal contact) Reason: If the test voltage of the thermal contact does not lie at 5V then the display shows the error message “P2” Cause: Faulty supply voltage Refrigerant low or cooling circuit blocked Faulty control board Check the air flow volumes of the...
  • Page 64 REMKO RVT ARCTIC-WP Error code: Reason: Safety shutdown of inverter controller. Internal system monitoring triggered (e.g. communi- cation problem between board and compressor, the compressor speed is not OK) Cause: Faulty electrical connections Inverter regulation on board defective Condenser fan motor defective...
  • Page 65 Resistance values for probes T1, T2, T3 and T4 K Ohm K Ohm K Ohm K Ohm...
  • Page 66 REMKO RVT ARCTIC-WP Resistance values for probe T5 K Ohm K Ohm K Ohm K Ohm...

  • Page 67: Care And Maintenance

    Care and maintenance Maintenance It is recommended that you take out a mainte- Regular care and observation of some basic points nance contract with an annual service from an will ensure trouble-free operation and a long appropriate specialist firm. service life. DANGER! This enables you to ensure the operational reli- Prior to performing any work, ensure the equip-...
  • Page 68 REMKO RVT ARCTIC-WP Cleaning the housing Clean the filter with a commercially available vacuum cleaner. To do so, turn the dirty side Disconnect the power supply to the unit. so it is facing upwards. Open and fold the air inlet grill on the front side upwards.

  • Page 69: Shutdown

    Ensure that units and components are disposed of in accordance with local regulations, e.g. through authorised disposal and recycling specialists or at collection points. REMKO GmbH & Co. KG or your contractual partner will be pleased to provide a list of certified firms in your area.

  • Page 70: Exploded View And Spare Parts Lists

    REMKO RVT ARCTIC-WP Exploded view and spare parts lists 14.1 Exploded view - Indoor unit RVT 264-684 DC IT Fig. 64: Exploded view of the unit RVT 264-684 DC IT We reserve the right to modify the dimensions and design as part of the ongoing technical development...

  • Page 71: Spare Parts List - Indoor Unit Rvt 264-684 Dc It

    14.2 Spare parts list - Indoor unit RVT 264-684 DC IT IMPORTANT! To ensure the correct delivery of spare parts, please always the device type with the corresponding serial number (see type plate) No. Designation Air outlet flap, horizontal Housing front Circuit board, display Ambient air probe Unit trim, bracket right...

  • Page 72: Exploded View - Outdoor Unit Rvt 264-354 Dc At

    REMKO RVT ARCTIC-WP 14.3 Exploded view - Outdoor unit RVT 264-354 DC AT Fig. 65: Exploded view of the unit RVT 264-354 DC AT We reserve the right to modify the dimensions and design as part of the ongoing technical development...

  • Page 73: Spare Parts List - Outdoor Unit Rvt 264-354 Dc At

    14.4 Spare parts list - Outdoor unit RVT 264-354 DC AT IMPORTANT! To ensure the correct delivery of spare parts, please always the device type with the corresponding serial number (see type plate) No. Designation Condenser protection grille Front panel, condenser Fan blade Fan motor Fan motor mount...

  • Page 74: Exploded View - Outdoor Unit Rvt 524 Dc At

    REMKO RVT ARCTIC-WP 14.5 Exploded view - Outdoor unit RVT 524 DC AT Fig. 66: Exploded view of the unit RVT 524 DC AT We reserve the right to modify the dimensions and design as part of the ongoing technical development...

  • Page 75: Spare Parts List - Outdoor Unit Rvt 524 Dc At

    14.6 Spare parts list - Outdoor unit RVT 524 DC AT IMPORTANT! To ensure the correct delivery of spare parts, please always the device type with the corresponding serial number (see type plate) No. Designation Condenser protection grille Front panel, condenser Fan blade Fan motor Fan motor mount...

  • Page 76: Exploded View - Outdoor Unit Rvt 684 Dc At

    REMKO RVT ARCTIC-WP 14.7 Exploded view - Outdoor unit RVT 684 DC AT Fig. 67: Exploded view of the unit RVT 684 DC AT We reserve the right to modify the dimensions and design as part of the ongoing technical development...

  • Page 77: Spare Parts List - Outdoor Unit Rvt 684 Dc At

    14.8 Spare parts list - Outdoor unit RVT 684 DC AT IMPORTANT! To ensure the correct delivery of spare parts, please always the device type with the corresponding serial number (see type plate) No. Designation Condenser protection grille Front panel, condenser Fan blade Fan motor Fan motor mount...

  • Page 78: Index

    REMKO RVT ARCTIC-WP Index Minimum clearances ..... 32 Multifunction board, connection ... . . 47 Alarms Checks .
  • Page 80 SFlb Customer Service Our equipment operates precisely and reliably. However, in the event of a fault, REMKO customer service is quickly at the scene. Our comprehensive network of experienced dealers always guarantees quick and reliable service.
