REMKO SQW 400 Electrical Wiring page 14

REMKO modular energy control centre

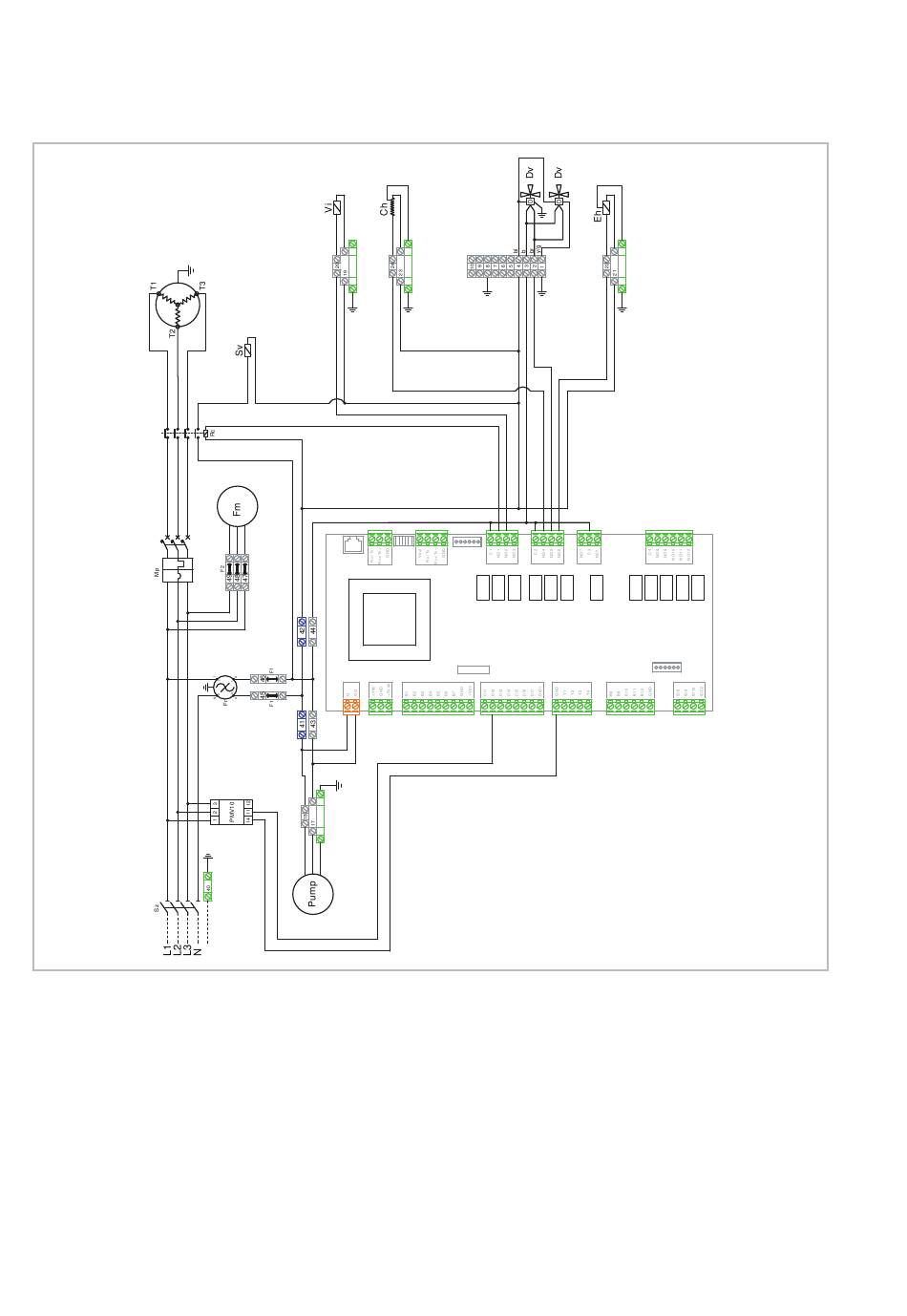

Power circuit wiring diagram
Legend:
Ch: Compressor trace heating
Comp: Compressor
Dv: 3-way valve
Eh: Control command e-heating element 9 kW
F1: Fuse 16 A
F2: Fuse 6 A
Fm: Fan motor
Fr: Interference filter
Hd: Condensate discharge heating
Ph: Capacitor
14
J7
J8
J1 J1 J2
Pmr
J9
J11
J12 J13
J10
J6
J3 J4 J5
Pmr: Phase monitoring relay
Pump: Primary pump
Rc: Compressor contact
Sv: Compressor motor protection
Sz: Main power supply isolator switch
Vi: 4-way valve
Colours:
b: black
blu: blue
bro: brown
y/g: yellow/green
J14 J15
J17
J18 J16
