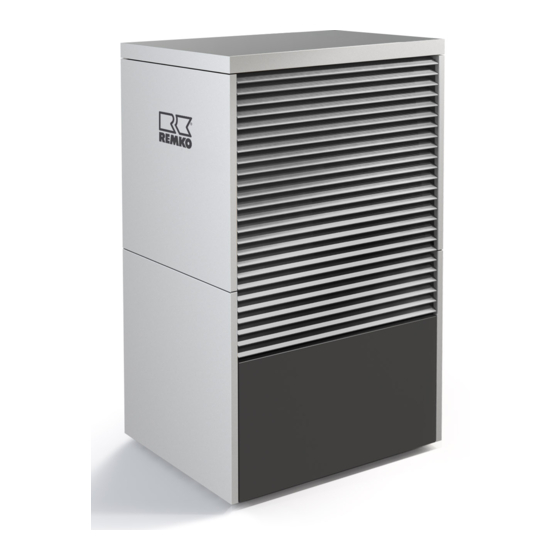

- Page 1 Operating and installation instructions REMKO LWM series Monobloc heat pumps Air/water system for heating and cooling LWM 80, LWM 110, LWM 150, LWM 110 Duo, LWM 150 Duo Instructions for Technicians 0205-2019-07 Edition 1, en_GB Read the instructions prior to performing any task!
- Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must R454B always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- Refrigerant prints! Translation of the original...
-
Page 3: Table Of Contents
Table of contents Safety and usage instructions......................4 1.1 General safety notes........................4 1.2 Identification of notes........................4 1.3 Personnel qualifications........................4 1.4 Dangers of failure to observe the safety notes................4 1.5 Safety-conscious working....................... 5 1.6 Safety notes for the operator......................5 1.7 Safety notes for installation, maintenance and inspection.............. -
Page 4: Safety And Usage Instructions
REMKO LWM series Safety and usage instructions DANGER! This combination of symbol and signal word 1.1 General safety notes warns of a situation in which there is immediate danger, which if not avoided may be fatal or Carefully read the operating manual before com- cause serious injury. -
Page 5: Safety-Conscious Working
In particular, failure to observe the safety notes Regional regulations and laws as well as the may pose the following risks: Water Ecology Act (WHG) must be observed. Only install and store the units in rooms larger The failure of important unit functions. than 4 m . -
Page 6: Warranty
"certificate of warranty" to rials. Only dispose of packaging at approved REMKO GmbH & Co. KG at the time when the collection points. units are purchased and commissioned. -
Page 7: Technical Data
Technical data 2.1 Unit data Series LWM 80 LWM 110 LWM 150 Function Heating or Cooling System Air/water Heat pump manager Smart Control Touch Drinking water tank enamelled optional Auxiliary heater installed/rated output optional 7.5 Domestic hot-water heating (change- optional over valve) Connection oil/gas boiler changeover optional... - Page 8 REMKO LWM series Series LWM 80 LWM 110 LWM 150 Heater for anti-freeze protection power V/Ph/Hz 230/1~/50 supply (optional) Max. current consumption per phase Rated current consumption for A7/W35 5.30 2.57 3.27 Rated power consumption for A7/W35 1.22 1.60 2.04 Rated power consumption for A2/W35 1.06...
- Page 9 Series LWM 110 Duo LWM 150 Duo Function Heating or Cooling System Air/water Heat pump manager Smart Control Touch Drinking water tank enamelled optional Auxiliary heater/rated output per heat pump Domestic hot-water heating (changeover valve) optional Connection oil/gas boiler optional Heating capacity min./max.
- Page 10 REMKO LWM series Series LWM 110 Duo LWM 150 Duo Rated power consumption for A7/W35 1.60 2.04 Rated power consumption for A2/W35 per heat pump 1.57 2.03 Max. power consumption per heat pump Power factor at A7/W35 (cosφ) per heat pump...
-
Page 11: Product Data
A++/A++ Nominal heating power P rated Room heating energy efficiency hs 35°C/55°C 161/136 161/142 164/138 Contribution to the seasonal room heating energy efficiency of the REMKO Smart-Control Yearly energy consumption Q 35°C/ 55°C 2629/3173 3395/3797 4588/5780 Sound power level L... - Page 12 A++/A++ Nominal heating power P rated Room heating energy efficiency hs 35°C/55°C 161/142 164/138 Contribution to the seasonal room heating energy efficiency of the REMKO Smart-Control Yearly energy consumption Q 35°C/ 55°C 6790/7594 9176/11560 Sound power level L per heat pump...
-
Page 13: Unit Dimensions Of Indoor Units
2.3 Unit dimensions of indoor units Unit dimensions Fig. 1: Unit dimensions (all dimensions in mm) A: Front view C: Side view B: Bird´s eye view... - Page 14 REMKO LWM series Designations of the pipe connections Fig. 2: Designations of the pipe connections A: Rear view 3: Return flow heat pump 1 1/4" B: Bird´s eye view 4: Cable inlets 1: Condensate drain a: Air inlet 2: Inlet heat pump 1 1/4"...
-
Page 15: Diagram, Cooling Cycle
2.4 Diagram, cooling cycle Fig. 3: Diagram, cooling cycle Refrigerant dryer 11: Hot gas probe/Suction gas probe Refrigerant inspection glass 12: High pressure switch 45 bar Electr. expansion valve 13: 4-way changeover valve Finned heat exchanger air suction probe 14: Safety valve Finned heat exchanger fan 15: Water outlet probe/Heat pump inlet Finned heat exchanger air outlet probe... -
Page 16: Heat Pump Usable Limits In Monovalent Operation
REMKO LWM series 2.5 Heat pump usable limits in monovalent operation -7°C; 65°C 37°C; 60°C -23°C; 45°C 37°C; 35°C -23°C; 24°C Fig. 4: Usable limits LWM A: Outside temperature [°C] B: Heating water inlet temperature [°C] Outside temperature [°C] Inlet temperature [°C] 2.6 Pump characteristics and circulation pump pressure losses... - Page 17 Residual head with pumps according to accessories (without pressure loss of the 3-way changeover valve) REMKO changeover valve DN 25 The pipe dimensions from the heat pump to the on-site hydraulic connection must be designed according to the design medium flow rate.
-
Page 18: Total Sound Power Level
REMKO LWM series 2.7 Total sound power level LWM 80 60,0 50,0 40,0 30,0 20,0 10,0 800 1000 1250 1600 2000 2500 3150 4000 5000 6300 8000 10000 Fig. 6: Total sound power level L A: Sound power level L... - Page 19 LWM 110/LWM 110 Duo 60,0 50,0 40,0 30,0 20,0 10,0 800 1000 1250 1600 2000 2500 3150 4000 5000 6300 8000 10000 Fig. 7: Total sound power level L A: Sound power level L re 1pW [dB(A)] 2: Night mode 60% A7/W55 3: A total [dB(A)] B: Frequency [Hz] 1: Nominal/max.
- Page 20 REMKO LWM series LWM 150/LWM 150 Duo 70,0 60,0 50,0 40,0 30,0 20,0 10,0 800 1000 1250 1600 2000 2500 3150 4000 5000 6300 8000 10000 Fig. 8: Total sound power level L A: Sound power level L re 1pW [dB(A)]...
-
Page 21: Characteristic Curves
2.8 Characteristic curves Heating capacity LWM 80 at inlet temperature of 35°C n-max 60 Hz Fig. 9: Heating capacity at inlet temperature of 35 °C A: Outside temperature [°C] C: Rated frequency [Hz] B: Heating capacity/total thermal load [kW] Heating capacity LWM 80 at inlet temperature of 45 °C 60 Hz n-max Fig. - Page 22 REMKO LWM series Heating capacity LWM 80 at inlet temperature of 55 °C n-max 60 Hz Fig. 11: Heating capacity at inlet temperature of 55 °C A: Outside temperature [°C] C: Rated frequency [Hz] B: Heating capacity/total thermal load [kW] COP LWM 80 at inlet temperature 35 °C, 45 °C and 55 °C...
- Page 23 Heating capacity LWM 110 at inlet temperature of 35 °C 60 Hz n-max Fig. 13: Heating capacity at inlet temperature of 35 °C A: Outside temperature [°C] C: Rated frequency [Hz] B: Heating capacity/total thermal load [kW] Heating capacity LWM 110 at inlet temperature of 45 °C 60 Hz n-max Fig.
- Page 24 REMKO LWM series Heating capacity LWM 110 at inlet temperature of 55 °C 60 Hz n-max Fig. 15: Heating capacity at inlet temperature of 55 °C A: Outside temperature [°C] C: Rated frequency [Hz] B: Heating capacity/total thermal load [kW] COP LWM 110 at inlet temperature 35 °C, 45 °C and 55 °C...
- Page 25 Heating capacity LWM 150 at inlet temperature of 35 °C 60 Hz n-max Fig. 17: Heating capacity at inlet temperature of 35 °C A: Outside temperature [°C] C: Rated frequency [Hz] B: Heating capacity/total thermal load [kW] Heating capacity LWM 150 at inlet temperature of 45 °C 60 Hz n-max Fig.
- Page 26 REMKO LWM series Heating capacity LWM 150 at inlet temperature of 55 °C n-max 60 Hz Fig. 19: Heating capacity at inlet temperature of 55 °C A: Outside temperature [°C] C: Rated frequency [Hz] B: Heating capacity/total thermal load [kW] COP LWM 150 at inlet temperature 35 °C, 45 °C and 55 °C...
- Page 27 Heating capacity LWM 110 Duo at inlet temperature of 35 °C 60 Hz n-max Fig. 21: Heating capacity at inlet temperature of 35 °C A: Outside temperature [°C] C: Rated frequency [Hz] B: Heating capacity/total thermal load [kW] Heating capacity LWM 110 Duo at inlet temperature of 45 °C 60 Hz n-max Fig.
- Page 28 REMKO LWM series Heating capacity LWM 110 Duo at inlet temperature of 55 °C n-max 60 Hz Fig. 23: Heating capacity at inlet temperature of 55 °C A: Outside temperature [°C] C: Rated frequency [Hz] B: Heating capacity/total thermal load [kW] COP LWM 110 Duo at inlet temperature 35 °C, 45 °C and 55 °C...
- Page 29 Heating capacity LWM 150 Duo at inlet temperature of 35 °C 60 Hz n-max Fig. 25: Heating capacity at inlet temperature of 35 °C A: Outside temperature [°C] C: Rated frequency [Hz] B: Heating capacity/total thermal load [kW] Heating capacity LWM 150 Duo at inlet temperature of 45 °C 60 Hz n-max Fig.
- Page 30 REMKO LWM series Heating capacity LWM 150 Duo at inlet temperature of 55 °C 60 Hz n-max Fig. 27: Heating capacity at inlet temperature of 55 °C A: Outside temperature [°C] C: Rated frequency [Hz] B: Heating capacity/total thermal load [kW] COP LWM 150 Duo at inlet temperature 35 °C, 45 °C and 55 °C...
-
Page 31: Unit Description
A heat pump is a unit which makes use of a Description working medium to absorb ambient heat under low The LWM series is a monobloc heat pump in which temperatures and transports this heat to a place refrigeration components are installed in a hermeti- where it can be of use for heating purposes. - Page 32 REMKO LWM series Layout Design example A precise calculation of the building’s heating load By way of a design example, a residential home according to EN 12831 is required for the design with a living area of 150 m and a heating require- and dimensioning of a heating system.
- Page 33 Fig. 30: Heating performance diagram of the heat pump LWM Monobloc heat pump REMKO inverter technology The REMKO inverter heat pump is connected to The heat pump's compressor is equipped with are the house via water-carrying pipes. The water-car- equipped with a speed control system, as needed.
- Page 34 You will find corresponding devices in the KWD, KWK and WLT-S series on our web- site: “www.remko.de”. The advantage here is that dew point monitoring is not required.
-
Page 35: Assembly
Assembly 4.1 System layout System layout for heat pump assembly LWM 300 IM Stuttgart A: Outdoor unit 1: Unmixed cycle B: Indoor unit with storage tank 2: Cold water C: External probe 3: Hot water System layout for heat pump assembly LWM Duo Mannheim Außenfühler A1/A2: Heat pump 1 and 2 Hot water... -
Page 36: General Installation Notes
REMKO LWM series 4.2 General installation notes Wall opening A wall opening of approx. 200 mm diameter and 10 mm incline from the inside to the out- DANGER! side must be created. To prevent damage, the interior of the wall... -
Page 37: Set-Up And Assembly Of The Heat Pump
20 cm other constructions (Fig. 34). The snow line is to be observed during installation (Fig. 35). REMKO recommends always placing the unit Fig. 35: Protection against snow on vibration dampers. Vibration dampers pre- 1: Snow vent the transmission of vibrations through the floor or walls. - Page 38 REMKO LWM series Assessment level in accordance with TA noise Point of emissions Daytime in Night-time in dB(A) dB(A) Industrial areas Commercial areas Core areas, village areas and mixed zones General residential areas and small housing estates Exclusively residential areas Spa areas, hospitals and mental institutions Isolated noise peaks of short duration may not exceed 30 dB(A) during the day and 20 dB(A) at night.
- Page 39 Minimum distances during construction Minimum distances during construction of a heat pump of multiple heat pumps >= 250 >= 600 >= 600 >= 600 >= 600 >= 1000 >= 1000 Fig. 36: Minimum distances during construction of a heat pump in mm 1: Next to a wall, air outlet open to the front, flow restriction behind 2: Next to a wall, air outlet toward the wall, flow...
- Page 40 REMKO LWM series Condensate drainage connection and safe drainage - strip foundation Fig. 39: Dimensions for the strip foundation (bird's eye view) 1: Heat pump 4: Reinforced strip foundation, frost free 5: Gravel layer for seepage 9: Drainage pipe dimensioning the strip foundation...
- Page 41 Condensate drainage connection Heater for anti-freeze protection If the temperature falls below the dewpoint on the The heater for anti-freeze protection is used to finned evaporator, condensation occurs during the control the temperature of the interior space of the heating operation. hydraulic unit.
-
Page 42: Hydraulic Connection
Plan for air bleed valves and drain-off taps at Actual schemas for hydraulic integration can be appropriate places. found on the internet at www.remko.de Flush the system’s entire pipe network before connecting the heat pump. One or, where necessary, several expansion vessels must be designed for the entire hydraulic system. - Page 43 There is a pressure drop present on site (see technical data). If the pressure losses on site exceed this, a separate storage tank, e.g. REMKO KPS, must be used as a hydraulic compensator. Then a REMKO heating cycle group unmixed, type HGU, and two mixed heating cycle groups, type HGM, are available.
- Page 44 REMKO LWM series Hydraulic diagram for heat pump assembly LWM Duo Mannheim Functions: Heating/cooling and hot water, operating mode: monoenergetic This hydraulic cycle diagram serves solely to assist in planning activities; the customer-provided hydraulic system on site must be planned and installed by the installation contractor! Außenfühler...
- Page 45 Hydraulic diagram for heat pump assembly LWM Mannheim Functions: Heating/cooling and hot water, operating mode: monoenergetic This hydraulic cycle diagram serves solely to assist in planning activities; the customer-provided hydraulic system on site must be planned and installed by the installation contractor! KWS 300 Fig.
-
Page 46: Emergency-Heat Operation
After activating the expert level by touching the REMKO logo, a password is required (the password is: "0321"). After confirmation, +/- symbols are displayed at the bottom. The password can be set by touching the +/- symbols. -
Page 47: Cooling With Room Temperature/Humidity Probe
The KPS series Dew point regulation via room temperature/ buffer tank can be supplied by REMKO for this. humidity probe If cooling via the surface heating is also required in... -
Page 48: Water Treatment
REMKO LWM series Water treatment Scope of application of VDI 2035: Domestic hot-water heating systems as per Oxygen always plays a role if metal materials in a DIN 4753 (sheet 1 only) heating system corrode. The pH value and the salt Water heating systems as per DIN EN 12828 content also play a major role. - Page 49 NOTICE! Heat pump systems and components from REMKO must be filled and operated with deionised water (completely desalinated). We also recommend the use of the complete heating protection unit available from us. Full protection with glycol should be used in cooling systems. The system water should be tested each time the plant is serviced, but at least once a year.
-
Page 50: Commissioning The Refrigeration System
REMKO LWM series Commissioning the Softened water refrigeration system The kinematic viscosity of water is ϑ= 1 mm /s (1 cSt) at 20 °C. If you use the pump to pump liquids Commissioning with a different viscosity, the max. pump pressure will be reduced. - Page 51 Function test of heating operating mode CAUTION! Open the on-site valves. Check all connections for leaks with suitable Danger of injury from refrigerant! leak detectors. If leaks are found, the faulty Refrigerant degreases the skin on contact and connection must be remedied. may cause cold burns.
-
Page 52: Electrical Wiring
The heating system is filled with DI water in accordance with VDI 2035. We recommend the addition of REMKO full heating protection (see You can find information on the electrical con- Ä Chapter 8 ‘Water treatment’ on page 48). -
Page 53: Commissioning
An intensive visual inspection is to be carried You can access the expert level by touching the out before the actual commissioning. REMKO logo in the upper right corner of the dis- Switch on the power supply. play. After entering the password (0321) using the Then the pre-installed data is loaded and the +/- combination and then touching the "Next"... -
Page 54: Care And Maintenance
REMKO LWM series Care and maintenance Temporary shutdown Regular care and maintenance assure fault-free The system may not be switched off at the mains operation and long service life for the heat pump power supply even if the heating system is not system. -
Page 55: Troubleshooting And Customer Service
Troubleshooting and customer service General troubleshooting The unit has been manufactured using state-of-the-art production methods and has been tested several times to ensure that it works properly. However, in the event that malfunctions should occur, the unit should be checked against the following list. Please inform your dealer if the unit is still not working correctly after all of the functional checks have been performed. -
Page 56: General View Of Unit And Spare Parts
REMKO LWM series General view of unit and spare parts 16.1 Exploded view of the unit LWM 80-150 Fig. 45: Exploded view drawing We reserve the right to modify the dimensions and design as part of the ongoing technical development... -
Page 57: Spare Parts Lwm 80-150
16.2 Spare parts LWM 80-150 No. Designation LWM 80-150 Fin vaporiser Plate heat exchanger Low pressure transducer Smart Serv heating element 7.5 kW Circulation pump Ultrasonic flow rate meter 4-way changeover valve High pressure switch High pressure transducer Compressor EEV coil On request by providing the serial number Electronic expansion valve Filter dryer... - Page 58 REMKO LWM series Spare parts not illustrated Designation LWM 80-150 Inverter (frequency converter) Wave-trap Hot gas sensor probe (inverter) Cooling cycle control board Inverter-control board control cable Pressure transducer control cable Temperature sensor On request by providing the serial number...
-
Page 59: General Terms
General terms Energy supply company switching Certain energy supply companies offer special tar- All-in-one unit iffs for the operation of heat pumps. Design in which all refrigeration components are installed in one housing. No refrigeration work has to be carried out. When switching off the power supply compa- Annual power input factor nies only on the barrier is in contact only... - Page 60 REMKO LWM series Limit temperature / bivalence point Seasonal performance factor Outdoor temperature where the secondary heating The seasonal performance factor relates to the appliance cuts in under bivalent operation. ratio of heat content delivered by the heat pump system to the supplied electrical energy in one year.
-
Page 61: Index
Index Adding refrigerant ..... . . 51 Passive cooling ......34 Air change coefficient . - Page 62 REMKO LWM series...
- Page 64 REMKO QUALITY WITH SYSTEMS Air-Conditioning | Heating | New Energies Telephone +49 (0) 5232 606-0 REMKO GmbH & Co. KG Hotline within Germany +49 (0) 5232 606-0 Klima- und Wärmetechnik Telefax +49 (0) 5232 606-260 Im Seelenkamp 12 E-mail info@remko.de...
