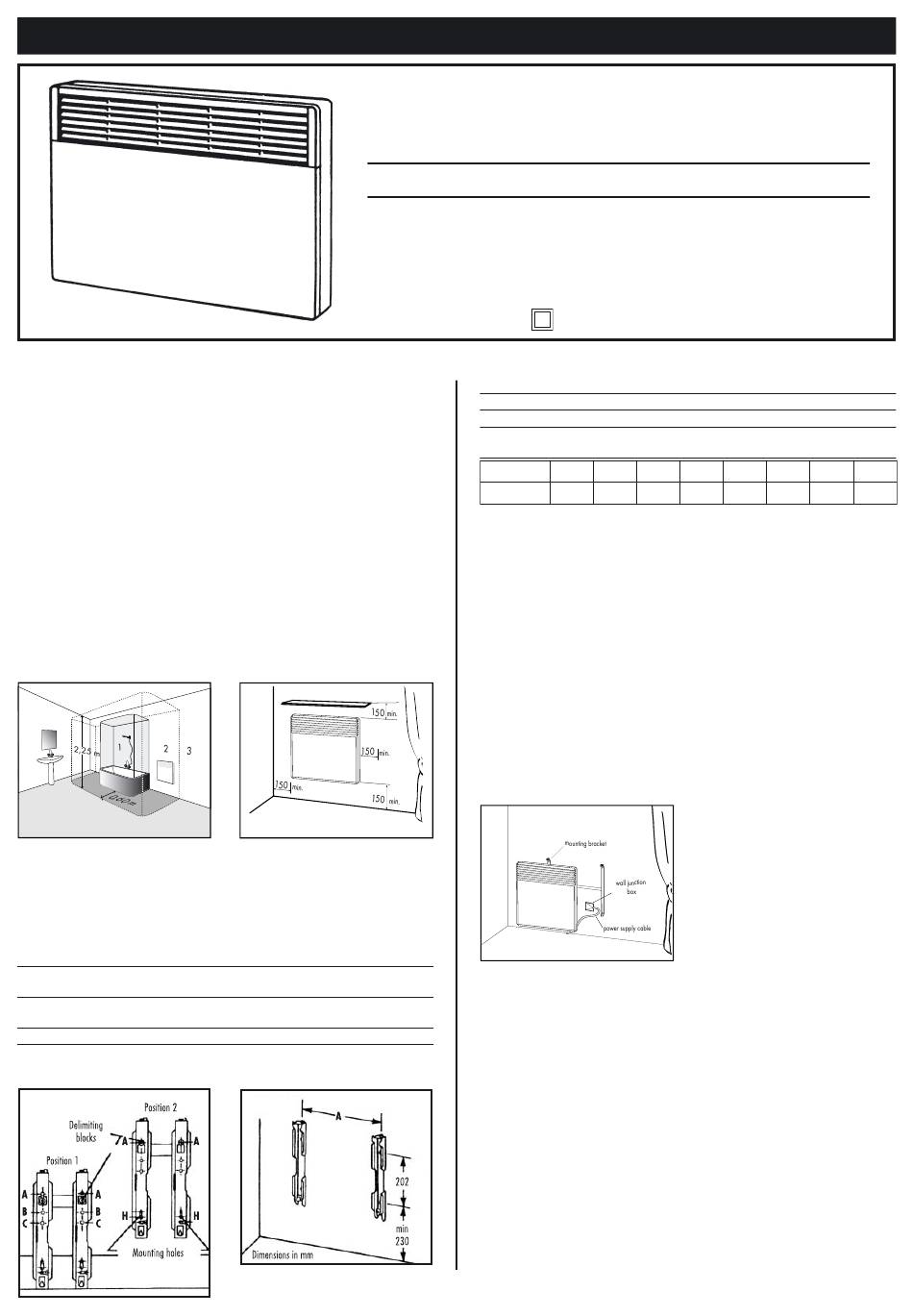

Installation instructions

Installation, electrical connection and first use should only be performed by a
qualified person as per Notice 50/78 Coll., §§ 6–8.
Distances
The distance from the lower edge of appliance to the floor should not be less than
15 cm. There should also be a distance of 15 cm at the sides, e.g. to furniture and
above. To ensure the correct operation of the convector it is necessary to observe
the distances mentioned in Fig. 2. In bathrooms, the convector must be installed in
compliance with the standard ČSN 33 2000-7-701 and may be installed in zones
2 and 3 in accordance with Fig. 1.
The convector is class II equipment and is splash water protected, IP24.
The convector should not be placed directly under a fixed connection socket.
The electric installation must be equipped with a double pole switching device with
a control gap opening of at least 3 mm.
Fig. 1
Installation
The convector is supplied in a package together with a mounting bracket. Fix the
mounting bracket to the wall as follows (Fig. 3):
• Place the mounting bracket vertically on the wall so that it touches the floor
(pos. 1).
• Mark hole B on the wall (left vertical bracket part), drill the hole and insert a
dowel. Make the same for hole C (right vertical bracket part), or vice versa.
• Move the mounting bracket upwards so that holes H of the right and left
vertical bracket parts get on the level of drilled holes.
• Insert and screw fixing screws in dowels and block them in holes H.
Fig. 3
RETAIN THIS USER'S GUIDE
dimensions in mm Fig. 2
Fig. 4
ECOFLEX SL
INSTALLATION AND OPERATING INSTRUCTIONS
Read carefully before every operation
Wall Electric Convector Heater
Reference: CCF/MLF
IP 24 230 V
• Mark both A holes on the wall, drill the holes and insert dowels.
• Bend limiting blocks upwards.
• Insert and screw fixing screws in holes A.
• Tighten all screws after you have made sure that the mounting bracket is
fixed straight (pos. 2).
O t u u p ( t W ) 5 0 0 7 5 0
A m ( ) m 1 3 1 5 , 9 1 3 5 ,
Electric installation
The convector is equipped with a three-conductor power supply cable (A05VVF)
Power supply — 1/N 230 V / 50 Hz
Colour indication of wires:
Phase — brown
Neutral — blue
Pilot wire — black
The power supply cable is connected to the wall junction box (see Fig. 5). If not
used, the pilot wire must be connected to a potential free terminal in the wall junction
box.
In case of damage, the power supply cable must be replaced by manufacturer, its
service technician or another qualified person to prevent any hazard.
Fig. 5
Connection of pilot wire
Connection of phase to the pilot wire across a timing logic element (e.g. Monotron
200, Programer 2) reduces temperature by approx. 4 °C as against the comfort
temperature set on the convector thermostat.
N116/R05(11. 01. 07)
~
1 0 0 0 2 1 5 0 5 1 0 0 7 1 5 0
2 7 3 5 , 3 5 3 5 , 4 3 3 5 , 5 9 3 5 ,
2 0 0 0 2 5 0 0
6 7 3 5 , 8 3 3 4 ,
