3. Choose mounting system for amplifier
(only vehicles without on-board monitor radio)
Retrofit/Installation Kit no. 82 83 0 022 122
Installation Instructions no. 01 29 0 022 772
40
F 46 0716 B
40
F 46 0717 B
Date: 04.2000

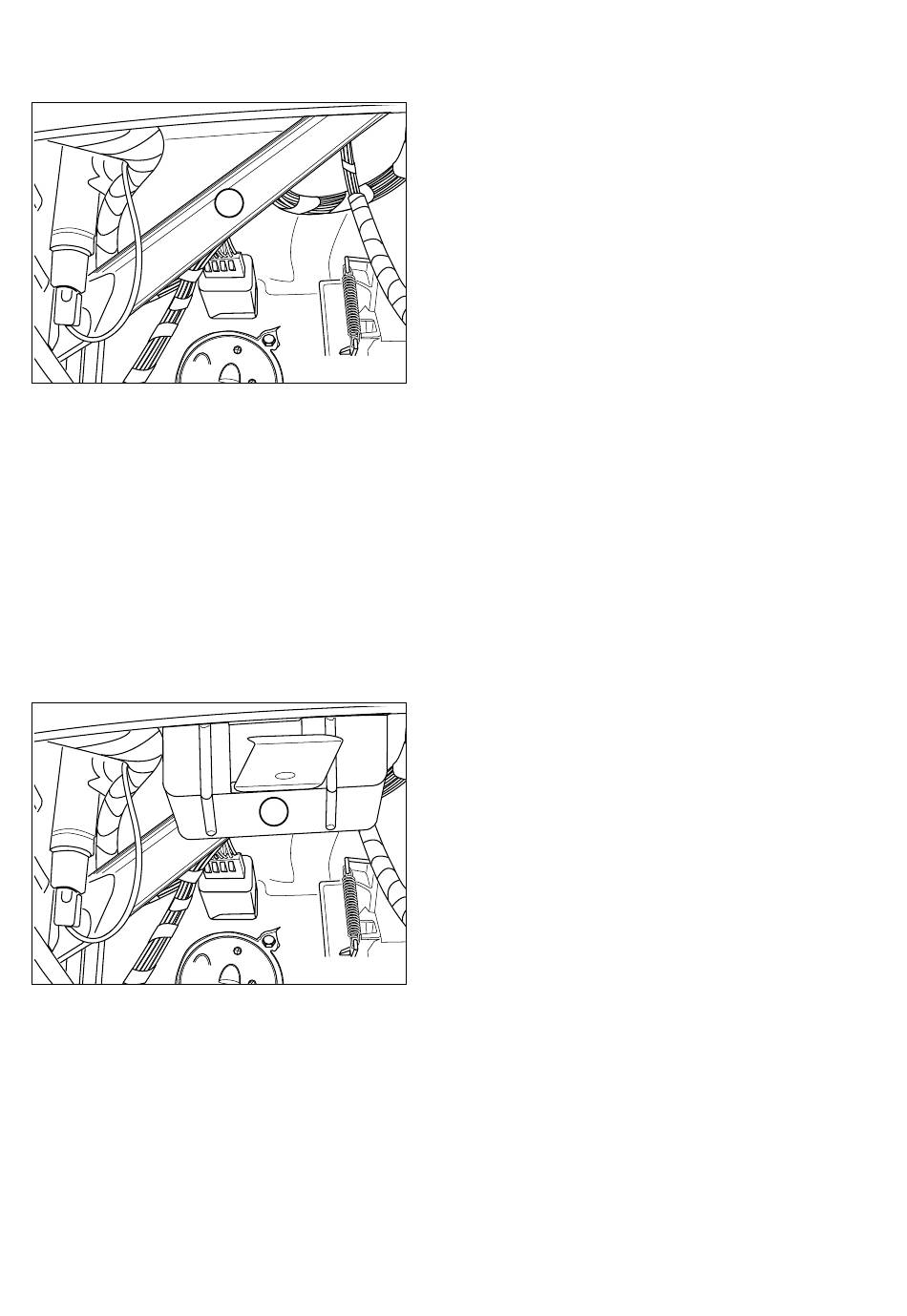

Illustration shows driver's footwell with view
through the opening of the storage compartment
on the left by the side of the steering column.
If, at the installation location of the amplifier the
cross brace (40) is fitted, you will have to
proceed with the installation of the amplifier and
supplementary wiring harness as described in
the following Chapters 4 and 5.
Chapter 4. Install amplifier and supplementary
wiring harness (mounting system at cross brace,
only vehicles without on-board monitor radio with
battery in the engine compartment )
Chapter 5. Install amplifier and supplementary
wiring harness (mounting system at cross brace,
only vehicles without on-board monitor radio with
battery in the boot)
Illustration shows driver's footwell with view
through the opening of the storage compartment
on the left by the side of the steering column.
If, at the installation location of the amplifier the
bracket at the I beam (40) is fitted, you will have
to proceed with the installation of the amplifier
and supplementary wiring harness as described
in the following Chapters 6 and 7 .
Chapter 6. Install amplifier and supplementary
wiring harness (mounting system at I beam, only
vehicles without on-board monitor radio with
battery in the engine compartment )
Chapter 7 . Install amplifier and supplementary
wiring harness (mounting system at I beam, only
vehicles without on-board monitor radio with
battery in the boot)
EN/35
