8. Install amplifier and supplementary wiring harness
(only vehicles with on-board monitor radio and battery in the engine compartment)
40
42
40
43
16
42
41
40
17
16
Retrofit/Installation Kit no. 82 83 0 022 122
Installation Instructions no. 01 29 0 022 772
41
F 46 0752 B
41
16
F 46 0753 B
16
8
F 46 0754 B
Date: 04.2000

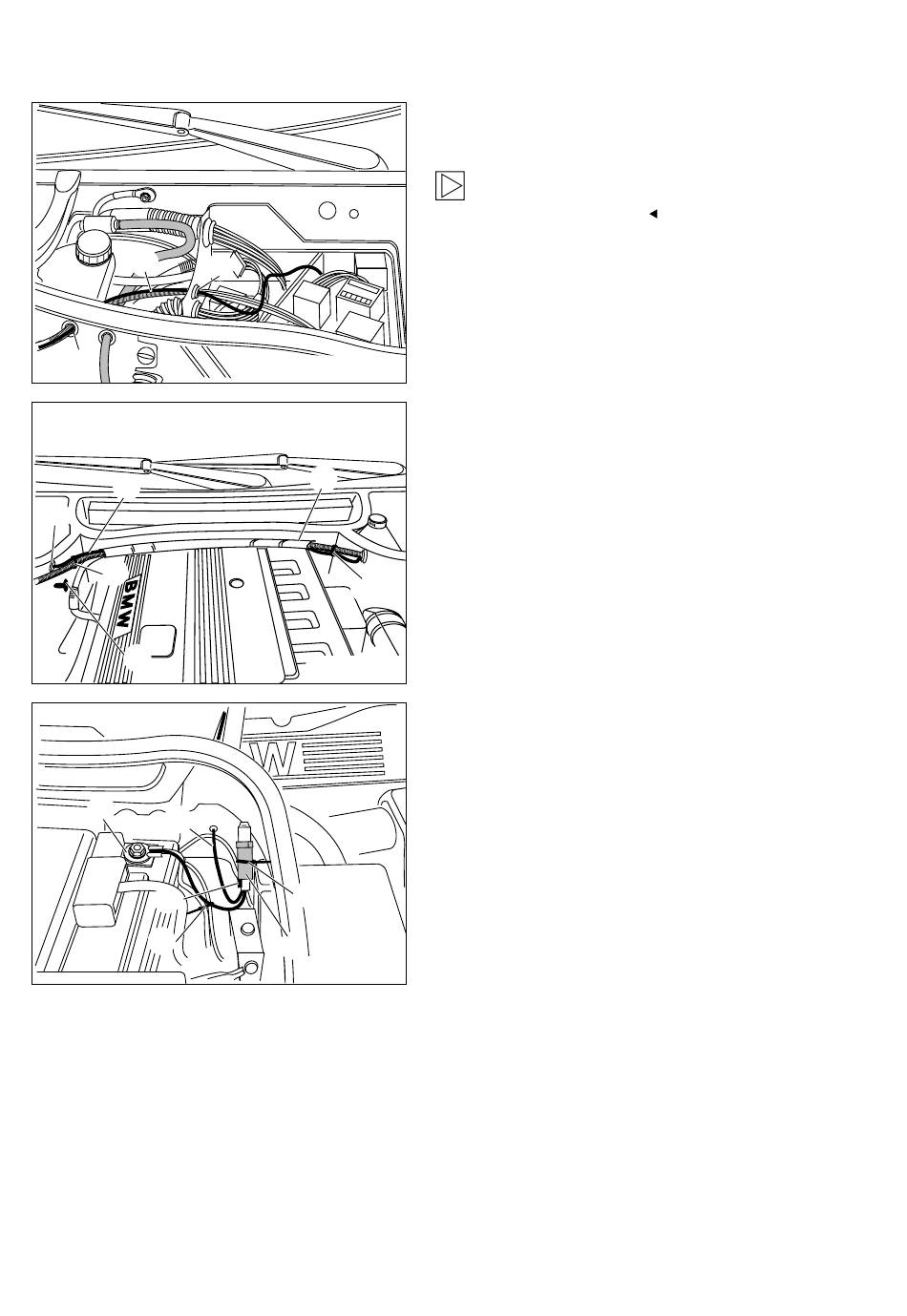

Push power cable (40), cable colour red, carefully
through rubber sleeve (41) and then through
rubber grommet (42).
Seal rubber grommet (41) at the engine side
with sealing compound.
Install power cable (40), cable colour red, under
the cable guide (41) from the left-hand side of
the vehicle to the right-hand side of the vehicle
and fasten it with cable straps (16).
Remove securing plug (42) from plastic
expanding rivet (43) and insert power cable (40),
cable colour red.
Install power cable (40), cable colour red, to
connection point and cut off excessive length.
Crimp on blade terminal contact (17) to the
power cable (40) and insert at the supply line
with fuse (8).
Screw cable lug ø8mm (41) coming from the
supply line with fuse (8) to the positive terminal
of the battery.
Then fasten supply line with fuse (8) and power
cable (40) with cable straps (16).
