Installation instructions
Heat pump dryer
One-family household
For Service and Spare Part Information please contact: V-ZUG AUSTRALIA Pty. Ltd. Tel +61 7 3209 6822
The appliance should be installed by qualified personnel only.
Each step must be carried out and checked in full in the order specified.
Validity
The installation instructions apply to the models: 12011–12013

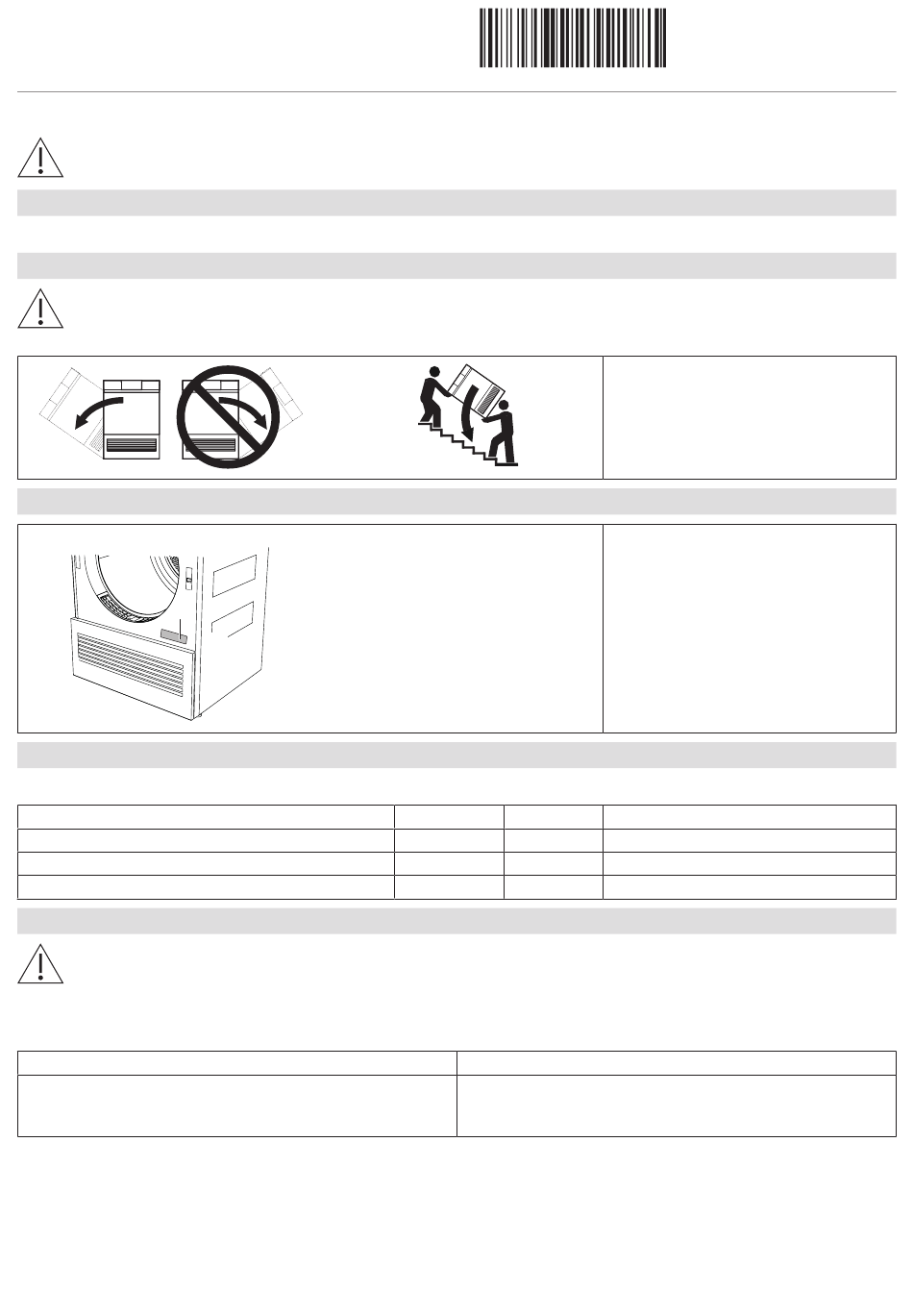

Transport
Transport the appliance in an upright position only! Transporting it in any other position will result in damage to the
appliance! When carried carefully without being shaken, the appliance may be tilted a maximum of 90° to the left
(viewed from the front).
Identification plate
1
Supplied installation accessories
The necessary installation accessories are located in the washing drum and in the appliance packaging.
Designation
Installation plate (incl. double-sided adhesive tape)
Tower panel
Condensate drain set (incl. screw material)
Room conditions/Ventilation
Keep all ventilation slits on the appliance clear and unobstructed. Otherwise an adequate supply of air is not guaran-
teed.
▸
Ventilate the room well. Ensure that the temperature of the room is between 5–35 °C.
▸
The room temperature must be kept between the range of 15–25 °C to ensure the economic running of the appliance.
Room size <10 m² (<20 m³)
▸
Room must be ventilated: There must be air inlet and outlet
openings to the adjacent room or to the outside, e.g. open win-
dow, ventilation grille or slits in the door, ventilation system.
1068340-R02
Article no. Number
W40653 1
W55687 1
W56298 1
Room size ≥10 m² (≥20 m³)
▸
Condensation may form on thermal bridges! The room must
therefore be aired after running several consecutive drying pro-
grammes, e.g. by opening a window or door to the room.
1
1068340-R02
22/05/2019
▸
Open the appliance door.
– The identification plate 1 is located
bottom right.
See installation step
2. Positioning the installation plate
2. Positioning the installation plate
6. Connecting condensate drain
