La Marche ESCR Quick Start Manual

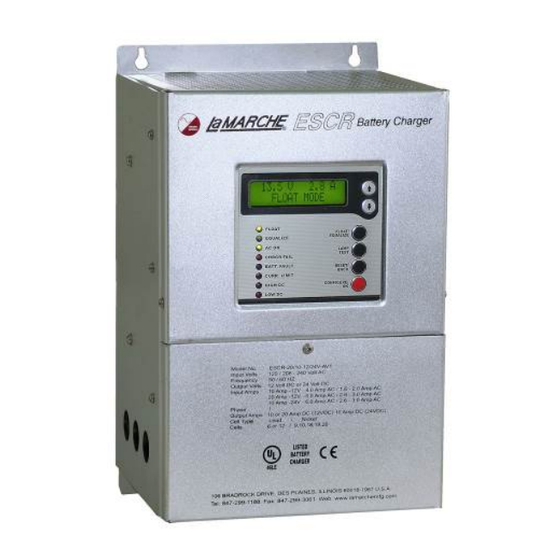

La Marche ESCR Engine Starting Battery Charger:
WARNING: Please read the Important Safety Instructions before proceeding.
Make Sure to check for any shipping damages before getting started.

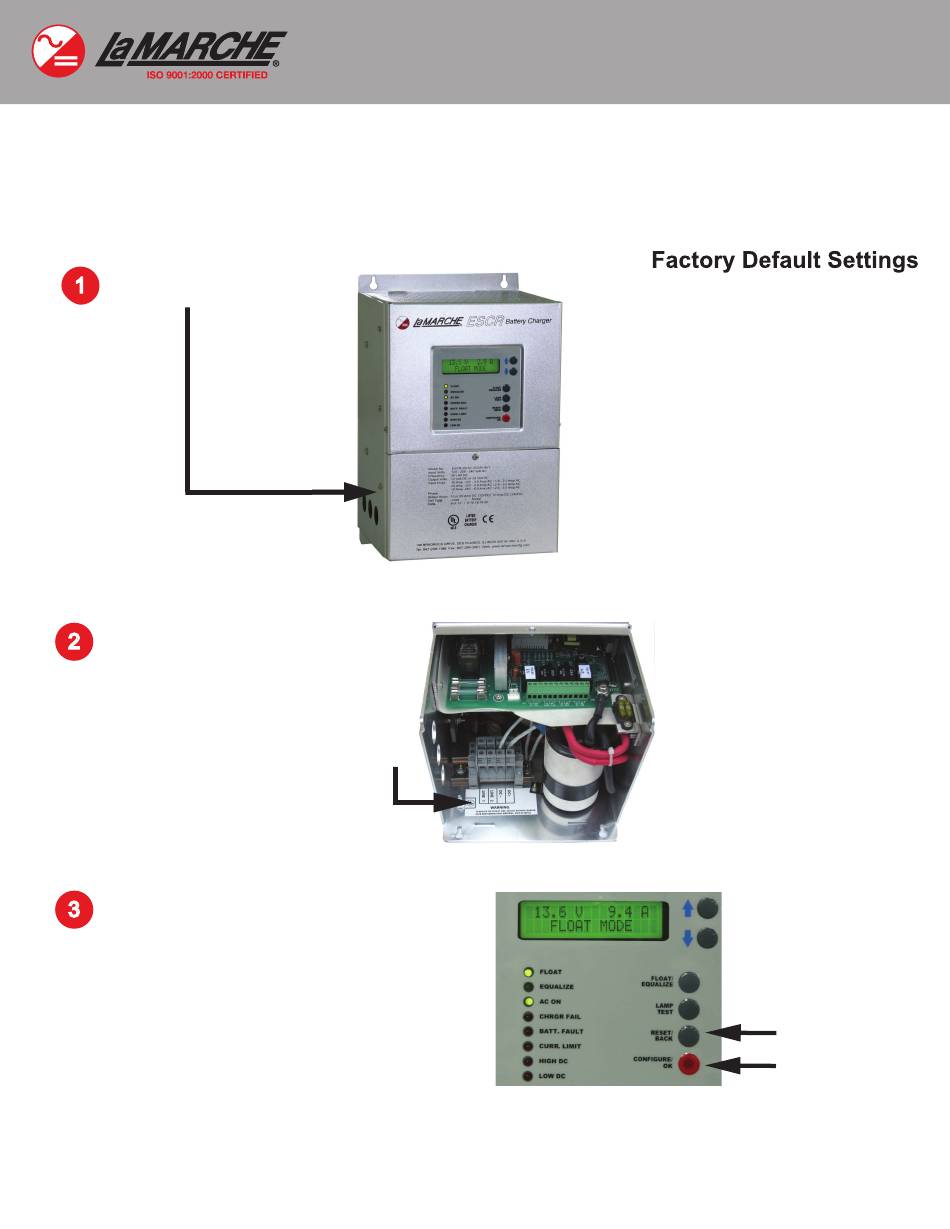

1 Remove Bottom Panel
1
2
Connect AC 120/208-240. Te
unit automatically detects the
AC input without changing any
taps or switches. Battery does
not need to be connected
during configuration mode.
To change setting, you must enter the
3
configuration mode by pressing the
CONFIG/OK red button located on the
front panel. The unit does not supply
output in the configuration mode.
Units are factory set at 12 Volt.
Quick Start Guide

Getting started

ESCR-20/10-12/24V-AV1
ESCR-40/20-12/24V-AV1:
.
Cell Type
6 Lead Acid
.
Float Voltage
2.25 Volts per Cell
.
Equalize Voltage
2.33 Volts per Cell
.
Equalize Timer
8hr - Equalize Timer
Manual - Equalize Cycle
.
Current Limit
105%
.
Temperature Compensation
Disabled
.
Alarm Setting
Alarm Delay - 5 Sec
Low VDC - 1.98 VDC
High VDC - 2.45 VDC
.
Low DC Current - 0.5 Amps
AC Failure
Reset Button
OK Button
