- Page 1 GEZE GB Installation and Commissioning Instructions with Terminal Diagram SECULOGIC Brief instructions TZ300 Emergency Exit System Door Control Unit...
-
Page 2: Table Of Contents

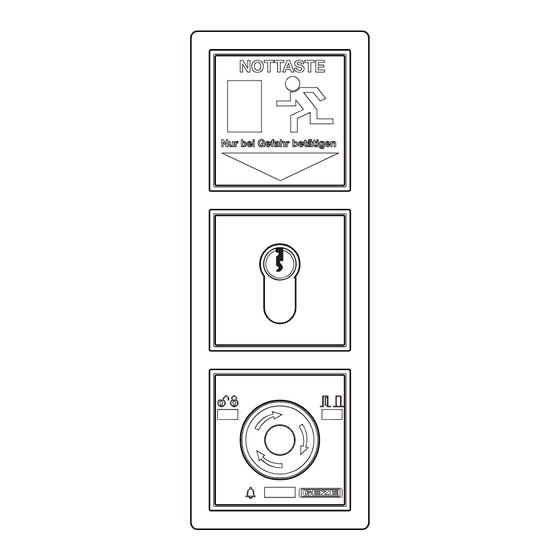

These instructions describe the installation and commissioning of the GEZE TZ300 door control unit. Product description The GEZE door control unit is part of the SecuLogic emergency exit system. It is designed for controlling and monitoring electrically interlocked emergency exit doors. The GEZE door control unit reliably secures doors along emergency exit routes against unauthorized access. -
Page 3: Key To Symbols
In addition, GEZE recommends a monthly inspection of the emergency exit system for visible damage and faults by the owner. Any identified damage or faults must be rectified immediately by a GEZE service techni- cian or a GEZE-authorized service provider. -
Page 4: Installation And Assembly
Installation and assembly SECULOGIC TZ320 Installation and assembly WARNING! Risk of death through electric shock. Installation must be performed only by GEZE-approved specialist personnel. Check that all cables are voltage-free before installation. Preconditions Cables are routed according to GEZE cabling diagram à... - Page 5 SECULOGIC TZ320 Installation and assembly Fit the terminal blocks to the back of the door control unit. Fit the door control unit. Fit the green adhesive frame. Test the unit’s function.
-
Page 6: Fitting The Surface-Mounted Door Control Unit
Installation and assembly SECULOGIC TZ320 Fitting the surface-mounted door control unit Open the housing. Fit the wall-mounting bracket near the door (height of emergency button: 850 mm – 1200 mm from floor surface). Take off the mains connection cover. Connect the 230 V cable to the screw terminals of the PSU and refit the cover. Connect cable to terminal blocks according to terminal diagram. -
Page 7: Replacing The Lock Cylinder
SECULOGIC TZ320 Installation and assembly Hook in housing and secure with screws. Fit the cover of the emergency button. Test the unit’s function. Apply the labels “EMERGENCY” and “Press only in emergency” in the required language on the provided fields on the emergency exit sign. The required adhesive labels are supplied separately in English, French, German and Norwegian. -
Page 8: Commissioning
Commissioning SECULOGIC TZ320 Commissioning Preconditions Doors with electrical locks along escape routes must be taken into operation after the manufacturer has certified their suitability for the intended purpose. In addition, the correct installation and correct function of the electri- cal lock must be verified by a specialist. Settings No settings can be made or changed on the door control unit. -
Page 9: Operation
SECULOGIC TZ320 Operation Operation “Locked” LED Door state LED Alarm LED emergency button Indicator Colour Meaning Locked Green Unlocked Green flashing (every second) Temporary unlocking Door closed Green Door open Yellow Alarm Yellow flashing (every second) Pre-alarm Yellow flashing Fault Controlling door control unit TZ300 with the key switch Unlocking the door When the system is unlocked, the locking elements are disabled and the door can be opened. -
Page 10: Opening Doors In Emergencies And Triggering The Alarm
Operation SECULOGIC TZ320 Opening doors in emergencies and triggering the alarm When the emergency button is pressed the door’s locking elements are de-energized and the door can be opened (direct unlocking). Press the emergency button. LED 1 lights up green and LED 3 lights up yellow. The door is unlocked. à... -
Page 11: Alarm Signal
SECULOGIC TZ320 Alarm signal Misuse of the system and emergency situations are indicated by a built-in buzzer and yellow alarm LED 3. Alarm Alarm LED Alarm bell Pre-alarm Yellow flashing light Acoustic signal, 2 beeps (1 s on, 1 s off) Door alarm Yellow continuous light Acoustic signal, 2 seconds continuous... -
Page 12: Terminal Diagram
When connecting a BMA, GMA or RWA, remove the resistor and connect it in series with the NC contact of the BMA, GMA or RWA (see plan “Emergency unlocking through BMA, GMA or RWA”). Contact closed when door closed. When a GEZE alarm bell or siren is fitted, a jumper must be set. - Page 13 SECULOGIC TZ320 Terminal diagram 6. 1 .3 Door control unit TZ300S, TZ300SN blue...
-
Page 14: Key Switch
Terminal diagram SECULOGIC TZ320 6. 1 .4 Emergency unlocking through BMA, GMA or RWA If a BMA, GMA or RWA system is connected, the 2K resistor fitted to terminals 2 and 10 of the TZ300 must be removed and con- nected in series with the NC contact of the triggering device.The alarm automatically resets after 60 seconds when its cause has been removed (contact closed again). -
Page 15: Appendix
SECULOGIC TZ320 Appendix Appendix Commissioning check list 7. 1 Not fitted Power supply OK Upper edge of all emergency buttons between 850 and 1200 mm from floor surface All emergency button labels applied Cables laid according to DIN VDE 0833, tamper-protected All screws of magnet mounting tightened Rubber buffers on screws of magnetic disc OK Magnet surfaces cleaned... - Page 16 E-Mail: office-bulgaria@geze.com GEZE GmbH Høje Taastrup Boulevard 53 E-Mail: office-india@geze.com China Niederlassung West 2630 Taastrup Nordsternstraße 65 GEZE Industries (Tianjin) Co., Ltd. Italy Tel. +45(0)46-323324 45329 Essen Shuangchenzhong Road GEZE Italia Srl Fax +45(0)46-323326 Tel. +49 (0) 201-83082-0 Beichen Economic Development Via Giotto, 4 E-Mail: danmark.se@geze.com...
