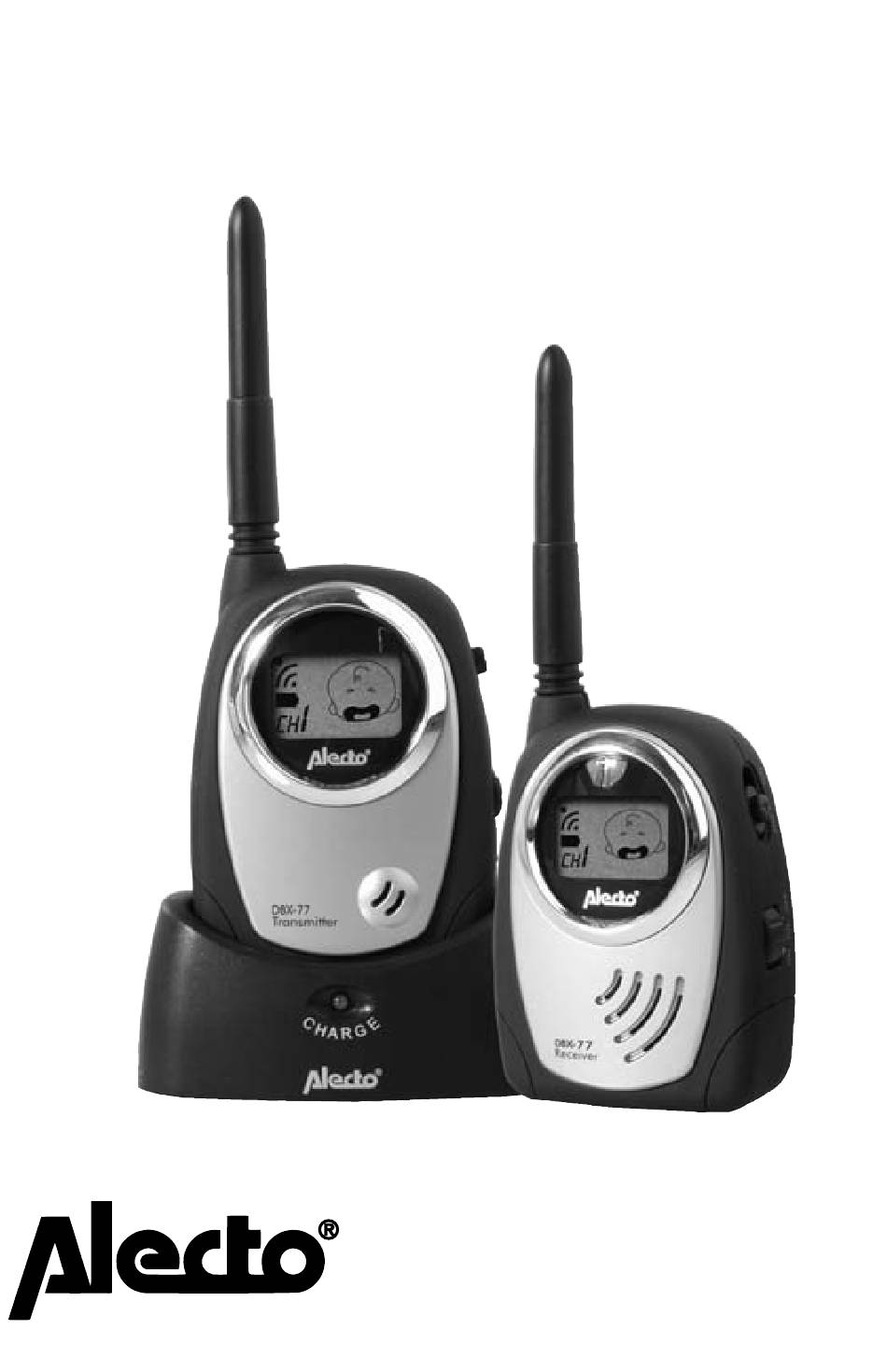

  • Page 1 INSTRUCTION MANUAL DBX-77...

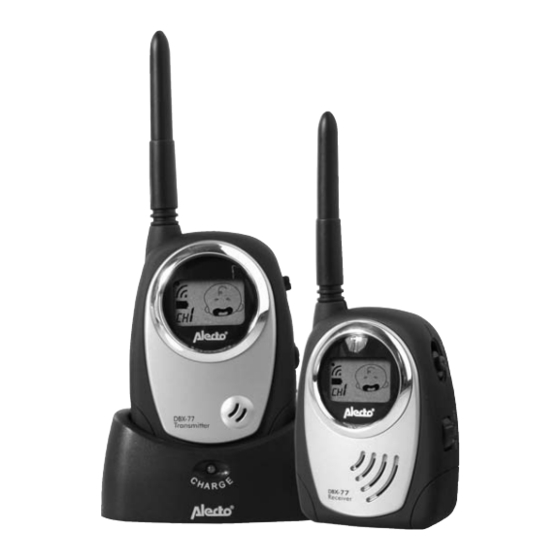

  • Page 2 INTRODUCTION Thank you for purchasing our DBX-77 baby monitor. Your unit has been manufactured and checked under the strictest possible quality control to ensure that each monitor leaves the factory in perfect condition. If in the unlikely event you find any defects or have any problem, please contact your dealer, our branch or service center.
  • Page 3 POWER SUPPLY TRANSMITTER 1. Operation from battery pack Slide open the battery cover. Insert the supplied rechargeable NiMH battery pack into the compartment. Make sure the two springs are in contact with the two polarities of the battery pack. 2. Operation from house current using charger stand Connect the output plug of the supplied 7.5V AC adapter to the DC jack of the charger stand, make sure the polarity is correct.
  • Page 4 CONTROLS LAYOUT 1. Antenna 2. Power/Channel Selector 3. Microphone Sensitivity Knob 4. Microphone 5. DC Jack 6. Channel Selector 7. Volume Control with Power Switch 8. Speaker Transmitter Receiver 9. Digital Code Dip Switch 10. Battery Contact Spring Transmitter & receiver 11.
  • Page 5 OPERATION TRANSMITTER 1. Place the transmitter about one meter away from the crib with the microphone facing towards the baby. 2. Using the power/channel selector switch on the unit to either Channel 1 or 2. The LCD will show the baby sleeping icon. If the batteries become run down, the low battery icon will start blinking in the LCD.
  • Page 6 - Disconnect the AC adapter from the wall outlet when the monitor is not to be operated. - The DBX-77 is best performed within a temperature range of 5 C to 45 - Do not leave the monitor expose to direct sunlight for a long time or near any heat source, moisture and excessive dusty environment.
  • Page 7 TROUBLE SHOOTING GUIDE Transmitter has no transmission: Mic sensitivity is too low, adjust the Mic Sensitivity Knob to increase sensitivity. Battery has run down or AC adapter improperly connected, recharge battery using charger stand or check connection. Transmitter always on: The Mic Sensitivity Knob is turned fully counter clockwise, turn the Mic sensitivity Knob clockwise to set the transmitter to become voice activated.
  • Page 8 City: Telephone: You have a guarantee of 12 MONTHS after the date of purchase of this DBX-77. We guarantee during this period the free repair of defects caused by material- and construction faults. This at the importers discretion. It is only possible to claim to the guarantee when you enclose your purchase ticket with the defect DBX-77.
