USER'S MANUAL
DBX-83

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DBX-83 and is the answer not in the manual?

Questions and answers

Related Manuals for Alecto DBX-83

Summary of Contents for Alecto DBX-83

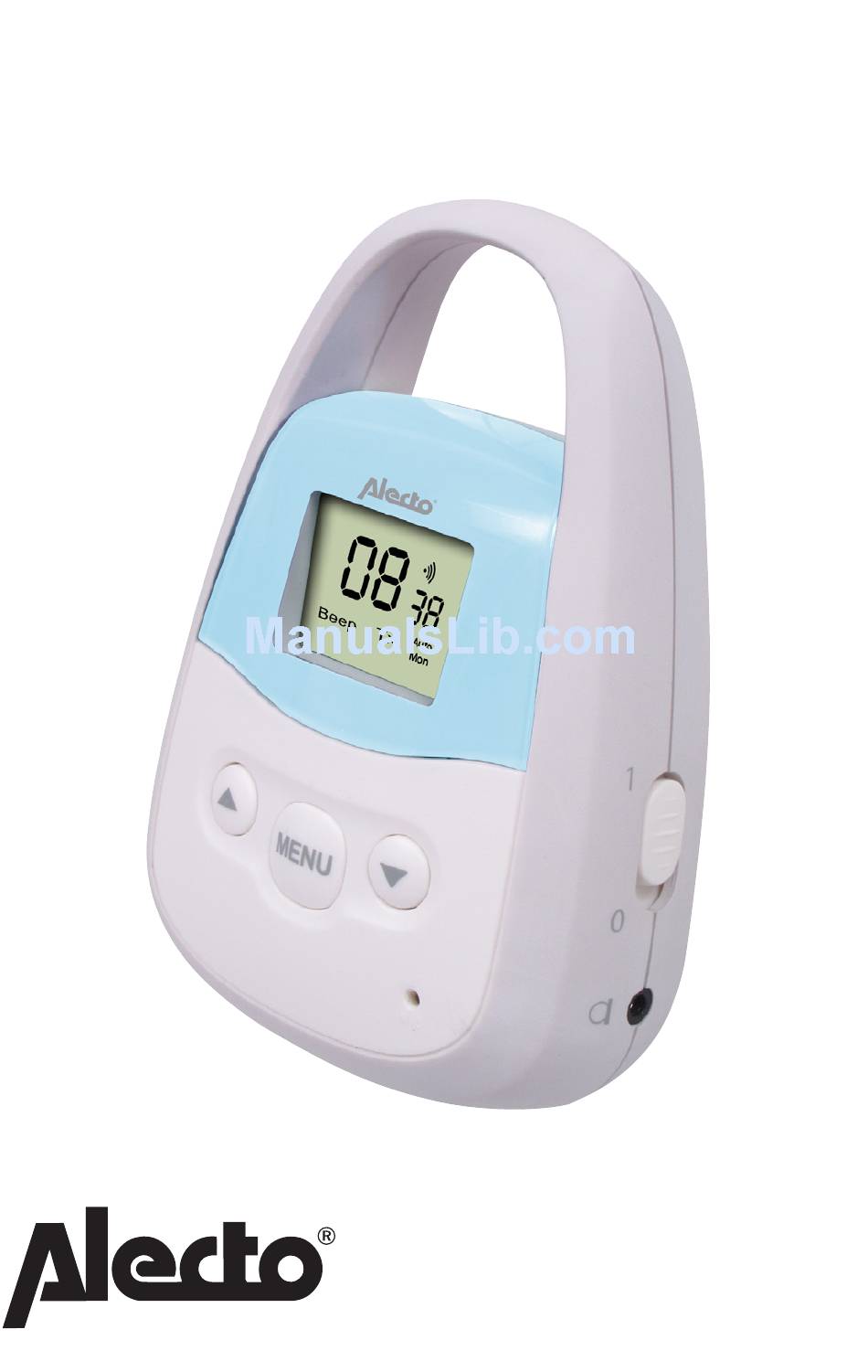

  • Page 1 USER’S MANUAL DBX-83...
  • Page 3 INTRODUCTION The DBX-83 is a sound-operated baby unit that functions according to the PMR-446 principle. As soon as the DBX-83 detects any sound, this will be transmitted on a frequency of 446 MHz. This signal can be received by the parent unit of the Alecto DBX-82 or by other (Alecto) PMR-446 baby monitors.

  • Page 4: Function Overview

    FUNCTION OVERVIEW Display Sensitivity control (rear) Power switch Setup buttons Built-in microphone External Function microphone button input DISPLAY OVERVIEW illuminates when channel number the ‘attention tone’ is enabled illuminates when the connec- sub-channel tion control is number enabled illuminates when illuminates while the monitor func- transmitting...

  • Page 5: Installation

    INSTALLATION POWER SUPPLY: The baby unit is powered by the supplied, fixed power adaptor. Plug this connector into a 230V wall socket. POSITIONING: Place the baby unit in the baby room. We recommend you to maintain a distance of at least 2 meters between the baby and baby unit. Always make sure that the baby cannot reach the baby unit or adaptor cable.

  • Page 6: Additional Functions And Settings

    ADDITIONAL FUNCTIONS AND SETTINGS CHANGING THE TRANSMITTING CHANNEL: 1. press 1x the button; [CH] will appear following the channel MENU indication 2. press the button to select a different channel (1-8) 3. press the button to save the new channel MENU CHANGING THE SUB-CHANNEL (CTCSS): 1.

  • Page 7: Attention Tone

    MONITORING: You can set the baby unit to transmit for 5 seconds every 5 minutes, also when the baby unit is not detecting any sound. 1. press 4x the button; the words [AUTO MON] will appear MENU 2. press the button to enable this function ([ON] in the display) or press the button to disable this function ([OF] in the display)

  • Page 8: Placement Tips

    RADIO CONNECTION: * The DBX-83 is a transmitter working with radio waves on the 446 MHz band. Its signal transmission can be affected by external influences such as other radiophones, transmitters, wireless phones, etc.

  • Page 9: Service And Maintenance

    * The use of this baby unit is permitted in all the countries of the EU. If you want to bring the DBX-83 to countries outside the EU, you should consult the local restrictions on the use of PMR446 equipment.

  • Page 10: Troubleshooting

    TROUBLESHOOTING In case of any problems, always check first whether the DBX-83 does work correctly on a different location. When suspecting a fault, always verify the correct operation and settings of your babyphone as well. No function: - the adaptor of the baby unit is not connected to a wall socket or this...

  • Page 11: Warranty

    City: Tel: For the Alecto DBX-83 you have a warranty of 24 months from the date of purchase. During this period, we guarantee the free repair of defects caused by material and workmanship errors. All this subjected to the final assessment of the importer.
  • Page 12 Service Help Aziëlaan 12 ‘s-Hertogenbosch WWW.HESDO-SERVICE.NL INFO@HESDO-SERVICE.NL SERVICE@ALECTO.DE NL +31 (0) 73 6411 355 FR +32 (0) 3 238 5666 DE +49 (0) 180 503 0085 Service Aziëlaan 12 ‘s-Hertogenbosch WWW.HESDO-SERVICE.NL INFO@HESDO-SERVICE.NL Help SERVICE@ALECTO.DE NL +31 (0) 73 6411 355...
