Summary of Contents for EOS SteamTec Classic

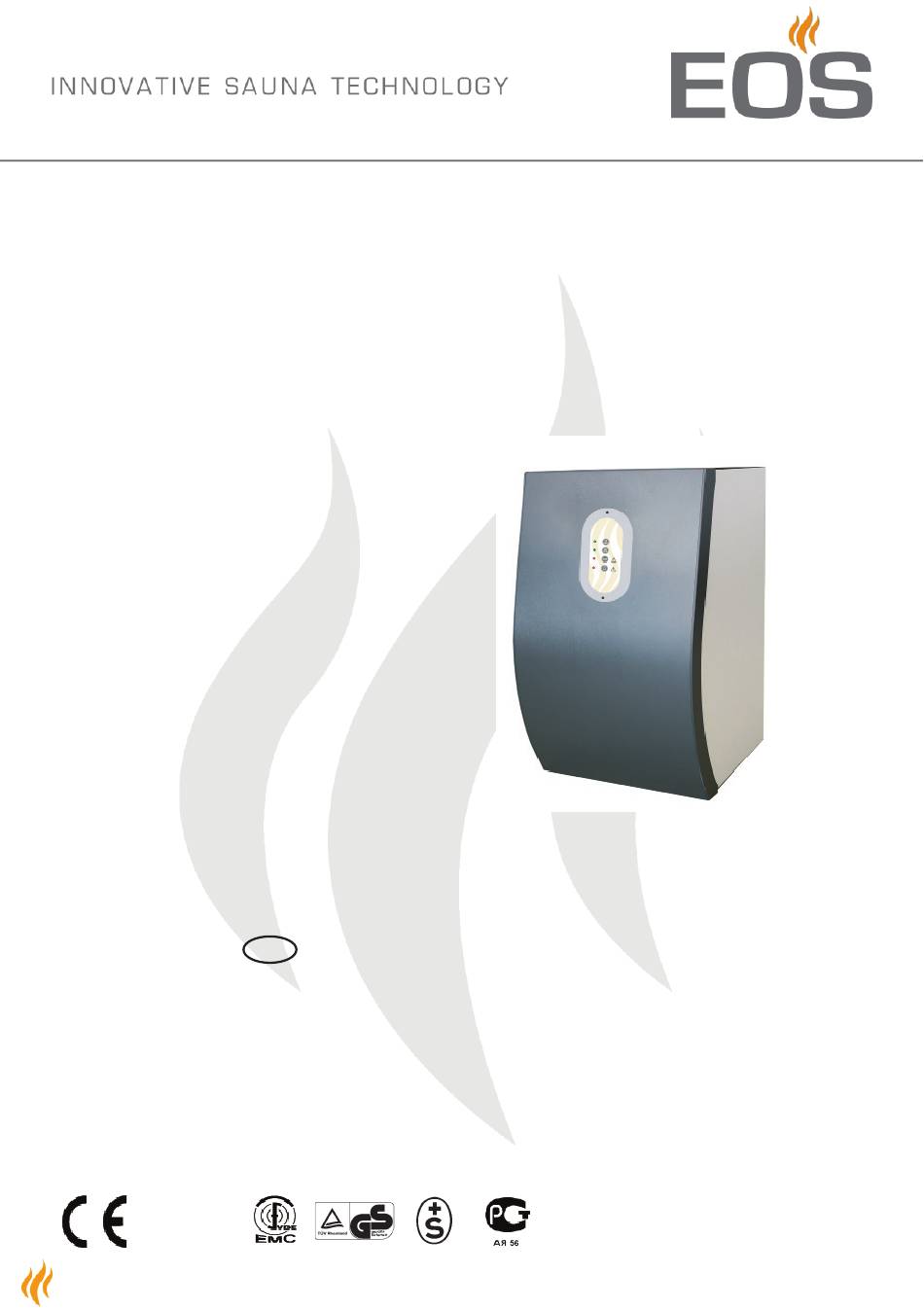

- Page 1 SteamTec Classic Assembly and operating instruction Made in Germany HD 7 IP x4 Druck Nr. 29343783en 40.12...
-
Page 2: Table Of Contents
English Table of Contents Plan .........................3 Technical specifications ..................5 1. Erecting the frame ....................5 1.1.Fresh water and dirty water .................5 1.2. Connection cables ..................6 1.3. The steam pipe ..................6 1.4. Aeration and ventilation ................6 2. Final assembly ....................7 2.1.Dismantling the steam generator hood ............7 2.2. -
Page 3: Plan
Plan... - Page 4 Steam generator Pressure re- lease valve C o n t r o l Steam pipe Fresh water supply pipe Magnet val- ve, flush Drain for descaling Supply tubes for es- sences and descaling Terminal block liquid Pressure Pressure lease exit pipe lease exit pipe Fresh water supply Steam output connec-...
-
Page 5: Technical Specifications
• After you have unpacked everything, please check carefully that no part of the steam generator is missing or damaged during transport. EOS does not accept any liability for any damage that has occurred in transit during storage. Delivery includes: 1. -
Page 6: Connection Cables
It is advisable to use the drilling template so 12 - 18 kW 410 mm 4,5-9 kW 340 mm that all the connections that are connected to the steam generator can be drawn through correctly. For the connection to the genera- tor you will require a cable that is about 0,5 m long. -
Page 7: Final Assembly
2. Final assembly 2.1.Dismantling the steam generator hood • Below the steam generator there are two 32 x 16mm screws that must be unscrewed from the hood. Make sure that the hood is connected to the steam generator through the cables to the display panel. -
Page 8: Terminal Diagram
Terminal diagram Saunaheater Powerunit Cabin light Ventilator 400 V 3N Main AC 50 Hz Descaling liquid level probe 400 V 3N Main AC 50 Hz... -
Page 9: Fitting The Hood For The Steam Generator
By further questions and technical queries please contact your local EOS dealer. 4. Operation The Steamtec Classic is controlled by the sauna control unit belonging to the sauna heater. More information can be found in the operating instructions for your sauna control unit. -
Page 10: Flushing And Decalcification
5 seconds (switch off fuses or FI switch). The device now works normally again. If the fault occurs again, have the device checked by your autho- rised EOS partner. 3. Flushing and decalcifi cation The development of lime scale deposits due to hard water in the tank and on the radia- tors reduces quite considerably the life of the heating rods. -
Page 11: Service Address
Service Address: Outside of Germany please contact your EOS Saunatechnik GmbH specialist dealer in case of warranty claims. Adolf-Weiß-Straße 43 Direct warranty processing with our service 35759 Driedorf-Mademühlen, Germany department is in this case not possible. -
Page 12: Handling Procedures For Return Shipments (Rma) - Details For All Returns
Handling procedures for return shipments (RMA) - Details for all returns ! Dear customer we hope that you will rejoice in the ordered articles. Just in case that you are not entirely contented as an exeption, please follow the procedures specifi ed below.This enabling us to ensure a quick and smooth handling of the return shipment.
