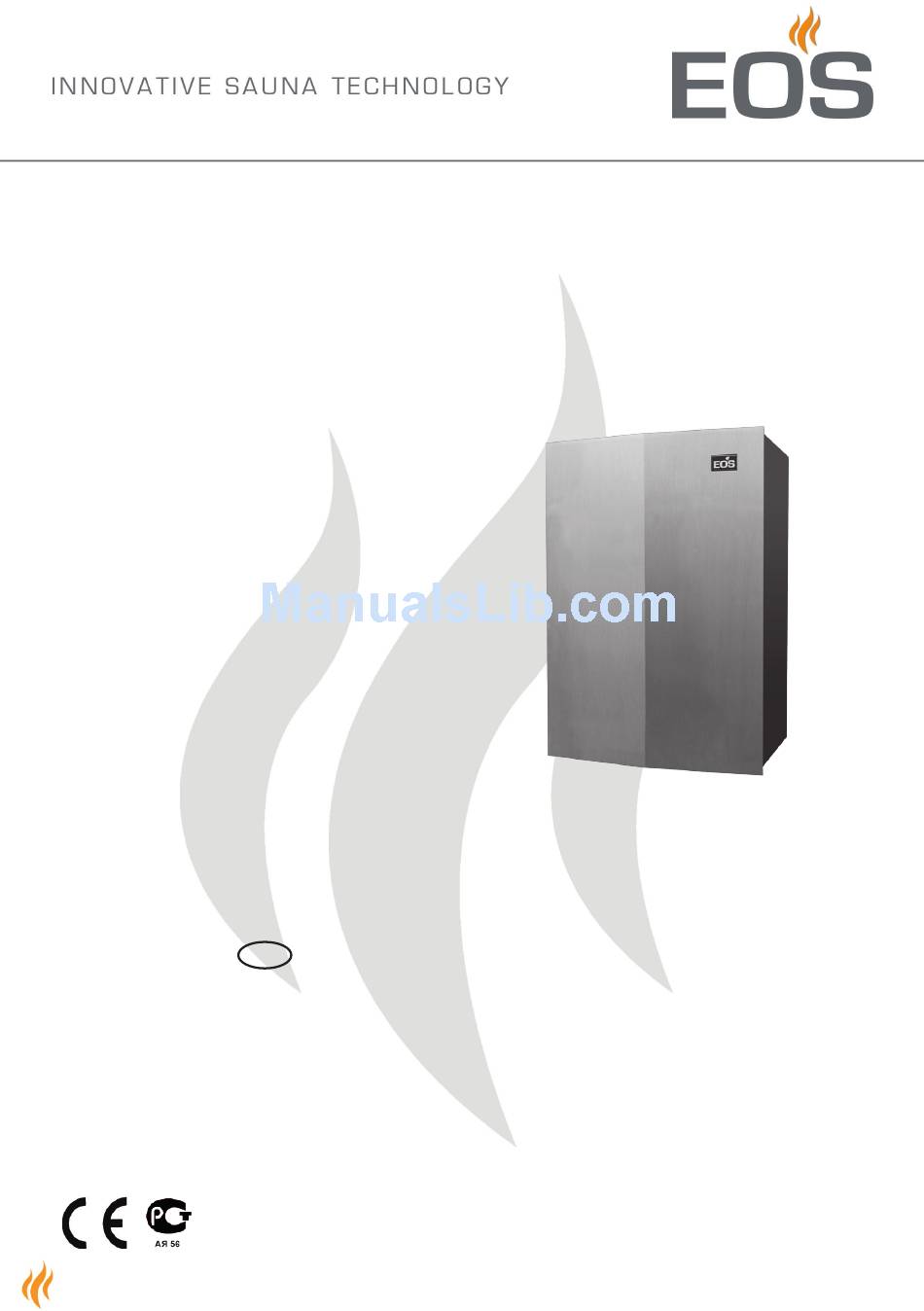

- Page 1 SteamTec II Basic steam generator Installation and operation manual Made in Germany print #29344696 / 36.16...
-
Page 2: Table Of Contents
Prerequisites on the installation site Mechanical installation Water supply and drain Steam pipe connection Electrical connection 6.1 Steamtec II Basic 18 kW terminals 6.2 Steamtec II Basic 9 kW terminals 6.3 Inner wiring diagrams 19-20 6.4 Connection to Emotouch II+ Steam 6.4 Connection to Emotouch II+ Sauna, Emotec H, Econ H... - Page 3 Introduction Dear customer Thank you very much for purchasing EOS sauna & steam equipment. You have purchased a mod- ern, technically advanced product which will provide you with years of reliable operation. EOS steam generators have been designed and tested to comply or exceed the currently applica- ble European safety norms and are produced in our factory in accordance with the quality man- agement norms DIN EN ISO 9001:2008.
-
Page 4: Manufacturer
Steam generator SteamTec II, Version „Basic“ 1.4 Intended use The Steamtec II Basic steam generator is intended for production of steam in steam rooms or sau- na rooms with humid operation. The Steamtec II Basic requires an external control unit which is not included in the scope of delivery. -
Page 5: Foreseeable Incorrect Use
1.5 Foreseeable incorrect use Following may be regarded as foreseeable incorrect use: • Steam room size does not match the steam generator power (incorrect power selection). • Operation without legally required safety and protection features. • Operation without proper knowledge of the safety advices (chapter 3). •... -
Page 6: Safety Advice
2. Safety advices DANGER Risk of fire and danger of electric shock. Risk of fire by incorrect installation. Make sure to have the steam generator installed only by an ap- • propriately qualified specialist according to the present instruc- tion manual. All electrical connections in the steam generator and other •... - Page 7 DANGER Risk of scalding. Hot steam may cause burns, scalding and dangerous to life injuries, if the steam generator has not been properly installed or is operated not as per its intended use. During planning and installation make sure, that the steam •...
- Page 8 WARNING Risk of burns through hot surfaces in the device. The steam generator has hot surfaces, e.g. pipelines, water tank, which may cause burns. Keep a secure distance to hot surfaces of the device. •...
-
Page 9: Specifications
Water level control Automatic with overheating protection Control system Steamtec II Basic - not included Steamtec II Classic/Premium - see control unit Essence dosing Steamtec II Basic - not included Steamtec II Classic Premium - integrated peri-... -
Page 10: Delivery Scope
4. Delivery scope Steamtec II Basic delivery includes: • Steamtec II Basic steam generator • Drilling template • 4 mounting screws 45 x 40 • 4 dowels M8 • 2-part brass union 1 1/4“ to 35 mm • 0,5 m steel braided water supply hose 500 mm 3/8“ to 3/4“... -
Page 11: Installation
5. Installation 5.1 Installation overview * for temperature sensor installation de- tails please refer to the corresponding installation manual of the control unit... - Page 12 5.2 Steamtec II Basic - construction overview Overpressure release valve top view with drain hose Water tank / water tank lid Water filling line (slow) Water filling line (fast) / pressurized water injection Descaler filling tube Water level probe Steam output pipe with...
- Page 13 Water tank Overheating protection and insulation jacket Terminal block with color coded terminals Main board Fuse switches 9 kW - F1/F2/F3 18 kW - F1/F2/F3/F4/F5/F6 Dual-way water inlet valve Peristaltic pump for clean- ing / descaling system Thermofuse with manual reset button Solenoid valve for main drain line, discharge open-...
-
Page 14: Mechanical Installation
5.4 Mechanical installation The Steamtec II Basic is a wall-hanging device. It is mounted to the wall with 4 screws. Please en- sure that the wall is able to carry the load of min. 45 kg. We recommend to allow certain reserve for safety. - Page 15 Drill 4 mounting holes in the wall as shown on the template below. If necessary use the appropriate dowels to securely mount the screws in the drilled holes. At first screw in the two upper screws. As shown on the pic. 2. please make sure to leave 3 mm gap between the screw head and the wall surface.
-
Page 16: Water Supply And Drain
5.5 Water supply and drain connection Important Notice: Please observe the EN 1717 / DIN 1988 and DIN 1986 / EN 12056 4 requirements. It must be ensured that the water may not flow back into the water supply system. If necessary the additional equipment has to be installed to prevent the back-flow. -
Page 17: Electrical Connection
For details please refer to the following connection diagrams. In order to facilitate the electric connections all connection terminals have the appropriate colour coding (e.g. blue for neutral, green for earth) and markings. 6.1 Steamtec II Basic 18 kW connec- tion terminals Terminal... -
Page 18: Steamtec Ii Basic 18 Kw Terminals
6.2 Steamtec II Basic 9 kW connection terminals Terminal Marking Description L1 phase - power supply L2 phase - power supply L3 phase - power supply Neutral line PE earth wire Neutral - control unit S1 - control unit Steam on from control unit... -
Page 19: Inner Wiring Diagrams
6.3 Steamtec II Basic inner wiring diagram Steamtec II Basic 9 kW... - Page 20 Steamtec II Basic 18 kW...
-
Page 21: Connection To Emotouch Ii+ Steam
6.4 Steamtec II Basic connection to EmoTouch II+ Steam Temperaturfühler Steamtec II Basic Temperature sensor 9,0 kW reserviert Emotouch II+ Steam / LSG Steam N A2 L1 L2 L3 N N N N PE PE N S1 Wb PE Sensorbus... -
Page 22: Connection To Emotouch Ii+ Sauna, Emotec H, Econ H
6.5 Steamtec II Basic connection to EmoTouch II+ Sauna, Emotec H, Econ H Steamtec II Basic 9,0 kW L1 L2 L3 N N N N PE PE N S1 Wb PE N A2 Emotec H / EmoTouch II+ / ECON H 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 Übrige Anschlüsse gemäß... - Page 23 6.6 Steamtec II Basic connection to Econ S2 Steamtec II Basic 9,0 kW L1 L2 L3 N N N N PE PE N S1 Wb PE N A2 ECON S2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 Übrige Anschlüsse gemäß...
- Page 24 6.6 Leakage current Please make sure to observe the DIN EN 60335-1:2012-10 norm in respect to the leakage current. This norm requires that the leakage current may not exceed the following limits at the normal operating temperature: “For stationary class I heating appliances - 0,75 mA or 0,75 mA per kW rated power input of the heating appliance with a maximum of 5 mA, whichever is higher.”...
-
Page 25: Cleaning System
7. Cleaning system 7.1 General information Steamtec II Basic steam generator is equipped with an automatic descaling and draining sys- tem. Included with the delivery is a 5 l container for cleaning liquid (cleaning liquid not includ- ed, optional accessory) with the level probe. -
Page 26: Setup And Operation Of The Cleaning System
7.2 Setup and operation of the cleaning system Steamtec II Basic steam generator features an integrated automatic descaling and draining system. This system will automatically descale the water tank at certain intervals. These intervals depend on the effective working time (heating time of heating elements) and the pre-set water hardness level. -
Page 27: Power Selection
8. Power selection Steamtec II Basic steam generator features adjustable power output, which allows to quickly set the required power output directly on site and to adjust it later if required. The power output selection is made by F-fuses (switches) on the main terminal rack of the steam generator. - Page 28 Possible power configurations: F1 fuse F2 fuse F3 fuse normal operation mode continuous steam mode X = ON 0 = OFF 9 kW 3 kW 6 kW 3 kW 3 kW 3 kW for 9 kW version F1 fuse F2 fuse F3 fuse F4 fuse F5 fuse...
-
Page 29: Operation Modes
Steamtec II Basic 9 kW). By Steamtec II Basic 18 kW it is possible to reduce the heating power dur- ing this phase to 6 or 3 kW by switching off fuses F2 and F3. By Steamtec II Basic 9 kW the basic power is always 3 kW only. - Page 30 Once the room temperature falls below the low hysteresis point an external switching signal will be normally given to Wb terminal and the steam generator will start heating will all enabled heating elements. For safety reasons if no external switching signal is given for 30 minutes the steam generator with completely stop (continuous steam production phase will stop).
-
Page 31: General Operation
10. General operation The Steamtec II Basic steam generator does not have an own on/off switch and remains always connected to power supply. The steam production is switched on or off from an external control unit (switching signal on input terminals Wb, S1 and N). An external control unit does not belong to the delivery scope of the steam generator and shall be purchased separately. -
Page 32: Maintenance And Servicing
Disconnect the steam generator from power before any mainte- • nance and servicing works. Make sure to observe servicing intervals as given below. • Request an assistance from EOS or an authorized EOS dealer by • any questions. Recommended servicing intervals •... -
Page 33: Troubleshooting
Remedy: Check the drain, make sure it is not blocked by scale and other deposits. If the drain is clean and motorized ball valve does not appear to function please contact your EOS dealer for assistance. The ball valve or the actuator may be faulty. -
Page 34: Disposal
Fault: No descaler liquid (pilot lamp flashing 3 times) Remedy: Replenish the descaler liquid container. Make sure to use the suitable type of descaler. Check the level probe for lose connection and verify it is connected properly. General fault: Overheating limiter fuses releases occasionally. Remedy: Increase the water filling level in the water tank by pulling the water level probe up to1 - 2 cm up. - Page 35 Service Address: EOS Saunatechnik GmbH Schneiderstriesch 1 35759 Driedorf, Germany Tel: +49 (0)2775 82-514 Fax: +49 (0)2775 82-431 servicecenter@eos-sauna.de www.eos-sauna.de Equipment commissioning date: Please keep this address in a safe place togeth- er with the installation guide. Stamp and signature of the authorized elec-...
-
Page 36: Warranty
General Terms and Conditions of Service shipments via parcel post. The manufacturer shall accept no liability for damage incurred as a result of improper I. Scope packaging in an individual shipment. Unless otherwise agreed in writing in a specific case, the- VI.
