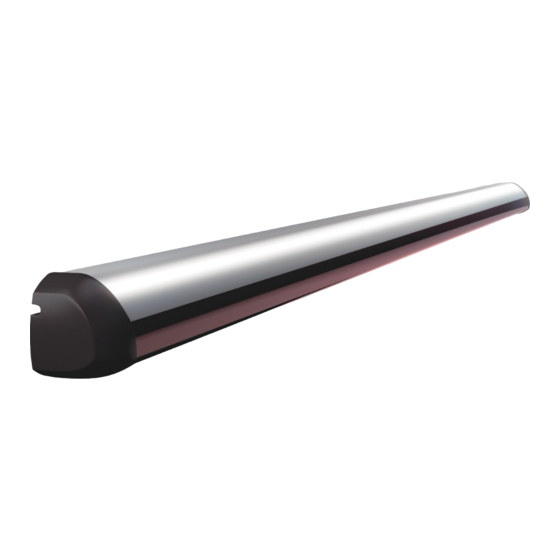

Presence sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

GC 338
152969-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GC 338 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GEZE GC 338

Summary of Contents for GEZE GC 338

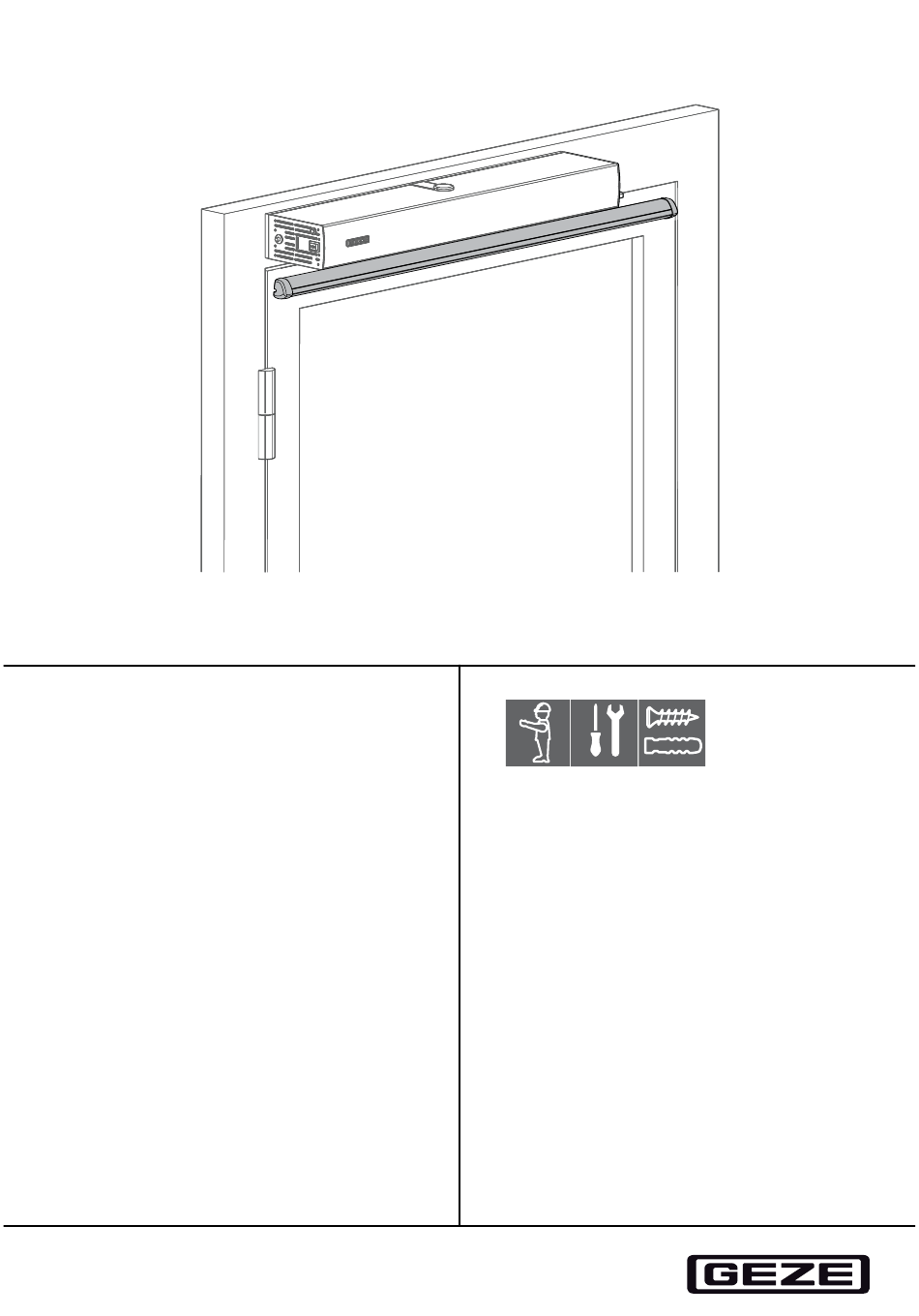

  • Page 1 GC 338 152969-02...

  • Page 2: Table Of Contents

    GC 338 Presence sensor Original operating instructions for device version V.03 Contents Symbols and illustrations ..............................3 Abbreviations ..................................3 Product liability..................................3 Safety ..................................3 Intended use ........................................3 Safety notices ........................................3 Safety conscious working .....................................4 Environmentally conscious working .................................4 Validity ..................................4 Description ................................4 Supplied by GEZE ......................................5...

  • Page 3: Symbols And Illustrations

    Safety Intended use The presence sensor GC 338 may only be used to protect swing leaf and revolving swing doors with GEZE drives. The minimum object size is 20 x 30 x 70 cm (reference object CA according to EN 16005 upright). The sensor can be used to secure swing leaf and revolving doors against impact and trapping of the human body.

  • Page 4: Safety Conscious Working

    The functions the sensor can operate are determined by the module with the lowest software/hardware status. Description The GC 338 sensor is a non-contact protective device of type 2 according to EN 12978 section 4.3.3 and a protec- tive device of the category 2 PL d according to EN ISO 13849-1.

  • Page 5: Supplied By Geze

    4x/5x** * 1200 mm: 2x / 1500 mm: 4x ** 1200 mm: 4x / 1500 mm: 5x What is supplied by GEZE varies depending on the door type. 2-leaf doors à 2 x 1-leaf door packages Fire protection doors / glass doors à...

  • Page 6: Preparing The Door Transmission Cable

    Work to be done before installation GC 338 Presence sensor Preparing the door transmission cable If only one interface is required, only one door transmission cable and one end cap need to be prepared. If the hinge side is on the left ,choose the left end cap.

  • Page 7: Installation

    GC 338 Presence sensor Installation Installation Preparation à When two interfaces are used (e.g. on fire protection doors or glass doors), there is no need to drill through the door for the connection cable BS/BGS. à When a GC GR sensor roller guide rail is used, this must be attached to the door in accordance with the en- closed instructions.

  • Page 8: Position Of The Modules

    Installation GC 338 Presence sensor Ø8–10 mm Position of the modules The maximum dimensions apply for an installation height of 2.1 m. max. 1200 mm max. 1500 mm 500–1000 mm 500–1000 mm 500–1000 mm ≥ 15 mm ≥ 15 mm ≥...

  • Page 9: Installation Of The Modules

    GC 338 Presence sensor Installation Installation of the modules 90° Only insert or remove the connector kit when in voltage-free state.
  • Page 10 Installation GC 338 Presence sensor The module has been engaged correctly if it can be moved easily. 90°...
  • Page 11 GC 338 Presence sensor Installation 90° oder 100mA SIGNAL Opposite hinge side Hinge side Door transmission cable GC 338 Interface module Interfacemodul...
  • Page 12 Installation GC 338 Presence sensor Engage the interface in the profile strip. Make sure you do not cover the drill hole for the BS/BSG connection cable.

  • Page 13: Preparing The Transmitter And The Receiver For The Other Side Of The Door

    GC 338 Presence sensor Installation Preparing the transmitter and the receiver for the other side of the door Special installation situations The special installation situations are described in chapter 8.

  • Page 14: Commissioning

    Commissioning GC 338 Presence sensor Commissioning Drive teach-in Heed the drive wiring diagram. Teach the drive without closing/opening safety sensor (SIO/SIS): Set SIS/SIO to “not used”. Following successful teach-in: Set the required opening and closing speed for the drive. Insert the sensor on the drive.
  • Page 15 GC 338 Presence sensor Commissioning Row/DIP Switch position OFF/ON Comment Default setting Row 1 SIGNAL: DIP 3 SBY (standby) TST (test) In test mode (ON) the function of the safety sensor is checked regularly by the drive. 1 2 3 4 Standby mode (OFF) also allows the safety sensor to be switched to energy-saving mode.
  • Page 16 Cover the glass wall for the teach-in process (e.g. with paper or a painter’s sheet up to a height of approx. 1 m) GEZE recommends teaching the drive and the sensor separately: Set the parameter closing/opening safety sensor (SIO/SIS) to “active”.

  • Page 17: Putting The Drive And Sensor Into Operation

    GC 338 Presence sensor Commissioning Putting the drive and sensor into operation Before the drive and the sensor can be put into operation, the teach-in processes must have been completed correctly. In case of faulty function: See chapter 8.2 Heed the wiring diagram of the specific drive.

  • Page 18: Last Assembly Steps After Commissioning

    Last assembly steps after commissioning GC 338 Presence sensor Last assembly steps after commissioning...

  • Page 19: Special Installation Situations

    After teach-in, the hold-open time can be extended as required. Set parameters for safety reserves and testing. Alternatively, teach-in for the GC 338 sensors on the active leaf and passive leaf can be carried out separately. First teach the sensors on the active leaf in 1-leaf mode.

  • Page 20: Installation On Fire Protection Doors / Glass Doors

    Special installation situations GC 338 Presence sensor Installation on fire protection doors / glass doors Make sure the DIP switch setting of the interfaces is correct. If a cable cannot be routed through the door, an interface has to be installed on both sides.

  • Page 21: Installation On Doors With Vertical Pull Handles

    GC 338 Presence sensor Special installation situations Installation on doors with vertical pull handles. The position of the vertical pull handle must be so far away from the main closing edge that the transmitter can still protect the main closing edge.

  • Page 22: Led Status And Troubleshooting

    LED status and troubleshooting GC 338 Presence sensor LED status and troubleshooting LED status display The transmitter module does not have an LED status display or error display. 9.1.1 Interface (1) DIP-LED (green) Lights up DIP position ON DIP position OFF Flashes slowly Setting changed ("TEACH"...

  • Page 23: Troubleshooting

    GC 338 Presence sensor LED status and troubleshooting Troubleshooting 9.2.1 Errors following teaching of the floor Effect Cause Elimination Red STATUS-LED Receiver LED is off Receiver without Check contacting of all modules on the interface function with the flat ribbon cable.
  • Page 24 LED status and troubleshooting GC 338 Presence sensor 9.2.2 Errors following wall teach-in Effect Cause Elimination Red STATUS- Receiver-LED Memory access error receiver Repeat the teach-in process. LED on the flashes 1x module interface is on Assignment of the interface to BS...
  • Page 25 GC 338 Presence sensor LED status and troubleshooting 9.2.4 Errors after operating voltage has been applied Effect Cause Elimination à Red STATUS-LED flashes briefly 1x at System is not functional Check correct number of modules an interval of approx. 2.5 s and/or ribbon cable 9.2.5 Errors in operation...

  • Page 26: Technical Data

    Technical data GC 338 Presence sensor Technical data Functional principle Active infrared light sensor with background evaluation Installation height 1500 to 3500 mm for test body CA upright, conformity according to DIN 18650 and EN 16005 Light transmitter IRED, 850 nm...

  • Page 27: Accessories / Spare Parts

    GC 338 Presence sensor Accessories / Spare parts Accessories / Spare parts Material Description Material no. End caps Set comprising left and right end cap 142226 Material: PA Sensor cut out profile EV1 – length 6 m 079581 Aluminium finish – length 6 m...
  • Page 28 Tel. +49 (0) 7152 203 594 www.geze.at www.geze.hu www.geze.dk Email: leonberg.de@geze.com Baltic States Iberia Singapore GEZE GmbH Baltic States office GEZE Iberia S.R.L. GEZE (Asia Pacific) Pte, Ltd. GEZE GmbH Email: office-latvia@geze.com Email: info@geze.es Email: gezesea@geze.com.sg Branch Office South-East www.geze.com www.geze.es...
