- Page 1 / Battery Charging Systems / Welding Technology / Solar Electronics Operating Instructions MagicCleaner Fume Abstractor Spare Parts List Miscellaneus 42,0426,0026,EN 002-04042012...
- Page 3 Read the manual carefully and you will soon be familiar with all the many great features of your new Fronius product. This really is the best way to get the most out of all the advantages that your machine has to offer.
-
Page 5: Table Of Contents
Contents General remarks ............................2 Machine concept ............................2 Intended use ............................2 Area of use .............................. 2 Functional diagram ..........................2 Scope of supply ............................3 Technical Specification ..........................3 Controls, connection sockets and mechanical components ................. 4 Front of MC fume extractor ........................4 Rear of MC fume extractor ........................ -
Page 6: General Remarks

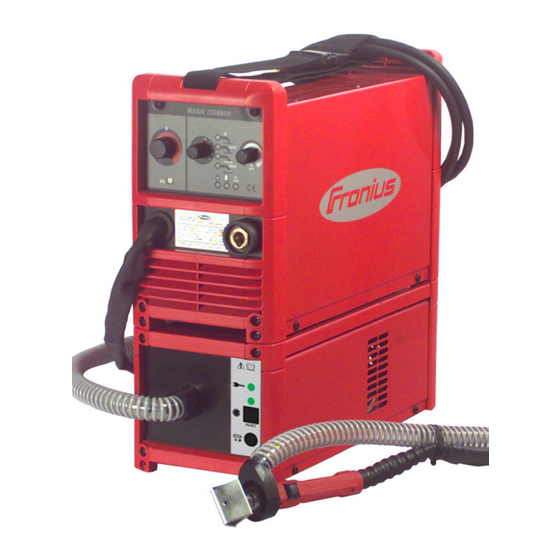

General remarks Machine concept The fully automatic MagicCleaner fume extractor (MC Fume Extractor) is an additional device to the MagicCleaner CrNi-cleaning device. The fume extractor is fixed onto the cleaning device. This results in a compact CrNi-cleaning system with extraction. -
Page 7: Scope Of Supply
Technical Speci- Supply voltage 230V fication Mains voltage tolerance +/-15 % Mains frequency 50 Hz Rated power (incl. MagicCleaner cleaning device) 950 VA Mains fuse protection 10 A slow-blow Maximum suction power 110 m³/h 3928 cu.ft./h Filter serviceable life approx. 300 hours... -
Page 8: Controls, Connection Sockets And Mechanical Components
Controls, connection sockets and mechanical com- ponents Front of MC fume (1) Hose connection / filter fastening extractor (2) Mains supply display (3) Filter display (4) Reset button (5) Turbine fuse Fig. 4 Front of MC fume extractor Rear of MC fume (6) Mains switch extractor (7) Socket with covering... -
Page 9: Before Initial Operation
The MC fume extractor must only be used for the removal of acidic vapours that arise during electro-chemical cleaning of high-alloy steels. The MC fume extractor must only be operated in conjunction with the MagicCleaner CrNi cleaning device. Any other form of use is seen as not the purpose for which the machine was intended. -
Page 10: Initial Operation
Fig.6 Preparation Fig.7 Fit suction nozzle Fasten the suction hose to the hosepack of the MagicCleaner CrNi Cleaning device using 4 cable ties. Connect to Note! The MagicCleaner CrNi Cleaning Device is not switched on at the same power source time if main switch (6) of the MC fume extractor is operated. -
Page 11: Initial Operation
The MC fume extractor is ready to run. The fume extractor only works during the actual cleaning procedure using the MagicCleaner CrNi Cleaning Device. The suction turbine is regulated via the cleaning current: Maximum cleaning current ..Suction turbine working at full capacity... -
Page 12: Replace Activated Carbon Filter
Replace activated carbon filter General remarks The degree of contamination of the activated carbon filter is shown on the filter display (2). Filter display (2) off: The activated carbon filter is clean or only slightly dirty. The activated carbon filter can absorb contaminants. - Page 13 Replace activa- Caution! Risk of injury due to ted carbon filter acid. Use suitable safety gloves (continued) when touching the filter cartridge or the filter mats. Note! Place the filter cartridge or the filter mats in an acid resistant container and ensure that it is not possible for other persons to Filter cartridge access the filter cartridge or the...
-
Page 14: Replace Activated Carbon Filter Ahead Of Schedule
Replace activa- Connect mains cable (8) to mains power supply ted carbon filter Set mains switch (6) to “I” position - filter indicator (3) lights up (continued) Press “Reset” button (4) and hold approx. 10 secs until filter indicator (3) goes off Caution! Suction efficiency is impaired if activated carbon filter is full. -
Page 15: Maintenance And Care
Check the following parts for possible damage: operation Socket, mains plug and mains cable Mains plug and mains cable for the MagicCleaner CrNi Cleaning Device Cleaning handle and cleaning handle hosepack for the MagicCleaner CrNi Clea- ning Device Check the ventilation flaps or air slots for turbine exhaust air and that air circulation is unimpeded. -
Page 16: Fault Diagnosis - Fault Rectification
Fault diagnosis - Fault rectification General All faults detected by the MC fume extractor are displayed by way of MC mains indica- tor (2) and filter indicator (3) . After switching on the extractor, both indicators light up for approx. 1 sec during the start-up phase. - Page 17 Ersatzteilliste Spare Parts List Liste de pièces de rechange Lista parti di ricambio Lista de repuestos Lista de peças sobresselentes Onderdelenlijst Reservdelsliste Seznam náhradních dílù Ñïèñîê çàïàñíûõ ÷àñòåé Zoznam náhradných dielov Reservdelslistan Parça Listesi Czyszczenie palnika ud_fr_st_tb_00150 012012...
- Page 18 Exhaust device MagicCleaner 4,045,884 AM2,0201,1727 AM2,0201,1726 AM2,0201,1725 * gewünschte Länge angeben * Specify the length required 43,0006,0180 * Indiquer la longueur désirée 42,0300,2568 * Indicar la longitud deseada 43,0003,0316 * Indicare la lunghezza desiderat 42,0100,1146 * indicar o comprimento desejado 42,0300,2602 * uved'te požadovanou délku...
