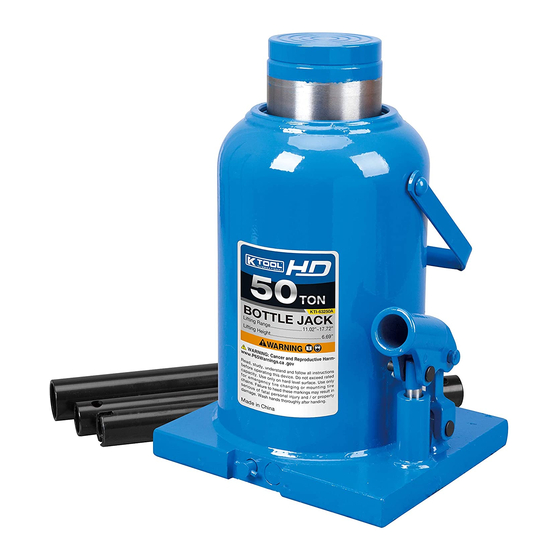

- Page 1 KTI-63250A OWNER’S MANUAL 50 TON HYDRAULIC WELDED BOTTLE JACK Lifting Range Lifting Range Capacity Lifting Height Min. (inch) Max. (inch) 50 TON 11.02” 17.72” 6.7’’ WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Complies with ASME PASE / 2014 Safety Standards...
-
Page 2: General Safety Rules
GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in serious injury. CAUTION: Do not allow persons to operate or assemble this jack until they have read this manual and have developed a thorough understanding of how the jack works. WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. -
Page 3: Safety Markings
SAFETY MARKINGS WARNING! 1. Study, understand, and follow all instructions before operating this device. 2. Do not exceed rated capacity. 3. Use only on hard, level surfaces, with less than 3 degrees of slope. 4. Lifting device only. Immediately after lifting, support the vehicle with appropriate means. 5. - Page 4 ASSEMBLY 1. Familiarize yourself with the jack. 2. Attach the 2 handle pieces making sure to align the holes on both sections. 3. Line up the handle to the handle socket located 4. Secure the handle in place inside the handle on the side of the jack.
- Page 5 SYSTEM AIR PURGE PROCEDURE IMPORTANT: BEFORE FIRST USE Perform the following System Air Purge Procedure to remove any air that may have been introduced into the hydraulic system as a result of product shipment and handling. This step is to be completed without any weight on the jack.
-
Page 6: Before Use
BEFORE USE 1. Before using this product, read the owner's manual completely and familiarize yourself thoroughly with the product and the hazards associated with its improper use. 2. Perform the system air purge procedure. (See previous instructions for System Air Purge Procedure.) 3. - Page 7 LOWERING THE JACK 1. Raise load high enough to allow clearance for the 2. Remove support stands. jack stands to be removed, then carefully remove jack stands. 3. Grasp the handle firmly with both hands. Securely 4. Carefully open the Release Valve by slowly hold on to the jack handle so your hands do not turning the handle counterclockwise.
-
Page 8: Maintenance Instructions
MAINTENANCE INSTRUCTIONS If you use and maintain your equipment properly, it will give you many years of service. Follow the maintenance instructions carefully to keep your equipment in good working condition. Never perform any maintenance on the equipment while it is under a load. Inspection You should inspect the product for damaged, worn, broken or missing parts (e.g.: pins) and that all components function before each use. -
Page 9: Parts Breakdown
PARTS BREAKDOWN... - Page 10 Ref. Description Roundwire snap ring Rectangular ring O-Ring D85X5.3-G-N Piston rod assembly Bowl washer O-Ring D79X5.3-G-N Roundwire snap ring Base welding parts Steel ball 6mm Release value assembly plastic plug Adjusting screw Spring Spring holder Steel ball 3mm Ball retaining washer Pump plunger assembly Oil plug Cutter pin...
-
Page 11: Troubleshooting
TROUBLESHOOTING JACK JACK JACK POOR WILL NOT CAUSES AND SOLUTIONS WILL WILL WILL JACK LIFT TO LIFTING FULL LIFT HOLD LOWER EXTENSION LOAD LOAD Release valve is not completely closed (Turn handle clockwise). Weight Capacity Exceeded. Air is in the hydraulics. Purge air from system.
