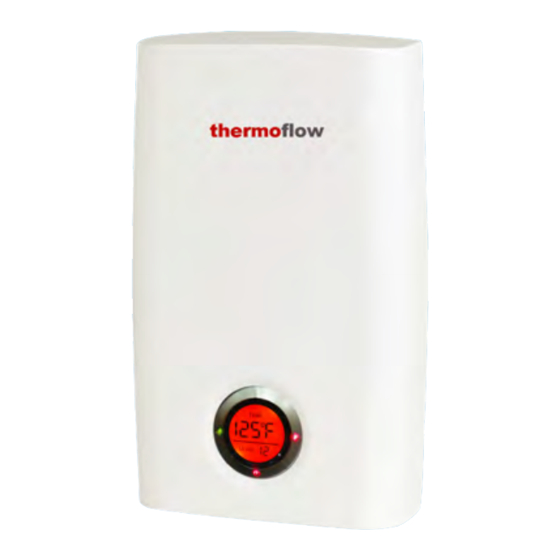

Electrically controlled tankless water heater
Hide thumbs
Also See for Elex 8.5:
Related Manuals for ThermoFlow Elex 8.5
Summary of Contents for ThermoFlow Elex 8.5
- Page 1 Electrically Controlled Tankless Water Heater Installa�on uide, ser anual, and Warranty nforma�on Electrically Controlled Tankless Water Heater Elex 8.5 / Elex 12 / Elex 15 / Elex 18 / Elex 21 / Elex 24...
-
Page 2: Table Of Contents
Contents Use of the manual ..............Mounting instructions ............User manual ................Maintenance ................Trouble shooting ..............Warranty conditions ............... Electric Tankless Water heater - Installation Maunal and User Guide... -
Page 3: Use Of The Manual
Use of the manual Congratulations and thank you for choosing our instant water heater. The instruction contains important information about commissioning, switching the device on and maintenance. To ensure your safety and that of others we recommend you read through this safety manual care- fully. - Page 4 Use of the manual This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities if they are supervised during use of the appliance and under stand the hazards involved. This is not a toy.
-
Page 5: Mounting Instructions
Mounting instructions Contents 1 device (Elex 8.5 / Elex 12) 1 mounting template 1 bag of installation materials, contects: 1 filter mat 4 spacers 1 gasket 4 screws 4 anchors ... - Page 6 Mounting instructions Unpacking Check if the device has been damaged in any way. Environment To prevent damage during transport this unit is shipped in sturdy packing. Please recycle the packaging where possible. Disposal of the appliance Old appliances must not be disposed of in your household waste! Please bring old appliances to the appropriate recycling center nearest to you.
- Page 7 Mounting instructions Elex 8.5 / Elex 12 Input electric cable MOUNTING TEMPLATE Mindestabstand zur Wand Mindestabstand zur Wand 4” 4” Minimum distance from wall Minimum distance from wall Warm water connection Cold water connection Electric tankless Water heater - Installation Maunal and User Guide...
- Page 8 Mounting instructions max. 1” 6” 1” Electric Tankless Water heater - Installation Maunal and User Guide...
- Page 9 Mounting instructions L1 L2 Push the button to reset the switch A11. outlet inlet filter mat gasket Electric tankless Water heater - Installation Maunal and User Guide...
- Page 10 Mounting instructions Elex 15 / Elex 18 / Elex 21 / Elex 24 5/16” mm 5/16” mm 4” mm Connection to wall Connection to wall Input electric cable MOUNTING TEMPLATE 4” mm 4” mm Minimum distance from wall Minimum distance from wall Gasket Inlet Connector Screws, washers and anchors...
- Page 11 Mounting instructions Max 18 Nm Don’t over-tighten the connections! Use a spanner! Arrow on the inlet connector must be installed outward from the wall! max. 1” Electric tankless Water heater - Installation Maunal and User Guide...
- Page 12 Mounting instructions B10. 6” L1 L2 L1 L2 Push the button to reset the switch 1” B11. B12. outlet inlet Electric Tankless Water heater - Installation Maunal and User Guide...
- Page 13 Mounting instructions The appliance must be earthed properly! The filter mat contained in accessory bag must be installed when connecting with inlet(cold) water pipe or hose! Circuit breaker must be installed with the appliance, please take page.15 to 17 for the selection of circuit breaker. See image A1, A2 Remove the screw with a philips-head screwdriver and open the top cover.
- Page 14 Mounting instructions See image B1, B2 Remove the screw with a philips-head screwdriver and open the top cover. Remove the display plug and remove the top cover and put beside. See image B3 Install the supplied plumbing components as illustrated. The filter mat must be installed on the inlet of the appliance.
- Page 15 • Check the operation of the device. Frost This device should be installed in a climate-controlled location, protected from freezing temperatures. Technical specifications Instant water heater model Elex 8.5 Elex 12 Electric supply 220-240V 50/60Hz 220-240V 50/60Hz Nominal power rating 8.5 kW...
- Page 16 Mounting instructions Technical specifications Thermoflow model Elex 15 Elex 18 Electric supply 220-240V 50/60Hz 220-240V 50/60Hz Nominal power rating 18 kW 15 kW Nominal current 2 x 32 A 2 x 38 A Circuit Breaker 2 x 2-POLE 40A 2 x 2-POLE 50A Flow rate (∆t=45°F)
- Page 17 Mounting instructions Technical specifications Thermoflow model Elex 21 Elex 24 Electric supply 220-240V 50/60Hz 220-240V 50/60Hz Nominal power rating 21 kW 24 kW Nominal current 2 x 44 A 2 x 50 A Circuit Breaker 2 x 2-POLE 50A 2 x 2-POLE 60A Flow rate (∆t=45°F)
- Page 18 Mounting instructions Temperature Rise vs. Flow Rate at 240V Note: Temperature rise = Hot Water Temp. - Cold Water Temp. Electric tankless water heater - Installation Maunal and User Guide...
-
Page 19: User Manual
(Thermoflow Elex 8.5/12/15/18/21/24). In this case, the flow should be reduced with the hot water valve. There is a danger of scalding at outflow temperatures exceeding 108°F. - Page 20 User manual Without a temperature limiter, high temperatures may be reached at usage points. Keep children away from the usage points. Danger of scalding! The device should be isolated from the electric supply before any work is done on live components. Disconnect this appliance from the power source in a safe way.
-
Page 21: Maintenance
Maintenance Maintenance This device does not require any maintenance by the user. Professional maintenance may only be carried out by authorized technical staff. Maintenance, e.g. verifying electrical safety, should only be undertaken by a qualified electrician, observing the relevant regulations (IEC, UL, etc.). -
Page 22: Trouble Shooting
Trouble shooting First aid • Check the fuses / breakers. • Check if any fittings or shower head are affected by the build-up of limescale or dirt. • See also “Troubleshooting”. Troubleshooting Problem Cause Solution Water heater is not heating at all (water is flowing but the Make sure the breakers at main unit is not heating - the... - Page 23 Trouble shooting Troubleshooting Problem Cause Solution User temperature Increase the temperature setting on setting too low. the unit. Depending on your incoming water temperature and the kW of your heater, your water flow rate may Flow rate is too exceed physical heating high.
- Page 24 Trouble shooting Troubleshooting Problem Cause Solution Your faucet may have an anti-scald feature or a tempering valve that automatically mixes cold water even when you turn your control Anti-Scald lever or handle to full hot. These pressure/balancing devices are usually adjustable so valve or tempering you can turn off the cold mix valve.
-
Page 25: Warranty Conditions
Warranty conditions Warranty The rights under this manufacturer’s warranty shall apply in addition to the buyer’s statutory rights. This warranty shall in no way restrict the buyer’s statutory rights in particularly towards the seller. Entitlement The claiming of rights under this warranty shall be subject to the submission of the respective proof of purchase. - Page 28 Elex 8.5 / 12 / 15 / 18 / 21 / 24 REV2.1 NA 201901...
