ThermoFlow Mini Pro Series Installation Manual

ThermoFlow Mini Pro Series Installation Manual

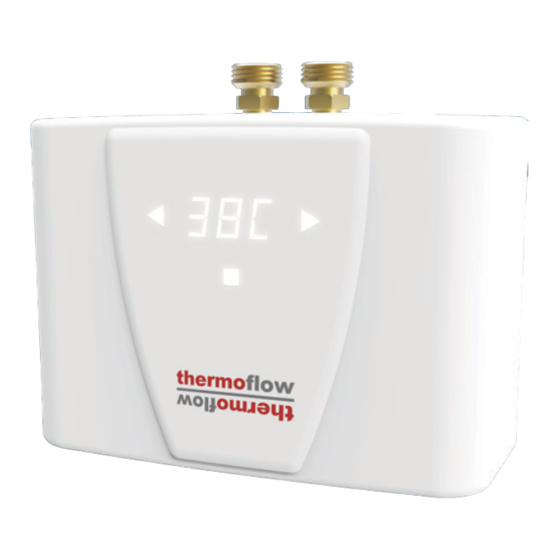

Mini tankless instant water heater

Advertisement

Mini Tankless Instant Water Heater
Installa�on Guide, User Manual, and Warranty Informa�on
MINH_MINE EU-A.indd 1
2020/6/2 17:15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Pro Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ThermoFlow Mini Pro Series

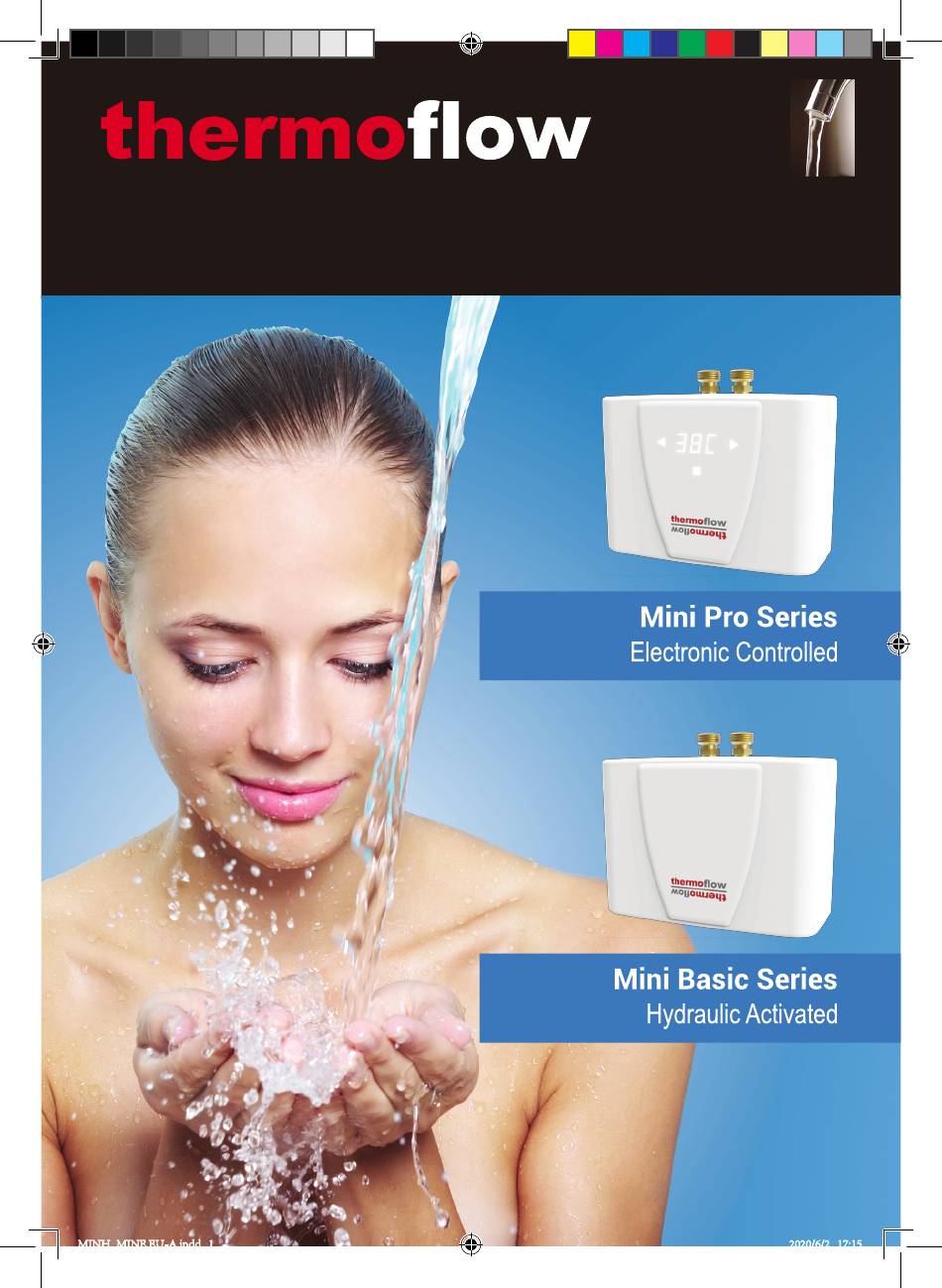

  • Page 1 Mini Tankless Instant Water Heater Installa�on Guide, User Manual, and Warranty Informa�on MINH_MINE EU-A.indd 1 2020/6/2 17:15...
  • Page 2: Table Of Contents

    Contents Contents Contents �����������������������������������������������������������������������������������������������2 Introduction ������������������������������������������������������������������������������������������3 Use Of The Manual��������������������������������������������������������������������������������4 Mounting Instructions ���������������������������������������������������������������������������5 Technical Specifications ����������������������������������������������������������������������12 User Manual ���������������������������������������������������������������������������������������16 Maintenance ���������������������������������������������������������������������������������������18 Troubleshooting ����������������������������������������������������������������������������������19 Warranty Conditions ����������������������������������������������������������������������������20 Electric Tankless Instant Water Heater - Installation Manual and User Guide MINH_MINE EU-A.indd 2 2020/6/2 17:15...
  • Page 3: Introduction

    Introduction Introduction Congratulations and thank you for choosing our instant water heater� The instruction contains important information about commissioning, switching the device on and maintenance� To en- sure your safety and that of others, we recommend you read through this safety manual care- fully�...
  • Page 4: Use Of The Manual

    Children shall not play with the appliance� Cleaning and user maintenance shall not be made by children without supervision� Declaration of conformity We hereby declares that the Thermoflow device complies with the directives and stan- dards: • 2014/35/EU Low Voltage Directive •...
  • Page 5: Mounting Instructions

    Mounting Instructions Standards and regulations The installation (plumbing and electrical work), commissioning and maintenance of this appliance should only be undertaken by personnel with electrical engineering qualifica- tions and in accordance with the relevant standards and regulations (BSI, etc�) and this manual�...
  • Page 6 Mounting Instructions Tools You will require the following tools for the installation: • Phillips-head screwdriver • Open-ended spanner 15mm(5/8”) and 24mm(1”) • Teflon tape • Drill • 8mm(9/16”) stone or concrete drilling bits • Pencil • Adhesive tape • Wire stripper Environment To prevent damage during transport, this unit is supplied in robust packaging�...
  • Page 7 Mounting Instructions Frost The appliance is not to be installed in locations where freezing can occur. The device should be installed in a vertical position in a room protected from frost and in the proximity of the water connections� In case the room cannot be protected against frost, the device should not be installed in this room�...
  • Page 8 Mounting Instructions Drawing A. - Installation as undersink model a. Seal b. Filter mat c. Cold water-connection (inlet) d. Hot water-connection (outlet) e. Rating plate cover Electric Tankless Instant Water Heater - Installation Manual and User Guide MINH_MINE EU-A.indd 8 2020/6/2 17:15...
  • Page 9 Mounting Instructions With power plug Without power plug 4a. With power plug 4b. Without power plug Power Supply Power Supply Outlet Inlet L/L1 N/L2 Inlet Outlet Drawing B. - Installation as oversink model Electric Tankless Instant Water Heater - Installation Manual and User Guide MINH_MINE EU-A.indd 9 2020/6/2 17:15...
  • Page 10 Mounting Instructions a. Seal b. Filter mat c. Cold water-connection (inlet) d. Hot water-connection (outlet) e. Rating plate cover 4a. With power plug Without power plug 4a. With power plug 4b. Without power plug Power Supply Power Supply N/L2 L/L1 Outlet Inlet Outlet...
  • Page 11 Mounting Instructions The appliance must be earthed properly! The filter mat contained in accessory bag must be installed when connecting with inlet(cold) water pipe or hose! Earth leakage circuit breaker must be installed with the appliance, please take page.12 to 13 for the selection of breaker. Please verify the voltage of power supply before installation! Drawing A - Installation as undersink model The device must be installed as shown in the installation drawing for under-sink instal-...
  • Page 12: Technical Specifications

    Technical Specifications Technical Specifications Technical specifications Elex Mini Basic Series Elex 3.5L Elex 3.5 Elex 4.5 Electric supply 110-127V 50/60Hz 220-240V 50/60Hz 220-240V 50/60Hz Nominal power rating 3�5 kW 3�5 kW 4�5 kW Nominal current 29 A 15 A 20 A Earth leakage circuit breaker 2-POLE 30A 2-POLE 20A 2-POLE 25A...
  • Page 13 Technical Specifications Technical specifications Elex Mini Basic Series Elex 5 Elex 5.5 Elex 6 Electric supply 220-240V 50/60Hz 220-240V 50/60Hz 220-240V 50/60Hz Nominal power rating 5 kW 5�5 kW 6 kW Nominal current 22 A 24 A 26 A Earth leakage circuit breaker 2-POLE 25A 2-POLE 30A 2-POLE 30A Cable size...
  • Page 14 Technical Specifications Technical specifications Elex Mini Pro Series Elex 3.5L Pro Elex 3.5 Pro Elex 4.5 Pro Electric supply 110-120V 50/60Hz 220-240V 50/60Hz 220-240V 50/60Hz Nominal power rating 3�5 kW 3�5 kW 4�5 kW Nominal current 29 A 15 A...
  • Page 15 Technical Specifications Technical specifications Elex Mini Pro Series Elex 5 Pro Elex 5.5 Pro Elex 6 Pro Electric supply 220-240V 50/60Hz 220-240V 50/60Hz 220-240V 50/60Hz Nominal power rating 5 kW 5�5 kW 6 kW Nominal current 22 A 24 A...
  • Page 16: User Manual

    To prevent damage to the appliance, the instant water heater must be purged of air before using it for the first time. How to use (Elex Mini Pro Series) Elex Mini Pro series with LED display can detect the undersink/oversink installa- tion automatically, and make sure the display properly. LEDs...
  • Page 17 User Manual How to adjust the maximum water flow rate May only be carried out by a specialist. Direction Flow Step 1 Push the cover at the corrugation towards the wall bracket� Step 2 Press the cover down at the rear corners until the front edge lifts� Step 3 Remove the cover by pulling forward�...
  • Page 18: Maintenance

    Maintenance The main water valve should be closed before any work is done on the water pipe. If the water supply is interrupted, e.g. due to maintenance on the mains water supply, then the following steps should be undertaken before returning the device to operation: 1.
  • Page 19: Troubleshooting

    Troubleshooting Troubleshooting First aid • Check the leakage protection switch and the fuses� • Check if any fittings or shower head are affected by the build-up of lime scale or dirt� • See also „Troubleshooting by users“� Troubleshooting by users Problem Cause Solution...
  • Page 20: Warranty Conditions

    Warranty Conditions Warranty Conditions Warranty The rights under this manufacturer’s warranty shall apply in addition to the buyer’s statutory rights� This warranty shall in no way restrict the buy- er’s statutory rights in particularly towards the seller� Entitlement The claiming of rights under this warranty shall be subject to the submis- sion of the respective proof of purchase�...
  • Page 21 MINH_MINE EU-A.indd 21 2020/6/2 17:15...
  • Page 22 MINH_MINE EU-A.indd 22 2020/6/2 17:15...
  • Page 23 MINH_MINE EU-A.indd 23 2020/6/2 17:15...
  • Page 24 Elex Mini Basic Series Elex Mini Pro Series MINH_MINE EU-A Rev 3�4 202005 MINH_MINE EU-A.indd 24 2020/6/2 17:15...
