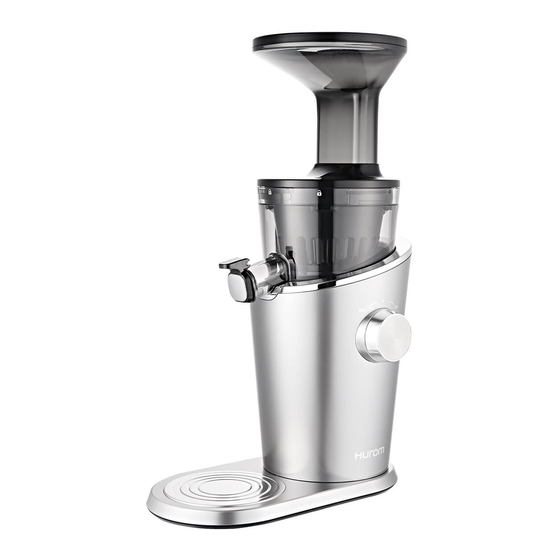

HUROM H-100S Series Instruction Manual

For household use only / warranty included
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
| H-100S Series
( For Household Use Only / Warranty Included )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-100S Series and is the answer not in the manual?

Questions and answers

Related Manuals for HUROM H-100S Series

Summary of Contents for HUROM H-100S Series

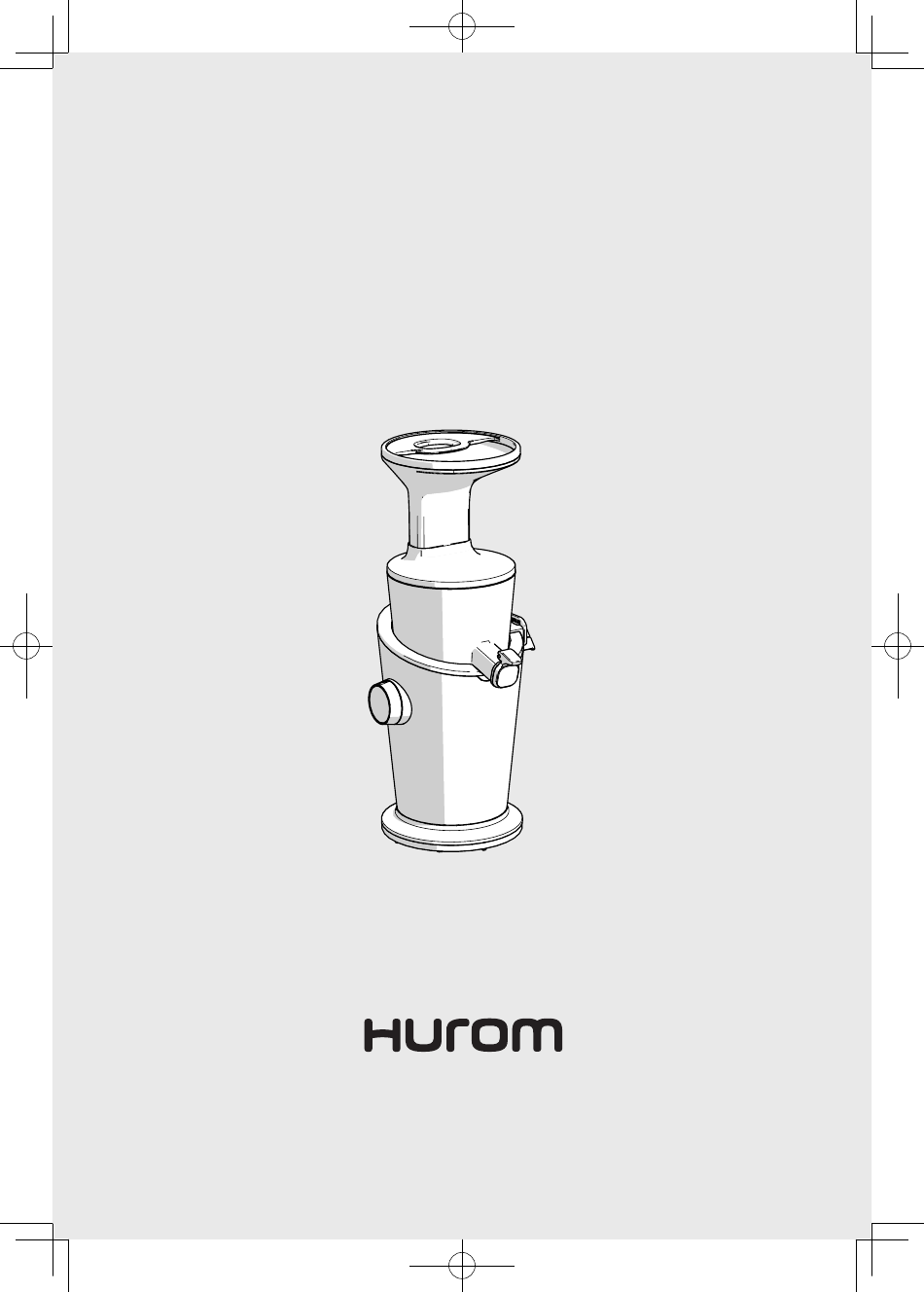

  • Page 1 Instruction Manual | H-100S Series ( For Household Use Only / Warranty Included )

  • Page 2: Safety Precautions

    Before Reading Manual 1. Read ‘Safety Precautions’ (p. 2~5) and use the appliance properly. 2. After reading the manual, keep it in a convenient location for future reference. 3. Do not use it abroad which has different power supply and voltage. 4.
  • Page 3 Safety Precautions PLUG THE POWER CORD CORRECTLY AND FIT IT TIGHTLY INTO A WALL SOCKET. It may cause an electric shock or a fire. IF THE POWER CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTUR ER’S ITS SERVICE OR SIMILARLY QUALIFIED PERSONS IN ORDER TO AVOID A HAZ ARD.
  • Page 4 RUNNING, IT MAY LEAD TO DAMAGE TO PARTS AND FUNCTIONAL DEGRADATION DUE TO OVERHEATED MOTOR. If the problem persists, stop the product and contact Hurom Customer Center. DURING THE OPERATION, DO NOT ATTEMPT TO MOVE THE MAIN BODY, DISASSEM BLE THE CHAMBER SET OR PARTS, OR TRY TO LOCK THEM. It may cause an injury or a failure.

  • Page 5: Cautions During Operation

    - Ingredients that does not produce juice according to the characteristic of the ingredients such as linden, aloe, cactus, acorn, etc. (Contact Hurom Customer Center and ask us about the ingredients to use for extraction. We will answer you in detail.) - Do not use the machine for crushing cereals.
  • Page 6  Component Guide (Chamber Set) ① Hopper ② ① Upper hopper chute ② Side hopper chute ③ Assembly Guide ③ ① Screw ① Screw Axis ② Screw Packing ② Inner Strainer ① Inner Strainer ② Inner Strainer Binding ② Points ③ Ice Cream Strainer ④...
  • Page 7 Component Guide (Main Body, Other Components) Base ① ① MotorSpin ② Power Dial ② Container Set ① Juice Container ② Pulp Container ② ① Accessories ① Cleaning Brush ② Pusher ① ②...

  • Page 8: Component Details

    Component Details / Hopper ① ② ③ ① Upper hopper chute: Use this to insert long and narrow vegetables such as celery and carrot. ② Side hopper chute : Use this to insert cherry tomato, grapes, and diced fruits and vegetables ③...
  • Page 9 Component Details / Juice Strainer (Black) ① ① Juice Strainer Wing : Wings for fixing chamber and strainer. Fit the winter wings to the grooves on the chamber. • Use this to extract juice from fruits containing plenty of flesh, ordinary vegetables / fruits. (Use smoothie strainer for soft fruits) •...
  • Page 10 • Ingredients that does not produce juice according to the characteristic of the ingredients such as linden, aloe, cactus, acorn, etc. (Contact Hurom Customer Center and ask us about the ingredients to use for extraction. We will answer you in detail.) •...
  • Page 11 Component Details / Ice Cream Strainer ① ① Guide Bump: When you set ice cream strainer onto the chamber, use the groove on the chamber and the bump on the strainer as the guides to fit them together completely. • Used to make slushie, smoothie, and ice cream using frozen fruits. •...
  • Page 12 Assembling Juice Chamber Set Out Strainer Hopper ⑦ Assembly Guide Chamber Screw ⑥ Fit the wings of the external strainer (④) to Screw Packing the grooves of the chamber (③). Inner Strainer ⑤ Assembly Guide Hopper Out Strainer ④ Strainer Wing Chamber Groove ③...
  • Page 13 ※ Assembly Guide with Main Body is in p16. Inner Strainer t Strainer Screw Place the inner strainer fit into the outer Place the screw in the assembly in 02. strainer in the chamber. Make sure the screw packing (⑥) is properly Match the binding point (⑤) of the inner placed under the screw before putting the strainer and the wings of the outer strainer...
  • Page 14 Assembling Ice Cream Chamber Set Hopper ⑤ Assembly Guide Screw ④ Remove the extraction packing in the Screw Packing discharge cover. 1. When making ice cream, remove the extraction packing. 2. Do not remove the seal packing. Ice Cream Strainer ③...
  • Page 15 ※ Assembly Guide with Main Body is in p16. Chamber Ice Cream Strainer Discharge Cover Make sure the discharge cover (①) of the chamber Place the ice cream strainer in the chamber. is properly fastened with the loop. Wiggle the strainer left and right until the 1.
  • Page 16 How to Assemble: Chamber Set and Main Body ② ① Fit chamber set to main body. Assemble the chamber set and main body first and then plug the power cord with your dry hand. Place the juice cup (①) and pulp cup (②) when you extract juice. Place the cup (②) under the pulp outlet when you make ice cream.
  • Page 17  The screw may stop if you put ingredients too much or too quickly.  If the machine does not resume even after the following remedies, turn off the machine and contact Hurom Customer Center. Turn the power dial to the direction of [REV] and hold it for 3~5 seconds (counterclock- wise) and let it go.
  • Page 18 How to Use: Making Juice / Ice Cream [ON] 30 > [REV] 5 > [ON] 30 " " "...
  • Page 19 How to Use: Making Juice / Ice Cream Make sure the discharge cover and juice cap of the chamber are closed properly. ① Even if the discharge cover is closed, pulp is discharged. The velocity and amount of discharge of pulp may differ according to the ingredients used. When extracting juice: After making sure that the extraction packing and seal packing are assembled properly, close the discharge cover.
  • Page 20 Separating and Washing ※ After the product has completely stopped operating, unplug the power cord with your dry hand.The motor will stop slowly even when you stop the machine.Separate the chamber set approximately 3 seconds after the machine comes to a complete stop. Remove the chamber set from the main body.
  • Page 21 Disassembling and Washing Silicon Components (Packing is a consumable component and replacement is recommended every 6 months ~ 1 year. You can purchase components through the Customer Center.) Assembling and Disassembling the Screw Packing (if it is not assembled properly, the packing may be damaged) Flip over the screw and pull After washing, hold the packing Place the packing on the...

  • Page 22: Before Requesting For Repair

    Before Requesting for Repair Check the following before asking for repair. For follow-up service and any inquiry you may have while using the product, please contact our Customer Center, or homepage at http://www.globalhurom.com Check the manufacturer’s number or the number under the barcode when requesting for follow-up service or parts. 1.

  • Page 23: Product Specifications / Warranty

    Important: For better protection of your purchase, fill out and mail this form to a local distributor where you purchased the appliance and keep the original receipt. This certifies that the Hurom Slow juicer is covered under warranty by HUROM to be free from defects in material construction and workmanship.
  • Page 24 MADE IN KOREA Copyright© All Rights Reserved by HUROM 4DC010761_V.01...
