Page 1
DESIGN SPECIFICATION 인쇄물 시방서 개정 : 19' 11 R&D2본부 디자인팀 주민아 자재명(자재번호 / 파일명 / 버전) : 4DC010798 사용설명서 통합 H200 Serise 영문_V.01 작성일 : 2020. 01. 28 시방서 1. 자재 사양 3. 제작 및 수정일자 150 x 220 mm 1.
Page 2
4DC010798 사용설명서 통합 H200 Serise 영문_V.01.indd 1 2020-01-28 오후 3:21:47...
Page 3

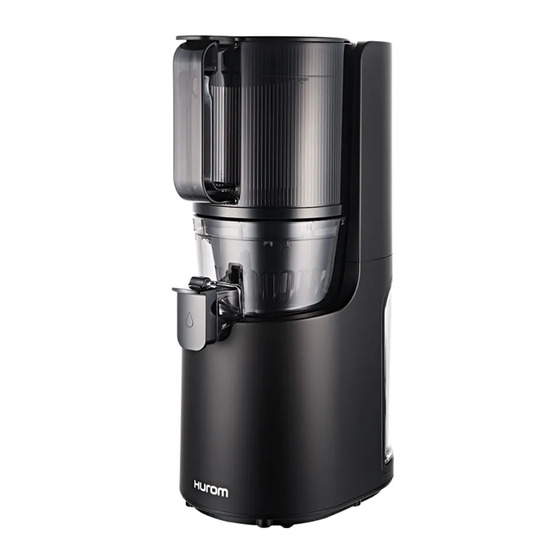

Instruction Manual H-200 Series [ Home use only / Warranty not included ] CONTENS OUTLET WHILE THE JUICER IS RUNNING. WHEN THE POWER CORD, WIRE IS BROKEN OR 1. Precautions for Safe Use P 02 DAMAGED OR THE PLUG-IN PART BECOMES LOOSE, DO NOT OPERATE THE MACHINE.
Page 4
local customer service center. bananas, or strawberries, the juice may pool inside the DURING THE OPERATION, DO NOT ATTEMPT TO MOVE chamber and not be extracted properly. Please add other THE MAIN BODY, DISASSEMBLE THE CHAMBER SET OR ingredients that are not too soft. PARTS, OR TRY TO LOCK THEM.
Page 5
4. Precautions for strainers 3. Power Switch ※ When you prepare juicing ingredients, choose Press and hold the switch for the product operations. your own proper ingredients if you have any food allergy. ※ Refer to the ingredient preparation guide and choose the right strainer type accordingly.
Page 6
4-1. Coarse strainer (orange) 4-2. Fine strainer (black) • Use it for extraction of general fruits and vegetables. • Use this strainer for juicing fibrous roots, stalks, or • Strainer mark: It is translucent orange and has leafy vegetables. strainer mark [A] on its hook. (Use the coarse strainer for general fruit vegetables.) •...
Page 7
5. How to Assemble ⑤-1 /⑥-1 ③ ⑦-5 ①-3 ④-1 ②-1 ⑦-5 ① ②-3 ⑦-2 ⑦-1 Make sure to align groove in the chamber(⑦-5) external strainer wing(⑤/⑥). Assemble the inner strainer and squeezing screw onto the external strainer of chamber. The settlement point of the inner strainer (④-1) and the wing of outer strainer (⑤-1 / ⑥-1) should be aligned in place.
Page 8
6. Plugging and Unplugging Silicone ※ Silicone packings are supposed to be replaced Juice Cap Packing every 6 to 12 months. You can purchase them through our Customer Service Center. (The juicer may leak if the product is not assembled properly.) ⑦-8 Extraction Packing...
Page 9
7. How to operate 작동스위치 정회전 정회전 off(정지) 정지 정지상태 역회전 역회전 작동스위치 정회전 누름 정회전 역회전 역회전 작동스위치 정회전 역 회 전 정회전 역 회 전 off(정지) 정지 정지상태 누 름 역회전 정 회 전 정 회 전 작 동 스 위 치 역회전...
Page 10
8. When the squeezing screw stops during normal operation 01 Pull up the lever inside the hopper knob and open the lid. ① Pull up the lever inside the hopper knob, and open the lid. Overloading the product with ingredients may damage the product.
Page 11
9. How to Disassemble and Clean ※ After the product stop operating completely, unplug the power cord with your dry hands. The motor is still slowing down after the appliance is turned off, so wait about 3 seconds before separating the chamber. Separate the chamber set from the base.
Page 12
10. Before Check the following before asking for repair. For follow-up service and any inquiry you may have while using the product, please contact our Customer Center, or Requesting Repair homepage at http://www.globalhurom.com Check the manufacturer’s number or the number under the barcode when requesting for follow-up service or parts. 01.
