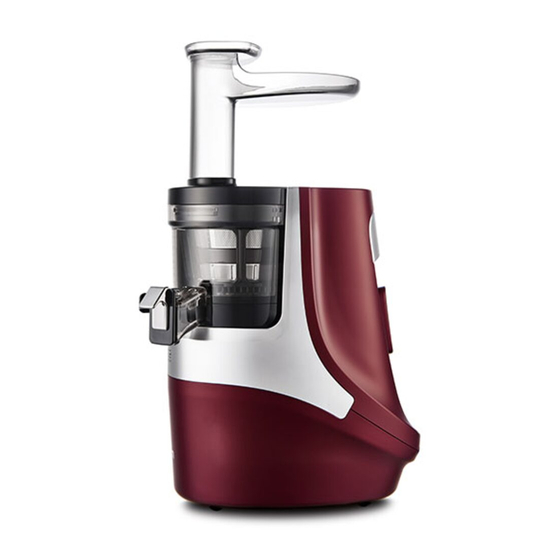

HUROM H-AF Instruction Manual
  1. Manuals
  2. Brands
  3. HUROM Manuals
  4. Juicer
  5. H-AF
  6. Instruction manual

HUROM H-AF Instruction Manual

Slow
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
CONTENTS
02
03
04
Parts and Accessories
06
07
08
10
12
13
14
Using the product : For juicing / For ice cream
15
16
17
18
19
20
22
24
H-AF Series (Household use only / Warranty included)
01. Read the instructions carefully before using.
02. Keep these instructions somewhere easily accessible.
03. Use only with 120V AC power supply.
04. Design and product development may be upgraded without notice.
05. Any quality improvements are subject to change without notice.
TM

Advertisement

Table of Contents
loading

Related Manuals for HUROM H-AF

Summary of Contents for HUROM H-AF

  • Page 1: Table Of Contents

    Using the squeezer Cleaning : Silicone parts Troubleshooting Product specifications / Warranty H-AF Series (Household use only / Warranty included) 01. Read the instructions carefully before using. 02. Keep these instructions somewhere easily accessible. 03. Use only with 120V AC power supply.

  • Page 2: Important Safeguards

    IMportant SafeguardS When using electrical appliances, basic safety precautions should alWays be folloWed. read all instructions. to protect against risk of electrical shock, do not put the main body (motor) in Water or any other liquid. close supervision is necessary When any appliance is used near children.

  • Page 3: Precautions

    Precautions for safe use Do not plug oR unplug with wet hanDs. It may cause electric shock or injury. Do not use otheR than 120 V aC. It may cause electric shock, fire or product failure. If the voltage is different, it may shorten the life of the motor or cause a failure. plug the poweR CoRD CoRReCtly anD push it tight in a wall soCket.
  • Page 4 partS * Components may vary depending on the model. 02 Spinning Brush 01 Hopper Side hopper hopper Chute Chute Silicone Brush Brush holder Safety Sensor 03 Squeezing Screw 04 Chamber Screw Axis Mid Gear Mid Gear Packing Pulp 05 pusher Outlet Juice Cap Packing...
  • Page 5 partS 12 Body Safety Sensor Body Bump handle Operating Switch Shaft 13 Cleaning Brush 14 Small Cleaning Brush 15 tofu Set 16 Chamber rack *Chamber Rack can't be separated after Tofu Press assembling. Tofu Mold diagram 17 Squeezer Set Cone Safety Sensor Tilt handle Serving Spout...

  • Page 6: Disassembling The Chamber

    dISaSSeMBLIng tHe CHaMBer Please clean all the parts before first use. Turn the hopper counterclockwise and pull upwards. Remove the strainer and spinning brush from the chamber. Hold both sides of the wing and pull out the squeezing screw. Remove the strainer from the spinning brush.

  • Page 7: Preparing Ingredients / Use By Strainer Type

    preparIng IngredIentS for juicing apple, pear, kiwi, Keep peel and seeds intact when juicing fruits such as pear, kiwi, Korean melon, etc.. Apple Korean melon seeds contain toxins, so it is better to remove them before juicing. pomegranate, Separate each grape from the cluster. Peel the pomegranate and use seeds only. grapes Watermelon, Peel outer rind of watermelon and citrus fruits.

  • Page 8: Assembling The Chamber For Juicing

    aSSeMBLIng tHe CHaMBer for JuICIng STEP STEP Place the assembled parts from [STEP1] Assemble the strainer and spinning into the chamber. Twist the strainer from brush as shown. side to side so that the bottom bump of the strainer fits the groove of the chamber. bottom bump of the strainer...
  • Page 9 aSSeMBLIng tHe CHaMBer for JuICIng STEP STEP Press the squeezing screw into the Assemble the hopper as shown. After assembled parts from [STEP 2] until the fitting the hopper on the chamber, turn screw fits perfectly. clockwise until it locks completely. note The appliance works even if the hopper is assembled in...

  • Page 10: Assembling The Chamber For Making Ice Cream

    aSSeMBLIng tHe CHaMBer for MaKIng ICe CreaM STEP STEP Press the squeezing screw into the Place ice cream strainer in the chamber. assembled parts from [STEP 1] until the Align the ice cream outlet of the strainer screw fits perfectly. with the juice outlet of the chamber.
  • Page 11 aSSeMBLIng tHe CHaMBer for MaKIng ICe CreaM STEP Assemble the hopper as shown. Place the hopper on the chamber and turn clock- wise until it is completely locked. note The appliance works even if the hopper is assembled in the opposite direction.

  • Page 12: Assembling The Chamber Set And Body

    aSSeMBLIng tHe CHaMBer Set and Body *The assembly method is the same regardless of strainer type. place the control lever of the chamber to as shown in Image❶. fit the bottom of the chamber to the body bump. If the control lever is not placed on the chamber set and body will not fit completely.

  • Page 13: Cautions During Operation

    CautIonS durIng operatIon  Ingredients that require caution. - Fruits with hard seeds that are hard to chew, such as persimmon, Japanese apricot, lemon, plum, peach etc. should have the seeds removed and not extracted. - Stalk vegetables with tough fiber, such as water parsley, celery, etc., should be cut into small sizes of about 1-2 inches before insertion.
  • Page 14 uSIng tHe produCt : for juicing / Ice cream place the control lever to the CLoSe ) position before operating. The chamber cannot be assembled correctly if the control lever is not on CLOSE ( ) position. press the [on] button to start. If the appliance does not start, please check that the 작동스위치...

  • Page 15: Using The Control Lever By Mode

    uSIng tHe ControL LeVer By Mode The control lever is between the juice outlet and pulp outlet.  The control lever can help extract the most out of various ingredients.  preparation/extraction mode For most ingredients, the extraction rate is good when you close ( ) the control lever during operation.

  • Page 16: Using The Control Lever By Ingredient (Juicing)

    uSIng tHe ControL LeVer By IngredIent (Juicing) Ingredients Apple, pear, melon, watermelon, strawberry, blueberry, orange, grapefruit, lemon, mango, plum, peach, cherry, persimmon, pineapple, wheatgrass, parsley, celery, dandelion, carrot, ginger, potato, beet, tomato, bell pepper, broccoli, cauliflower, cabbage, kale, spinach, cooked sweet potato and pumpkin, corn 2.

  • Page 17: If The Squeezing Screw Stops During Operation

    If tHe SqueezIng SCreW StopS durIng operatIon press [reV] button on the operating switch- for about 3-5 seconds then stop. repeat this 2-3 times. Press on the [REV] button to push the ingredients back upward. The [REV] button only works while pressing down on it, the squeezing screw stops rotating if you release the button.

  • Page 18: Assembling And Cleaning The Squeezer Accessory

    aSSeMBLIng and CLeanIng tHe Squeezer assembling the squeezer set on the body Mount the serving spout on the body. Safety sensor Align the grooves on the bottom of the serving spout with the body bumps. Safety sensor fit the cone onto the spin axis on the body.

  • Page 19: Using The Squeezer

    Cautions Remove seeds before extraction, or your juice may contain seeds. If you want clear juice, use the hurom chamber for juicing. Please wash all fruit thoroughly before extraction. Please use fruit at room temperature, rather than frozen fruit, for greater yield.
  • Page 20 CLeanIng Cleaning parts Unplug the power cord of the fully stopped unit using dry hands. Remove the chamber set from the main body. Twist the hopper to open and lift out the parts in order to disassemble the unit. Using a cleaning brush, wash the chamber set under running water.

  • Page 21: Cleaning: Silicone Parts

    CLeanIng: SILICone partS Juice Cap packing Open the juice cap. hold the chamber and juice cap with one hand, and remove the juice cap packing with the other hand to disassemble. Please be careful not to drop or damage the juice cap and chamber when disassembling the unit.

  • Page 22: Troubleshooting

    If you need additional assistance or information, please contact your local Customer Service Center or visit www.hurom.com. When requesting for service or repairs after purchase, please have the serial number or bar code available. 1. the main body will not work.
  • Page 23 5. the appliance does not work. Make sure that the power cord is properly plugged in. Check that the hopper is properly assembled. For safety reasons, if the hopper has not been locked into place, the appliance will not operate. Check if the appliance is assembled according to the directions in the manual.

  • Page 24: Product Specifications / Warranty

    (10) years for the motor and two (2) years for other parts from the date of purchase by the original purchaser. Coverage is valid only with proof of purchase from an Authorized Local Distributor.
