Lighted Mirrors
Installation Guide
Installation Guide
CONGRATULATIONS
You've purchased the finest lighted mirror available, from the global leader in mirror technology. This lighted mirror is
quick and easy to install, and is designed and manufactured to offer you years of enjoyment.
Please read these instructions thoroughly before beginning installation. If you have any questions, please contact our
Customer Service team at 425.776.4946, or customer.support@electricmirror.com.
APPLICATION
These installation instructions apply to the lighted
mirrors listed below with a Part # prefix that includes
the number 2. For example, the Celebration lighted
mirror Part # prefix is CEB2.

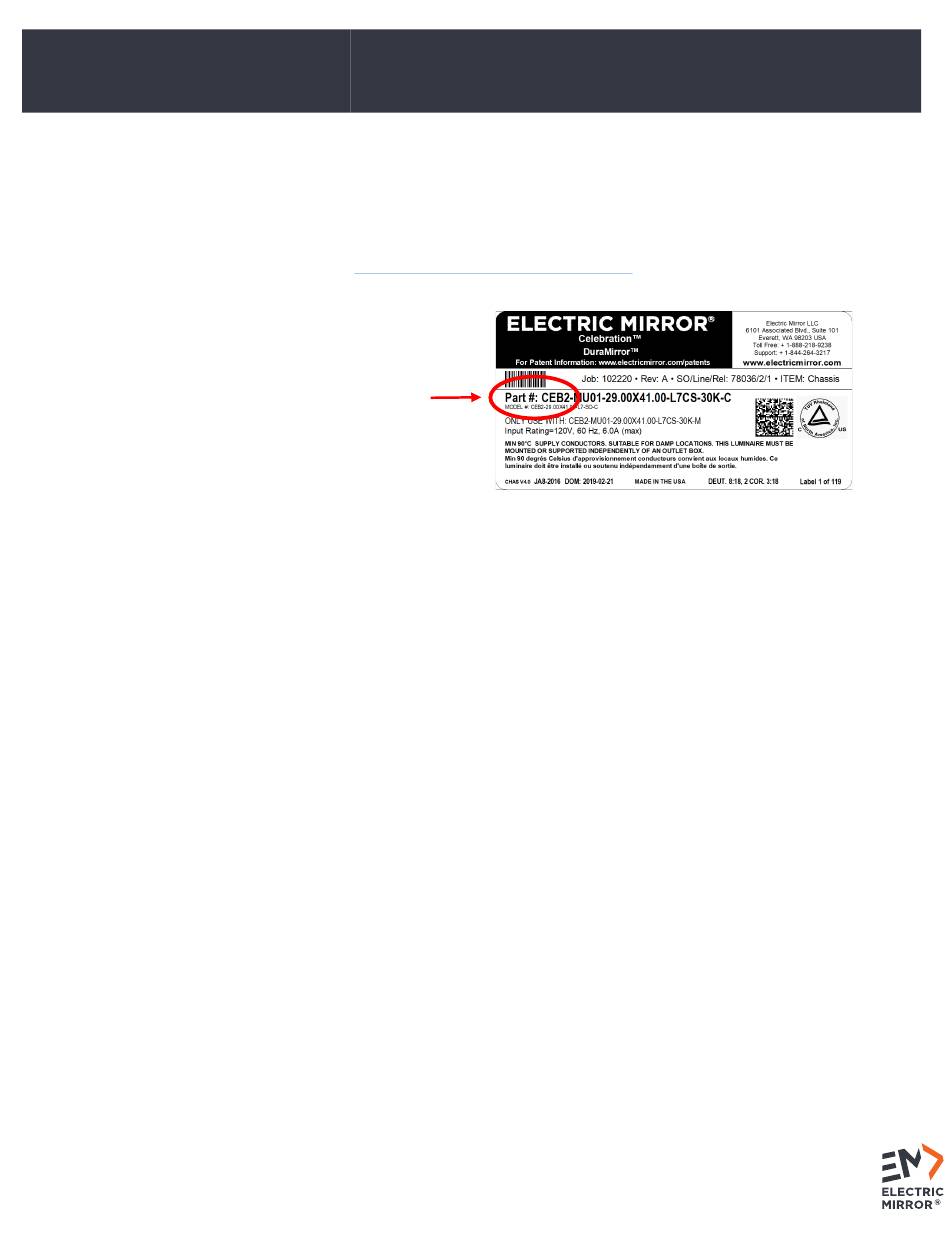

To confirm the Part # for your product, look for the
product sticker on the inside of the chassis.
• Aria (ARI2)
• Bela (BEL2)
• Crown (CRO2)
• Eternity (ETE2)
For mirrors not listed above, see additional Installation Instructions located at
www.electricmirror.com/installation-instructions.
TABLE OF CONTENTS
1.
Review important safety instructions .................................................................................................................................................. 2
2.
Unpack your lighted mirror ...................................................................................................................................................................... 2
3.
Determine the mirror location ................................................................................................................................................................ 3
4.
Prepare the electrical ................................................................................................................................................................................. 4
5.
Mount the chassis......................................................................................................................................................................................... 5
6.
Connect the electrical ................................................................................................................................................................................ 6
7.
Connect optional upgrade technology ............................................................................................................................................... 7
8.
Wire the dimming switch .......................................................................................................................................................................... 8
9.
Hang the mirror ........................................................................................................................................................................................... 10
10. Clean the mirror ..........................................................................................................................................................................................12
ELECTRIC MIRROR®
425.776.4946
• Eyla (EYL2)
• Facet (FAC2)
• Fusion (FUS2)
• Integrity (INT2)
|
|
electricmirror.com
sales@electricmirror.com
ELECTRIC MIRROR®
• Jewel (JWL2)
• Momentum (MOM2)
• Novo (NOV2)
• Novo 4 (NOV42)
|
© 2019 Electric Mirror. All rights reserved.
ELECTRIC MIRROR®
• Prism (PRI2)
• Reflection (REF2)
• Serenity (SER2)
• Silhouette (SIL2)
• Trinity (TRI2)
|
2.0419.MC
1
Advertisement
Table of Contents
Related Manuals for Electric Mirror Aria
Summary of Contents for Electric Mirror Aria
-
Page 1: Table Of Contents
Connect the electrical ....................................6 Connect optional upgrade technology ............................... 7 Wire the dimming switch ..................................8 Hang the mirror ......................................10 10. Clean the mirror ......................................12 ELECTRIC MIRROR® 425.776.4946 electricmirror.com sales@electricmirror.com © 2019 Electric Mirror. All rights reserved. 2.0419.MC... -
Page 2: Review Important Safety Instructions
Mirror Assembly* Mounting screws (4-pack) *Mirror glass is fragile. Keep edge protectors in place and rest mirror on a cushioned surface. Do not place on a hard surface. ELECTRIC MIRROR® 425.776.4946 electricmirror.com sales@electricmirror.com © 2019 Electric Mirror. All rights reserved. 2.0419.MC... -
Page 3: Determine The Mirror Location
≥ 36” 2.5” All other mirrors < 36” 4.75 ≥ 36” All other mirrors 5.5” *This is in addition to the 1” minimum glass clearance from the ceiling. ELECTRIC MIRROR® 425.776.4946 electricmirror.com sales@electricmirror.com © 2019 Electric Mirror. All rights reserved. 2.0419.MC... -
Page 4: Prepare The Electrical
The lighted mirror requires a switched 120V 60Hz circuit. If your mirror has additional options, there may be additional power requirements. When bringing out the wiring, leave a 3-foot whip*. *Ensure a 3’ long electrical whip is available coming out of the wall. ELECTRIC MIRROR® 425.776.4946 electricmirror.com sales@electricmirror.com © 2019 Electric Mirror. All rights reserved. 2.0419.MC... -
Page 5: Mount The Chassis
Install the bottom mounting screws. The chassis mounting is now complete. Insert the leveling screw first. Next, insert screws in the top corners. Finally, insert screws in the bottom corners. ELECTRIC MIRROR® 425.776.4946 electricmirror.com sales@electricmirror.com © 2019 Electric Mirror. All rights reserved. 2.0419.MC... -
Page 6: Connect The Electrical
Connect the black and white wires to the yellow luminaire connector. Black to black, white to white. Connect the green ground wire to the green ground connector. ELECTRIC MIRROR® 425.776.4946 electricmirror.com sales@electricmirror.com © 2019 Electric Mirror. All rights reserved. 2.0419.MC... -
Page 7: Connect Optional Upgrade Technology
If you completed the Optional Upgrade technology steps for either Ava or Keen, skip the steps listed in section 8 – Wire the Dimming Switch. Ensuring proper alignment, connect each technology’s wires from the back of the mirror to the chassis. ELECTRIC MIRROR® 425.776.4946 electricmirror.com sales@electricmirror.com © 2019 Electric Mirror. All rights reserved. 2.0419.MC... -
Page 8: Wire The Dimming Switch
If you are connecting the lighted mirror to a dimming switch, follow these instructions. If not, skip to step 9. A. D1 0-10 Volt Dimming Electric Mirror recommends Leviton IP710-LFZ (not included) for 0-10 Volt Dimming. A 0-10 Volt control signal is a DC voltage that varies between zero and ten volts. The controlled lighting should scale its output so that at 10 V, the controlled light is at 100% of its potential output, and at 0 V it should be at the lowest possible dimming level. - Page 9 Installation Guide ELECTRIC MIRROR® B. D2 Forward Phase Dimming Electric Mirror recommends Leviton IPL06-10Z (not included) for Forward Phase Dimming. Two-wire control is a line-voltage phase-control dimming method. The LED driver receives the dimming signal through the dimmed hot wire.
-
Page 10: Hang The Mirror
If you’re installing a closed-chassis mirror (one in which the LEDs are not visible on the sides), take extra care not to damage the rear surface of the mirror against the chassis wall edges. ELECTRIC MIRROR® 425.776.4946 electricmirror.com sales@electricmirror.com © 2019 Electric Mirror. All rights reserved. 2.0419.MC... - Page 11 Make sure you let the mirror swing-in closed after the hanger is centered in place on the chassis. ELECTRIC MIRROR® 425.776.4946 electricmirror.com sales@electricmirror.com © 2019 Electric Mirror. All rights reserved. 2.0419.MC...
-
Page 12: Clean The Mirror
Do not to allow the edges of the mirror to get or remain wet. Be sure to dry all joints and edges thoroughly to be certain no water or cleaner comes in contact with the edge or back surface of the mirror. ELECTRIC MIRROR® 425.776.4946 electricmirror.com sales@electricmirror.com © 2019 Electric Mirror. All rights reserved. 2.0419.MC...
