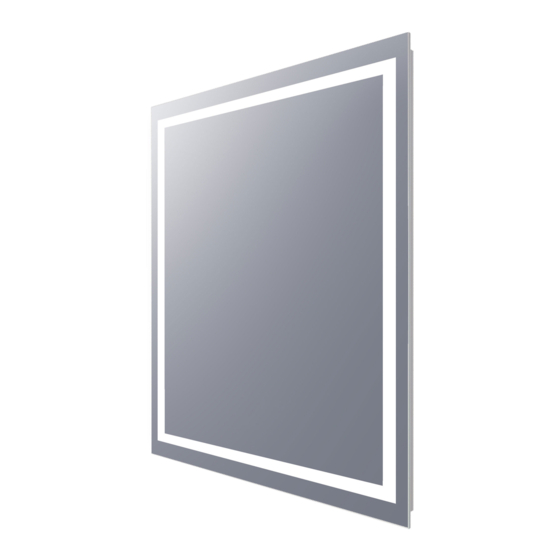

- Page 1 INTEGRITY™ LIGHTED MIRROR Installation Instructions...
- Page 2 BOX 1: CHASSIS ASSEMBLY BOX 2: MIRROR ASSEMBLY WITH INTEGRAL HANGERS Label will include part number: INT-(size)-C Label will include part number: INT-(size)-M THERE’S ONLY ONE™ ELECTRIC MIRROR® | E sales@electricmirror.com | T +1 425 776-4946 | F +1 425-491-8200 | W www.electricmirror.com...
- Page 3 The hot wire is inserted into the black port (number 1) and the neutral wire is inserted into the white port (number 2). THERE’S ONLY ONE™ ELECTRIC MIRROR® | E sales@electricmirror.com | T +1 425 776-4946 | F +1 425-491-8200 | W www.electricmirror.com...
- Page 4 Slide the mirror down inserting the chassis tabs into the hanger slots. Make sure both tabs are engaged through hanger slots and the mirror clip overlaps the hanging bracket clip. THERE’S ONLY ONE™ ELECTRIC MIRROR® | E sales@electricmirror.com | T +1 425 776-4946 | F +1 425-491-8200 | W www.electricmirror.com...
- Page 5 Keen Technology ™ Installation Guide Update 03312016GWS...
-
Page 6: Table Of Contents
6. Only the included hardware or related accessories These icons available in this package or from Electric Mirror are specified as a genuine for the purpose of identify important installation or operations. No substitutes are details considered acceptable. -
Page 7: Keen Dimming
Keen™ Installation and Operation Manual Operation Certain models of the Keen feature may include a separate power button. When the power button is pressed, it will turn off all power to the lamping for the unit. This does not turn off all power, just power to the KEEN DIMMING lamping. -
Page 8: Connecting The Keen Unit
CONNECTING THE KEEN UNIT Keen is powered from a 12V power source included in the lighted unit. Connect the DC jack into the port on The Keen unit is pre-installed on the mirror at our the Keen unit. factory. We suggest not removing the circuit board component.. -
Page 9: Fluorescent Lamp Seasoning
Keen™ Installation and Operation Manual FLUORESCENT LAMP SEASONING Seasoning fluorescent lamping helps to reduce flickering and other lamp defects. We suggest (in accordance to NEMA LSD-23-2010) leaving lamping at full power for a minimum of 12 hours. Since the Keen unit automatically dims to fewer than 50% after an hour of no interaction, there is a special order of operations to help season the lamping. -
Page 10: Mounting Troubleshooting
POWER TROUBLESHOOTING Troubleshooting Issue Solution Unit is not receiving Check cable connections MOUNTING TROUBLESHOOTING power make sure there is a solid Issue Solution connection Unit will not turn on/off Check grounding path of easily copper tape to unit Check green light on Buttons are difficult to Unit may be mounted Power Supply to confirm... -
Page 11: Warranty Information
For warranty information, visit electricmirror.com/warranty/ ©Electric Mirror LLC. All Rights Reserved. All designs, engineering drawings, images, photographs, logos and written material that appear in this document are protected by copyright. The information contained in this document is the sole property of Electric Mirror Any reproduction in part or in whole without written permission from ®.
