Summary of Contents for Electric Mirror FUSION

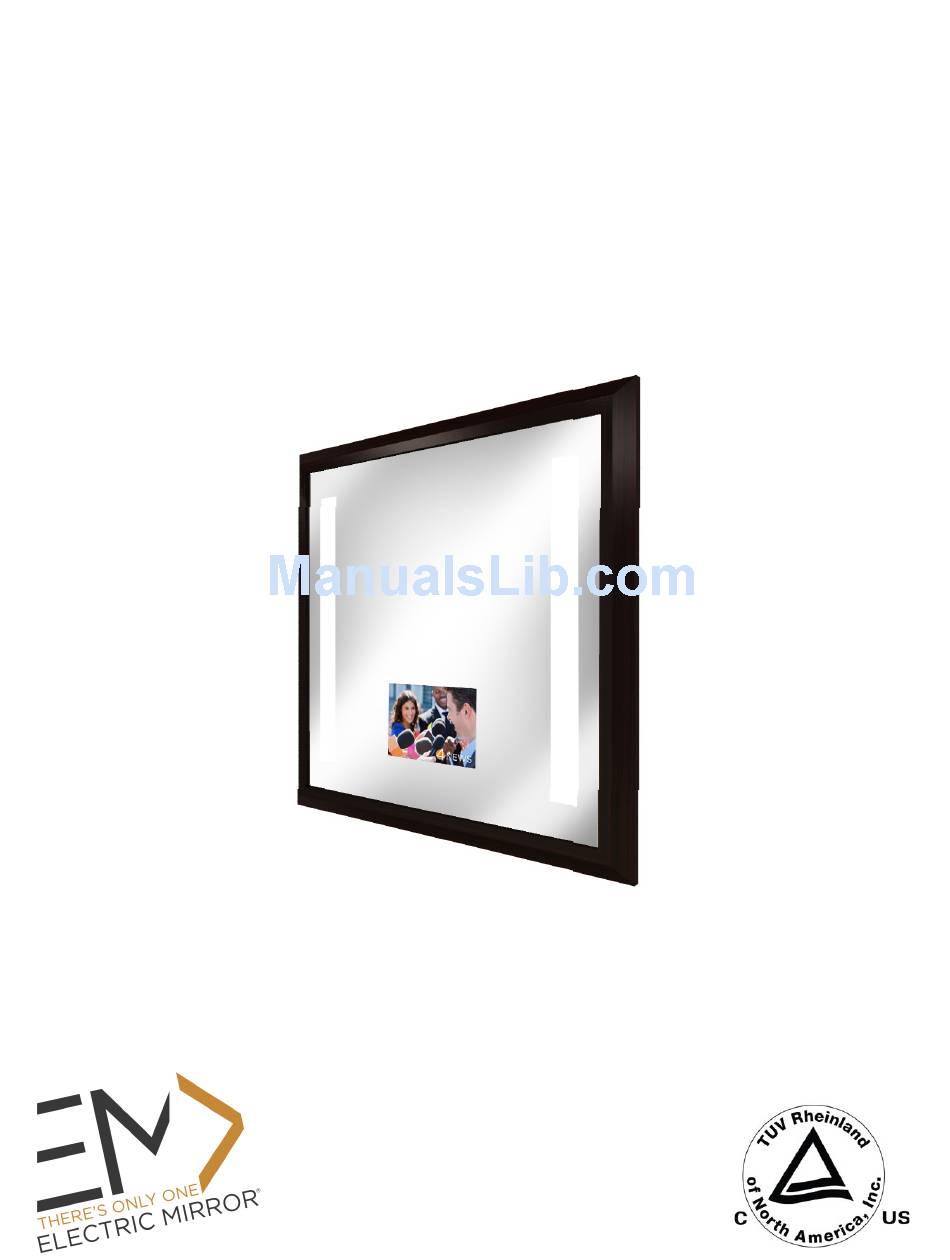

- Page 1 FUSION™ LIGHTED MIRROR TV Installation Instructions...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Must be installed by a qualified technician. Read these installation instructions. Keep these instructions for future use. Follow all instructions. Install in accordance with manufacturer’s instructions. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN DEATH OR SERIOUS BODILY HARM. FAILURE TO FOLLOW INSTRUCTIONS VOIDS WARRANTY. - Page 3 INSTALLATION 1. WALL PREPARATION Ensure that a recessed power receptacle and a video 4-port wall plate are installed behind the mirror. For the United States and Canada, the recessed receptacle may need to be on a GFCI circuit. (Please check your local jurisdiction for projects outside the United States or Canada.) The recessed receptacle and 4-port plate should be placed 21”...
- Page 4 4. WIRING DETAILS Please note, all electrical installations should be carried out by a fully qualified electrician in conformance with the National Electrical Code and local building codes. 5. TV CONNECTIONS Power supply connection. Before proceeding to power supply wiring, make sure the MC cable is brought in through the wall and into the chassis knockout.
- Page 5 Power up the TV unit and test audio and video functionality. The LCD TV operates by remote control only. Take the batteries out of the remote. Remove the safety tab, place the batteries back inside and close. Turn TV on. Hit the source button to search for RF source.
