HALSEY TAYLOR OWNERS MANUAL
Figure 1 – OVL-II ER-Q
Figure
1
2
3
4
INSTALLER
NOTE: It is common practice to ground electrical hardware such as telephones, computers and other devices to
available water lines. This can, however, cause electrical feedback in the plumbing circuit, which results in an
"electrolysis" effect occurring in the fountain. This may result in water which has a metallic taste to it or has a
noticeable increase in the metallic content of the water.
When inspecting plumbing circuit, remember the line may be grounded some distance from the installation,
and may occur outside the building or area in which the unit is being installed.
This condition can be avoided (in most cases) by using recommended materials during installation. Any drain
fittings provided by the installer should be made of plastic which will electronically isolate the fountain from the
remainder of the building's plumbing circuits.
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G

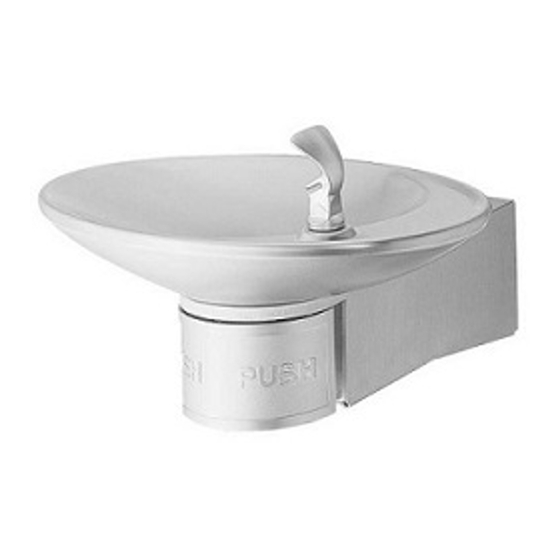

OVL
TM
Series Barrier-Free Water Coolers
Refrigerated Fountains with Back Panel
Figure 2 – OVL-II SR-Q
Model
OVL-II ER-Q
OVL-II SR-Q
OVL-II SER-Q
OVL-II ESR-Q
Review these instructions before beginning installation. Be sure that installation
conforms to all plumbing, electrical and other applicable codes.
When installation is complete, ensure these instructions are left in the plastic bag
provided inside the installed unit for future reference.
Service to be performed by authorized service personnel only.
Figure 3 – OVLII SER-Q
Description
OVL-II Series - Extended Reach
OVL-II Series - Standard Reach
OVL-II Series - Dual Installation
OVL-II Series - Dual Installation
1
Figure 4 – OVL-II ESR-Q
97881C - (Rev. E - 4/07)

Advertisement

loading
Need help?

Need help?

Do you have a question about the OVL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Halsey Taylor OVL Series

Summary of Contents for Halsey Taylor OVL Series

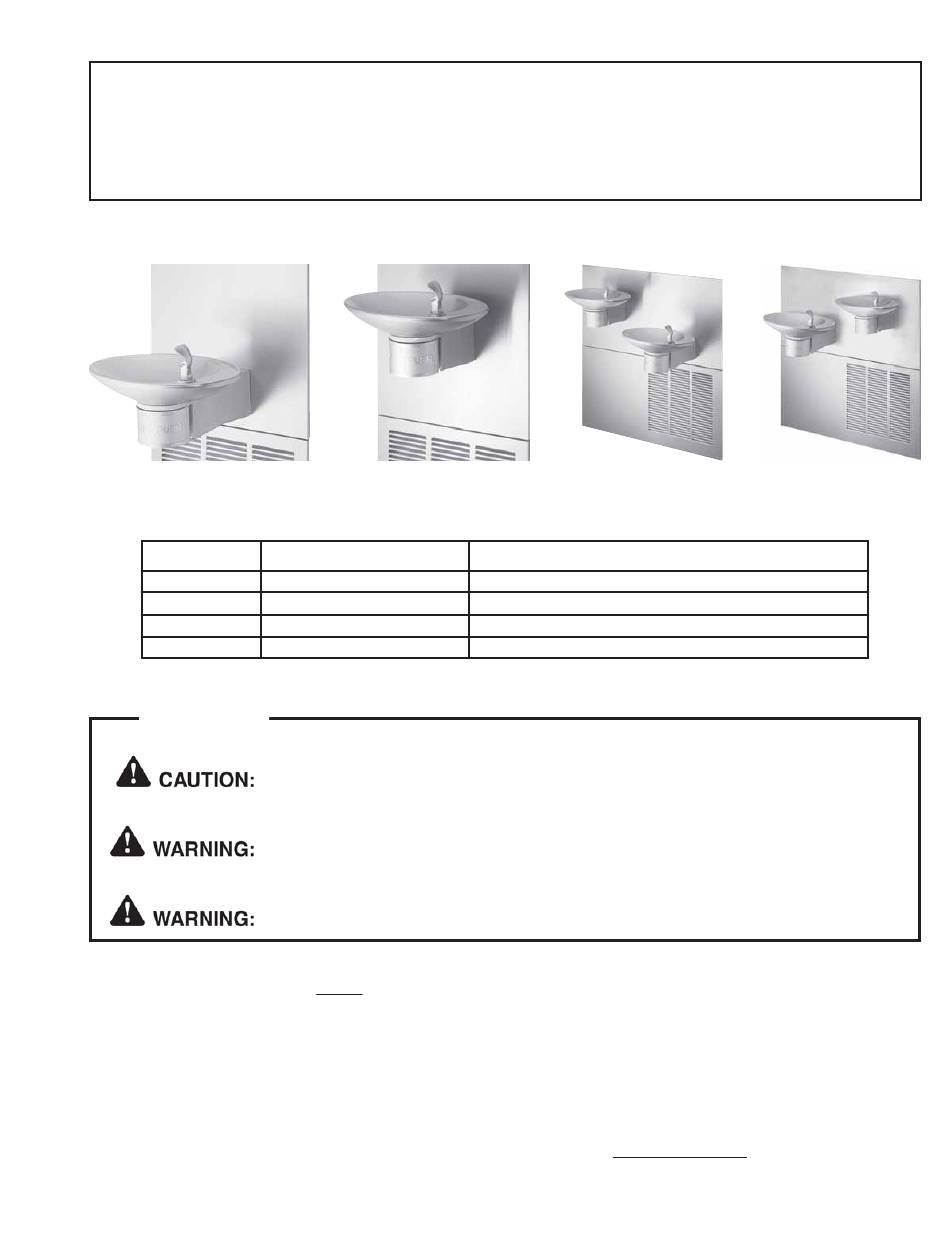

  • Page 1 OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G HALSEY TAYLOR OWNERS MANUAL Series Barrier-Free Water Coolers Refrigerated Fountains with Back Panel Figure 1 – OVL-II ER-Q Figure 2 – OVL-II SR-Q Figure 3 – OVLII SER-Q Figure 4 – OVL-II ESR-Q Figure Model Description...
