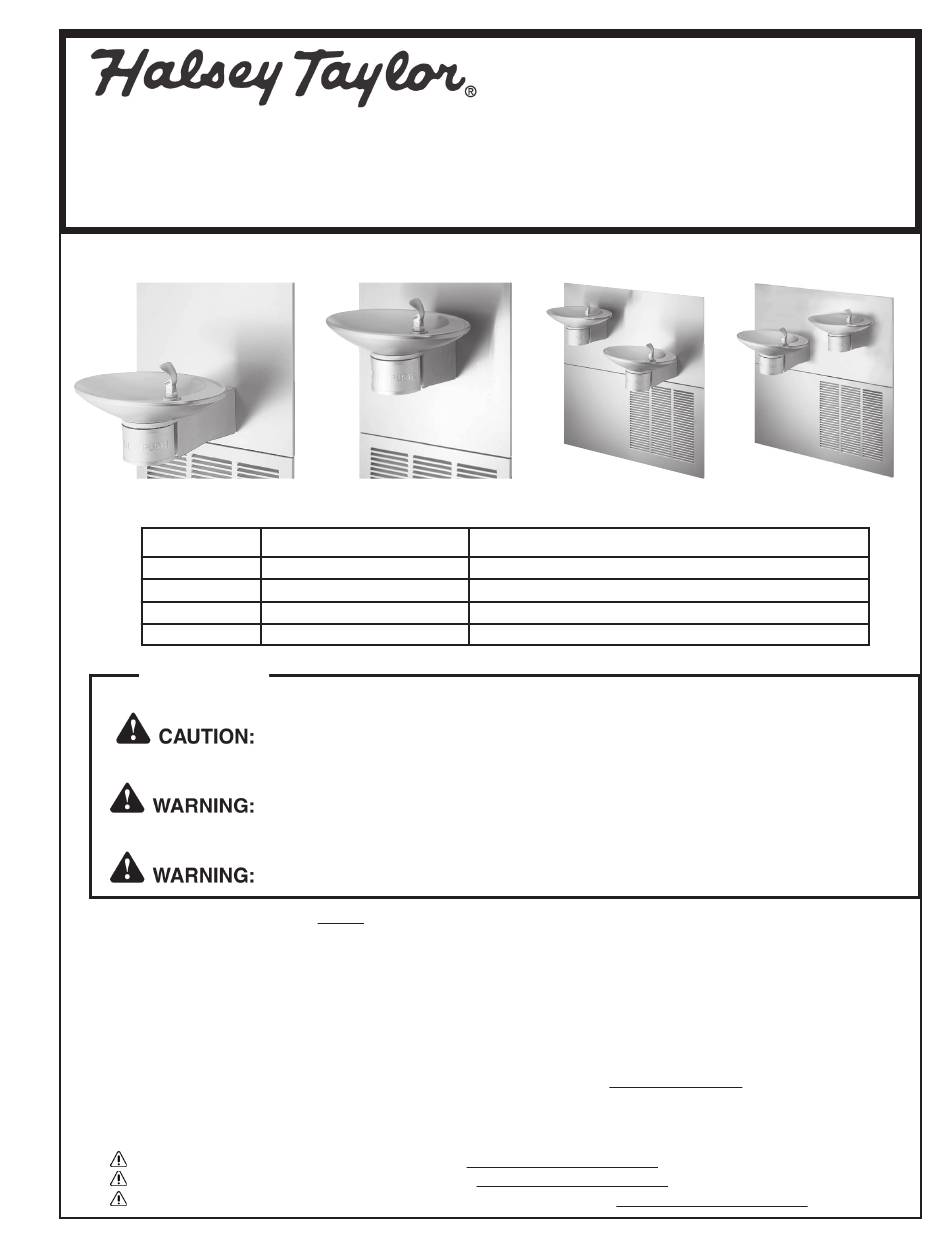

OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G
Refrigerated Fountains with Back Panel

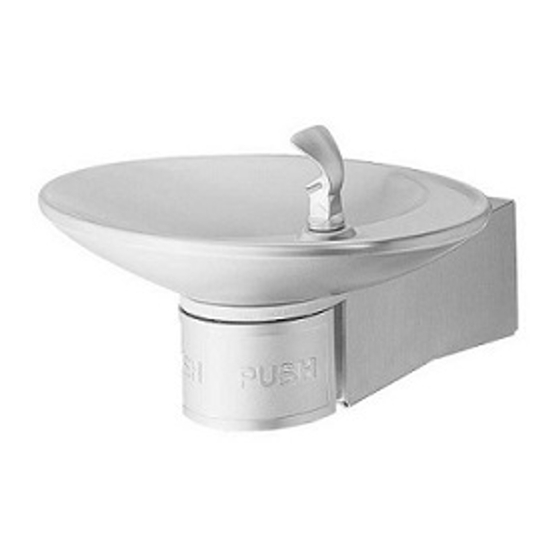

Fig. 1 – OVL-II ER
Figure
1
2
3
4
INSTALLER
Review these instructions before beginning installation. Be sure that installation
conforms to all plumbing, electrical and other applicable codes.
When installation is complete, ensure these instructions are left in the plastic bag
provided inside the installed unit for future reference.
Service to be performed by authorized service personnel only.
NOTE: It is common practice to ground electrical hardware such as telephones, computers and other devices to
available water lines. This can, however, cause electrical feedback in the plumbing circuit, which results in an
"electrolysis" effect occurring in the fountain. This may result in water which has a metallic taste to it or has a
noticeable increase in the metallic content of the water.
When inspecting plumbing circuit, remember the line may be grounded some distance from the installation, and
may occur outside the building or area in which the unit is being installed.
This condition can be avoided (in most cases) by using recommended materials during installation. Any drain
fittings provided by the installer should be made of plastic which will electronically isolate the fountain from the
remainder of the building's plumbing circuits.
Patent zurn-elkay.com/patents
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
OVL™ Series Water Coolers
Fig. 2 – OVL-II SR
Model
OVL-II ER
OVL-II SR
OVL-II SER
OVL-II ESR
Page 1
Owners Manual
Fig. 3 – OVL-II SER
Description
OVL-II Series - Extended Reach
OVL-II Series - Standard Reach
OVL-II Series - Dual Installation
OVL-II Series - Dual Installation
Fig. 4 – OVL-II ESR
97881C - (Rev. M- 04/23)
Advertisement
Related Manuals for Halsey Taylor OVL Series
Summary of Contents for Halsey Taylor OVL Series
- Page 1 OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G Owners Manual OVL™ Series Water Coolers Refrigerated Fountains with Back Panel Fig. 1 – OVL-II ER Fig. 2 – OVL-II SR Fig. 3 – OVL-II SER Fig. 4 – OVL-II ESR Figure Model Description OVL-II ER OVL-II Series - Extended Reach OVL-II SR OVL-II Series - Standard Reach...
- Page 2 OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G Installation Package 3/8” O.D. UNPLATED COP- 1/4” O.D. TUBE BUILDING WATER PER TUBE CONNECT WATER INLET The components for installation are packed in three INLET COLD WATER SUPPLY TO COOLER separate boxes, regardless of the type of unit being installed.
- Page 3 OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G Parts List Continued OVL-II ER OVL-II SR OVL-II SER OVL-II ESR Item Part No. Description Fig. 1000002027 Kit - Nut-Retaining (5 Pack) 1000001926 Kit - Hex Nut-Unplated (4 Pack) 27008C Reaction Bracket 70856C Screw - #10-24 x .38 PHMS 70854C Rod - Pivot 50198C...
- Page 4 OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G Note: Danger! Electric shock hazard. Disconnect power before servicing unit. Uses HFC-134A refrigerant Models OVL-II SER – OVL-II ESR Cut a rectangular wall opening 37-1/2” (953 mm) W x 37-3/4” H (959 mm) and 4-1/2” (114 mm) above the floor line (see Figure 7).
- Page 5 OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G Install the frame assembly squarely in wall opening Attach the chiller shelf support rods to the right with frame upright support edges flush with the finished side of the frame uprights at the second set of holes wall face.
- Page 6 OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G Cut a rectangular wall opening 18-3/4” (475 mm) W x 37-3/4” H (959 mm) and 4-1/2” (114 mm) above the floor line (see Figure 10). The dimensions are required to obtain proper rim and bubbler heights for compliance with ANSI standard A117.1.
- Page 7 OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G Install the frame squarely in wall opening with frame of wall opening. Secure the frame sides and top to upright edges flush with the finished wall surface. the wall opening using (10) 5/16” bolts or screws (not Place shelf inside frame and line up the (2) holes on provided).
-
Page 8: Required Tools And Materials
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G 5. Install fountain. Remove access cover plate on REQUIRED TOOLS AND MATERIALS underside of fountains and SAVE the screws. Mount These tables show special tools and/or additional materials the fountains to the upper panel and frame with (not provided) which are necessary to complete installation (4) 5/16”... - Page 9 OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G DO NOT SOLDER tubes while inserted into the strainer as damage to o-rings may result. These products are designed to operate on 20-105 PSI supply line pressure. If inlet pressure is above 105 PSI, a pressure regulator must be installed in the supply line.
- Page 10 OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G TO BUBBLER 1. Install chiller: Remove front panel of chiller. Remove and discard cardboard inner pack from between compressor and side panel. Slide chiller onto the shelf and position it to the left as per dimensions in Figure 1.
-
Page 11: Troubleshooting And Maintenance
OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G TROUBLESHOOTING & MAINTENANCE Orifice Assembly: Mineral deposits on orifice can cause water flow to spurt or not regulate. Mineral deposits may be removed from the orifice by poking with a small round file not over 1/8” diameter, or using a small diameter wire. file or cut orifice material. - Page 12 OVLERQ*D OVLSRQ*D OVLESRQ*G OVLSERQ*G 3, 4 3, 4 Regulator 3, 4 Mounting Bracket 3, 4 Figure 25 – Regulator Assembly Fig. 26- Smart Flow™ Bubbler Detail 3, 4 See Fig. 24 See Fig. 23 See Fig. 25 Figure 27 – Fountain Assembly - Side View 1333 BUTTERFIELD ROAD, DOWNERS GROVE, IL 60515 630.574.3500...
