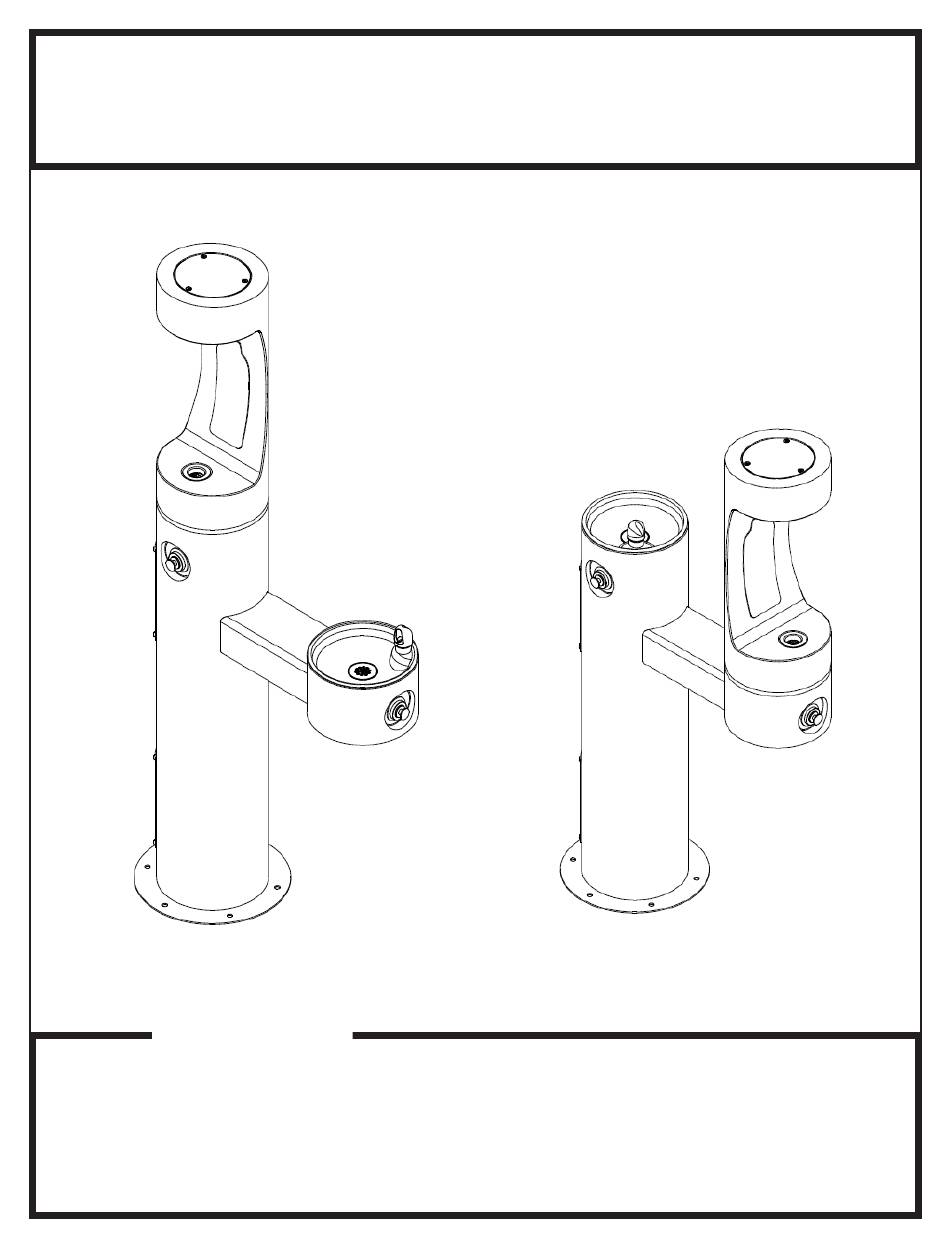

4420BFFR_FTN _A
LK4420BFFR_FTN_A
Owners Manual

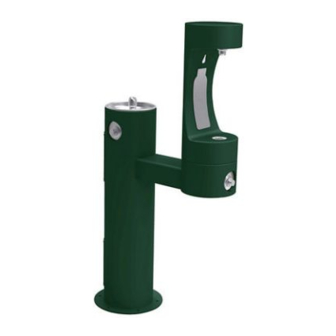

4420 Bottle Filler Tubular Fountain
with Sanitary Freeze Resistant Dual Valve Control Assembly
MODEL 4420BF1UFR
MODEL 4420BF1LFR
INSTALLER
4420BFFR Fountains are among the easiest to install Fountains on the market today. To assure
you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS
BEFORE STARTING THE INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE
WITH PLUMBING, ELECTRICAL, AND OTHER APPLICABLE CODES. After installation, save these
instructions for future reference.
PAGE 1
1000003686 (Rev. D - 03/20)
Advertisement
Related Manuals for Halsey Taylor 4420BFFR FTN A Series
Summary of Contents for Halsey Taylor 4420BFFR FTN A Series
- Page 1 4420BFFR_FTN _A LK4420BFFR_FTN_A Owners Manual 4420 Bottle Filler Tubular Fountain with Sanitary Freeze Resistant Dual Valve Control Assembly MODEL 4420BF1UFR MODEL 4420BF1LFR INSTALLER 4420BFFR Fountains are among the easiest to install Fountains on the market today. To assure you install these models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLATION.
-
Page 2: Installation Instructions
4420BFFR_FTN_A LK4420BFFR_FTN_A INSTALLATION INSTRUCTIONS IMPORTANT ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON IMPORTANT! INSTALLER PLEASE NOTE. THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING. - Page 3 4420BFFR_FTN _A LK4420BFFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4420FR FTN. WHEN USING THE SANITARYFR2 VALVE 4" PVC 1/4 BEND (SUPPLIED BY INSTALLER) 1-1/2" DRAIN TUBE (SUPPLIED BY INSTALLER) 4" PVC PIPE (SUPPLIED BY INSTALLER) CONCRETE SLAB CLEANOUT PLUG FOR ACCESS 4"...
- Page 4 4420BFFR_FTN_A LK4420BFFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4420BF1UFR FTN. WHEN USING THE SANITARYFR2 VALVE 1-1/2 DRAIN TUBE SUPPLIED WITH FTN. ( 6 ) 1/2" ( 13mm ) DIA. HOLES EQUALLY SPACED ON A 12" ( 305mm ) BOLT CENTER AIR GAP ASSY.
- Page 5 4420BFFR_FTN _A LK4420BFFR_FTN_A SUGGESTED SITE PREPARATION DETAIL FOR THE 4420BF1LFR FTN. WHEN USING THE SANITARYFR2 VALVE 29" 737mm ( 6 ) 1/2" ( 13mm ) DIA. HOLES EQUALLY SPACED ON A 12" ( 305mm ) BOLT CENTER 14" 356mm 3" 76mm 10"...
- Page 6 4420BFFR_FTN_A LK4420BFFR_FTN_A FOUNTAIN CONNECTIONS PLUMBING CONDUIT (BY INSTALLER) TO VALVE FIG. 4 INSTRUCTIONS FOR CONNECTING TUBES FROM VALVE TO FOUNTAIN(S) Step 1 - Insert the 1/8” O.D. tube(s) (Labeled A & B) into the connector(s) (provided with fountain). Insert the 1/8” O.D.
- Page 7 4420BFFR_FTN _A LK4420BFFR_FTN_A Stream Height Adjustment 5, 13 SEE DETAIL B DETAIL B FIG. 5 PAGE 7 1000003686 (Rev. D - 03/20)
-
Page 8: Parts List
4420BFFR_FTN_A LK4420BFFR_FTN_A The Following Items are included with the SanitaryFR2 Valve PARTS LIST DESCRIPTION ITEM NO. PART NO. 110175443890 Hex Nut - 3/8-16 28424C Bracket - Regulator Holder 40045C Hex Nut - 1-5/16 45807C Dual Valve 50986C Regulator Holder 56082C Regulator Nut 56092C Poly Tubing - 1/4”... - Page 9 4420BFFR_FTN _A LK4420BFFR_FTN_A INSTALLATION INSTRUCTIONS IMPORTANT ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON IMPORTANT! INSTALLER PLEASE NOTE. THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE BUILDING.
- Page 10 4420BFFR_FTN_A LK4420BFFR_FTN_A 25, 29 41, 41a, 41b 40, 40a, 40b 25, 30 ARM ONLY 27 FIG. 8 25, 30 Included with FIG. 9 Sanitary Valve 1000003686 (Rev. D - 03/20) PAGE 10...
-
Page 11: Troubleshooting And Maintenance
Brown = BRN Red = RED PRINTED IN U.S.A. FOR PARTS CONTACT YOUR LOCAL DISTRIBUTOR OR CALL TECHNICAL SERVICES AT 1.800.834.4816 Halsey Taylor – halseytaylor.com 1333 BUTTERFIELD RD, DOWNERS GROVE, ILLINOIS 60515 Elkay – elkay.com PAGE 11 1000003686 (Rev. D - 03/20)
