SP-RANGE
CONTROLS

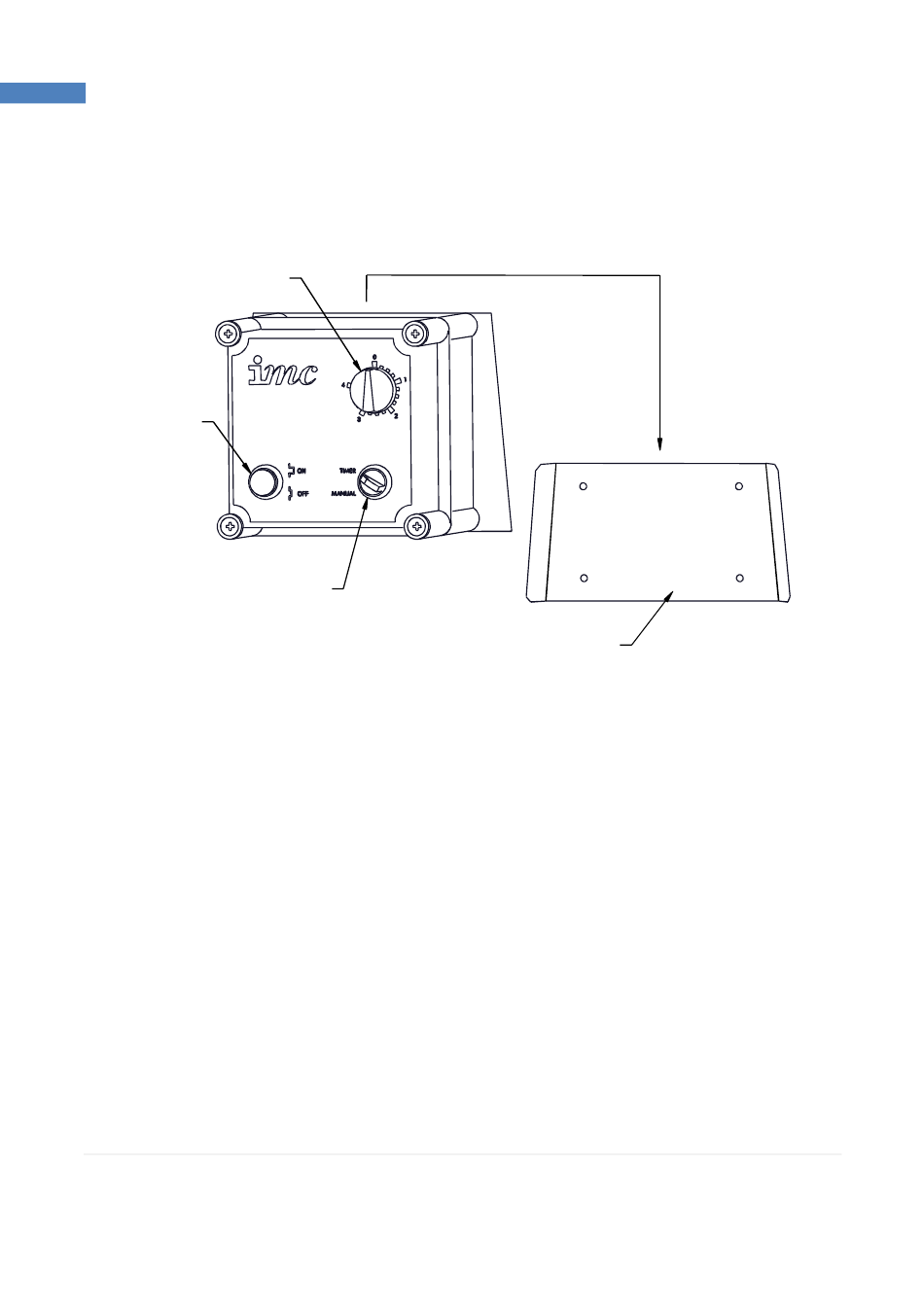

The peeler has a separate box for mounting on a wall bracket near the machine.
TIMER
ON/OFF
BUTTON
TIMER / MANUAL
SELECTOR SWITCH
Note: Control boxes for three phase machines have separate on and off buttons
INSTALLATION
For the Installer:
· These instructions contain important information designed to help the user obtain the
maximum benefit from the investment in an IMC SP Peeler.
· Please read them carefully before starting work, and consult with the supplier in the event of
any queries.
· Be sure to leave this instruction manual with the user after the installation of the machine is
complete.
Procedure:
The SP Range is supplied with a pedestal and is designed to be bolted to the floor. The control box is
designed to be mounted on a wall bracket so that it is easily accessible once the machine is installed.
Place the machine in its desired location and mark through the pedestal base the location of the five
floor fixing holes. Remove the machine and prepare the floor for rawl bolts or other suitable floor
fixings. Replace the unit into working position and fit the rawl bolts or other fixings. Tighten up the
fixings.
6 |
P a g e
WALL BRACKET
