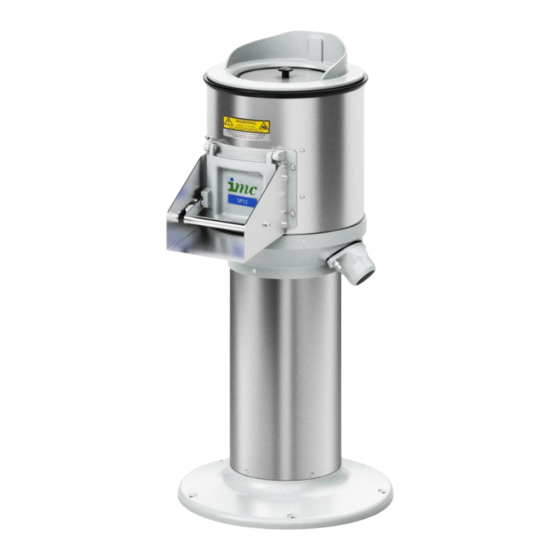

IMC SP25 Installation, Operating And Servicing Instruction
Hide thumbs
Also See for SP25:
- Installation and operating manual (20 pages) ,
- Installation, operating and maintenance manual (21 pages)
Advertisement
Quick Links
Installation, Operating and Servicing
Instructions
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
________________________________
_______
A34/013 R11
SP12 & SP25 – SERIES 4
ECN 4825 February 2021
Advertisement
Related Manuals for IMC SP25
Summary of Contents for IMC SP25
- Page 1 SP12 & SP25 – SERIES 4 Installation, Operating and Servicing Instructions Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ ________________________________ _______ A34/013 R11 ECN 4825 February 2021...
- Page 2 CONTENTS IMPORTANT INFORMATION ................1 DELIVERY ......................2 INTRODUCTION ....................3 YOUR PEELER ....................3 CONTROLS ......................4 INSTALLATION ....................4 PROCEDURE ....................... 4 WATER SUPPLY ....................5 WASTE OUTLET CONNECTION ................. 5 WASTE EJECTOR ....................6 Fitting the waste ejector ................. 6 Waste Ejector adjustments ................
- Page 3 IMPORTANT INFORMATION Read these instructions carefully before using this product, paying particular attention to all sections that carry warning symbols, caution symbols and notices. Ensure that these are understood at all times WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product.
- Page 4 DELIVERY The packaged machine consists of: Peeler Unit, with lid, control box and mounting bracket Peeling plate Water supply pipe and 2 hose clips 1m long 3” flexible waste hose and hose clip Instruction Booklet If any accessories have been ordered they will be supplied in separate packages. Please notify both the carrier and the supplier within 24 hours of receipt if anything is missing or damaged.
- Page 5 INTRODUCTION This machine is intended for peeling potatoes. Its use may be extended to other root vegetables. It is not recommended to use this machine for peeling onions. YOUR PEELER SPLASH COVER CONTROL BOX DOOR CHUTE MOUNTING BRACKET DOOR HANDLE WASTE OUTLET...
- Page 6 For the Installer: These Instructions contain important information designed to help the user obtain the maximum benefit from the investment in an IMC SP Peeler. Please read them carefully before starting work, and consult with the supplier in the event of any queries.
- Page 7 If required, secure with the hose clip supplied. Longer lengths of flexible hose are available from IMC on request. The waste outlet also incorporates a 2” BSP female thread for connection to standard 54mm (2”) waste pipe.
- Page 8 WASTE EJECTOR The waste ejector is an optional fitting that dilutes the waste sludge to enable it to flow easily through the drains without fear of blockage. Waste Ejectors are not recommended in the follow circumstances; A pipe run exceeding 15m between the machine and main drain ...
- Page 9 A dedicated supply to the socket is recommended and it should be protected by a C or D class circuit breaker rated at 10A for the SP12 and 16A for the SP25. Three phase machines should be connected to a 15A isolator providing at least 3mm separation in all poles.
- Page 10 COMMISSIONING After making the electrical connection, switch on the machine, and check that the direction of rotation of the peeling plate is CLOCKWISE when viewed from above. The direction of rotation of single phase units is set at the factory. If it is not rotating in the correct direction contact Lincat.
- Page 11 SAFETY All SP-Range peelers are controlled so that if the electricity supply is interrupted the machine will not restart automatically. All single phase SP-Range controls are fitted with a thermal trip. This ensures that the controls cannot overheat and become damaged. If the thermal trip cuts in, the machine will not run until it has cooled down and the peeler is switched off and on again.
- Page 12 MAINTENANCE Other than regular cleaning the SP-Range of peelers require no maintenance by the end user. It is recommended that the unit is serviced by a Lincat approved engineer at least once a year. The motor in the single phase units is controlled via an inverter. The following warnings must be observer before working on this unit.
- Page 13 WIRING DIAGRAM SINGLE PHASE UNITS...
- Page 14 WIRING DIAGRAM THREE PHASE UNITS...
- Page 15 PARTS ILLUSTRATION...
- Page 16 E58/111 Wall Bracket (3ph) E58/111 Wall Bracket (3ph) S58/587 SP12 Control Box 1ph (Inverter) S58/588 SP25 Control Box 1ph (Inverter) (Inc. Wall Bracket & cables) (Inc. Wall Bracket & cables) S58/596 SP12 Control box 3ph S58/595 SP25 Control box 3ph (Inc.
- Page 17 1PH CONTROL BOX SPARE PARTS LIST SP12 SP25 Item Part No Description Part No Description E58/096 Mounting Bracket E58/096 Mounting Bracket E58/097 Wall Bracket (Not shown) E58/097 Wall Bracket (Not shown) G76/031 M2 Control Box G76/031 M2 Control Box D21/052...
- Page 18 3PH CONTROL BOX SPARE PARTS LIST 15 16 17 SP12 SP25 Item Part No Description Part No Description E58/117 Mounting Bracket E58/117 Mounting Bracket E58/119 Wall Bracket E58/119 Wall Bracket G76/041 M1 Control Box (inc lid) G76/041 M1 Control Box (inc lid)
- Page 19 GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights. The guarantee does not cover: Accidental damage, misuse or use not in accordance with the manufacturer’s instructions.
- Page 20 SERVICE INFORMATION For help with the installation, maintenance and use of your Lincat equipment, please contact our service department: UK: 01522 875520 For non-UK customers, please contact your local Lincat dealer All service work, other than routine cleaning should be carried out by one of our authorised service agents.
