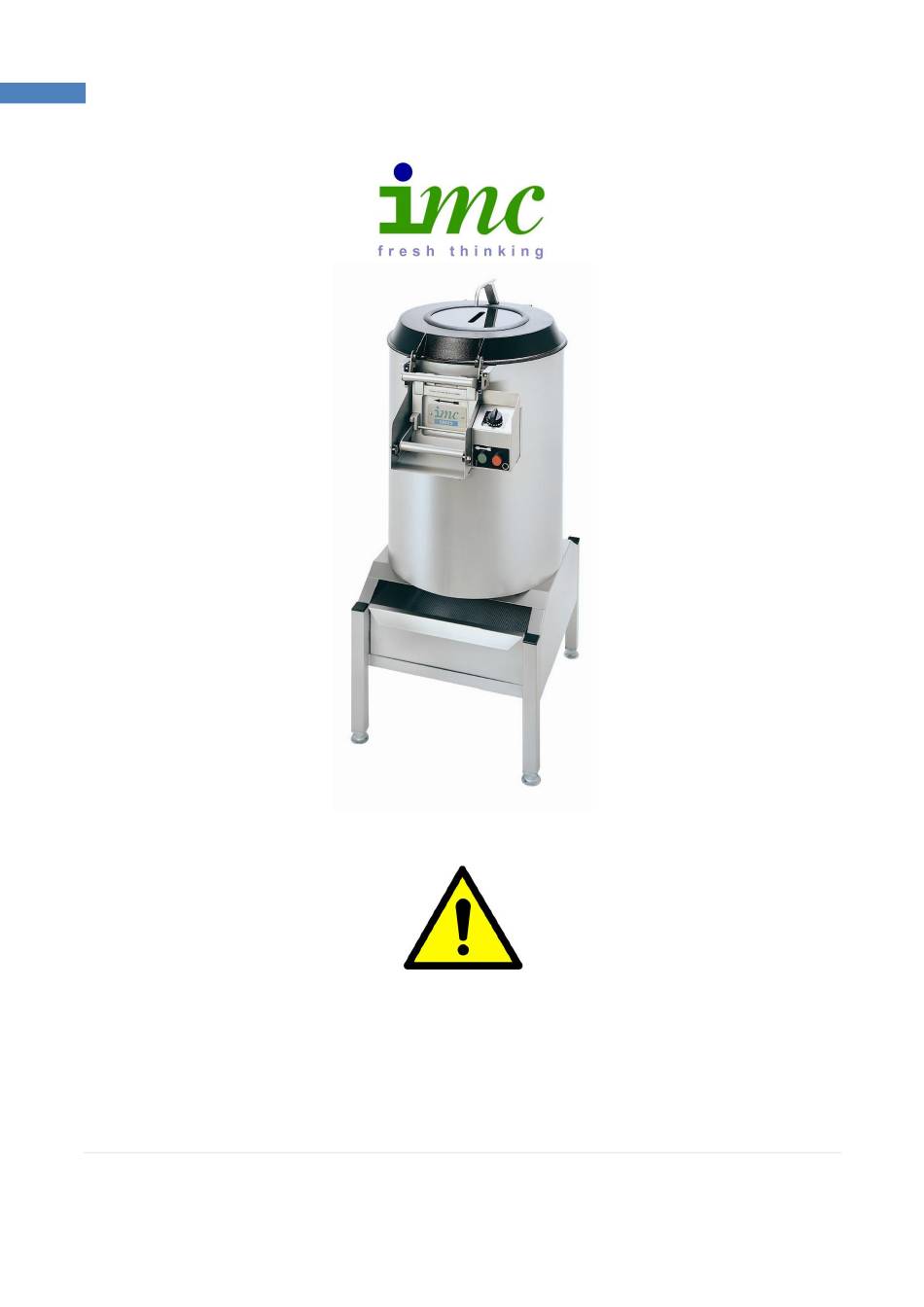

- Page 1 SMP-RANGE SMP25 SMP25 – SERIES 1 INSTALLATION AND OPERATING MANUAL PLEASE LEAVE WITH OPERATOR A34/033 R5 ECN 8671 October 2017 P a g e...
- Page 2 SMP-RANGE EC DECLARATION OF CONFORMITY (Guarantee of Production Quality) We, Imperial Machine Company Limited of: Unit 1, Abbey Road, Wrexham Industrial Estate, Wrexham, LL13 9RF Declare under our sole responsibility that the machine SMP25 – SERIES 1 As described in the attached technical documentation is in conformity with the Machine Safety Directive 98/37/EC and is manufactured under quality system BS EN ISO 9001.
-
Page 3: Table Of Contents
SMP-RANGE CONTENTS GUARANTEE ........................4 DELIVERY ......................... 4 SAMPLE RATING LABEL....................4 INTRODUCTION ....................... 5 YOUR PEELER ........................5 CONTROLS ........................6 INSTALLATION ......................... 7 WATER SUPPLY ........................ 7 WASTE OUTLET ........................ 7 ELECTRICITY SUPPLY CONNECTION ................. 8 COMMISSIONING ......................9 OPERATION ........................ -
Page 4: Guarantee
SMP-RANGE GUARANTEE This equipment is guaranteed by IMC for 2 Years from the date of purchase from IMC or from one of its stockists, dealers or distributors. The guarantee is limited to the replacement of faulty parts or products and excludes any consequential loss or expense incurred by purchasers. -
Page 5: Introduction
SMP-RANGE INTRODUCTION This machine is intended for peeling potatoes. Its use may be extended to other root vegetables. It is not recommended to use this machine for peeling onions. YOUR PEELER P a g e... -
Page 6: Controls
SMP-RANGE CONTROLS The peeler has an integral control box on the machine. P a g e... -
Page 7: Installation
WATER SUPPLY Connect the water supply pipe (IMC Inlet Hose Kit Part No. S58/062, or 12mm (1/2”) bore hose) to the water inlet pipe located on the top of the lid and secure using hose clips. Fit the other end of the supply pipe to a cold water supply that incorporates a tap or shut off valve that can be used to regulate the water flow to approximately 3 –... -
Page 8: Electricity Supply Connection
3 phases and earth. An equipotential earthing point is located on the back of the cylinder near the cable outlet if equipotential bonding is required. Should the mains lead become damaged, it must be replaced by an IMC service agent or a qualified electrician in order to avoid a hazard. -
Page 9: Commissioning
SMP-RANGE COMMISSIONING After making the electrical connection, switch on the machine, and check that the direction of rotation of the peeling plate is CLOCKWISE when viewed from above. To change the direction of rotation of three phase units, switch off the machine, isolate the supply and interchange any two of the phase wires. -
Page 10: Safety
SMP-RANGE SAFETY The SMP peeler is controlled so that if the electricity supply is interrupted the machine will not restart automatically. ON NO ACCOUNT put a hand or implement into the machine, or wedge the door open while discharging. ON NO ACCOUNT overfill the machine, as this could invalidate the warranty. -
Page 11: Do's And Don'ts
Other than regular cleaning, the SMP-Range of peelers require no maintenance by the end user. It is recommended that the unit is serviced by an IMC approved engineer at least once a year. WARNING. Only suitably qualified personnel should service this equipment after becoming familiar with all safety notices, installation, operation and maintenance procedures related to the machine. -
Page 12: Wiring Diagram 3Ph Units
SMP-RANGE WIRING DIAGRAM 3PH UNITS 12 | P a g e... -
Page 13: Parts Illustration
SMP-RANGE PARTS ILLUSTRATION 12 & 13 25 & 26 13 | P a g e... -
Page 14: Spare Parts List
SMP-RANGE SPARE PARTS LIST SMP25 SPARE PARTS ITEM PART NUMBER DESCRIPTION S59/226 CATCH TRAY S59/225 STAND ASSEMBLY G40/216 MOTOR GEARBOX 0.75kW 3PH S58/549 BEARING HOUSING ASSEMBLY A02/070 O-RING L21/048 ECCENTRIC DOOR ROLLER S59/253 HANDLE ASSY A13/078 M1 NEOPRENE SPONGE SEAL S59/104 LIMIT SWITCH ASSY E59/085... -
Page 15: 3Ph Electrical Chassis & Control Box
SMP-RANGE 3PH ELECTRICAL CHASSIS & CONTROL BOX 34b & c 15 | P a g e... -
Page 16: Electrical Spare Parts List
SERIAL NUMBER of the machine. This is to be found on the rating plate located near the supply cable. For installations outside the UK, please contact your supplier. For information on IMC spares and service support (if applicable), please call IMC on +44 (0)1978 661155. Alternatively, contact us via email or fax:...
