Installation, Operating and Servicing
Instructions
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
A34/003 R1
Dealer:_________________________________
________________________________
_______
A34/003 R2
MF5, MF10 & MF15 – SERIES 1
ECN 4825 February 2021
Advertisement
Table of Contents
Related Manuals for IMC MF5
Summary of Contents for IMC MF5
- Page 1 MF5, MF10 & MF15 – SERIES 1 Installation, Operating and Servicing Instructions Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ A34/003 R1 Dealer:_________________________________ ________________________________ _______ A34/003 R2 ECN 4825 February 2021...
-
Page 2: Table Of Contents
M5 ........................4 M10 on stand ....................4 M15 on stand ....................5 INSTALLATION ....................6 PROCEDURE ....................... 6 MF5 Bench installation ................... 6 MF5 Bench mounting points................6 Stand installation .................... 7 ELECTRICITY SUPPLY CONNECTION .............. 7 WATER SUPPLY ....................8 COMMISSIONING .................... -
Page 3: Important Information
IMPORTANT INFORMATION Read these instructions carefully before using this product, paying particular attention to all sections that carry warning symbols, caution symbols and notices. Ensure that these are understood at all times WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. -
Page 4: Delivery
DELIVERY The packaged machine consists of: Peeler Unit Peeling plate Stand and filter basket 1 (MF10 and MF15 only) Water supply pipe and fixings Instruction Booklet Gritted Liners on L units only Please notify both the carrier and the supplier within 24 hours of receipt if anything is missing or damaged. -
Page 5: M10 On Stand

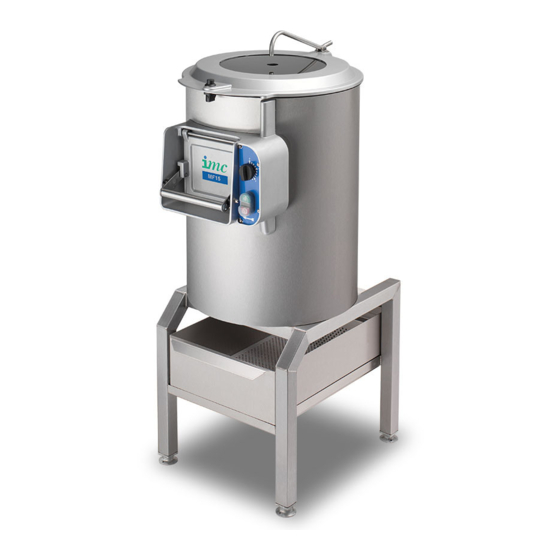

M10 on stand M15 on stand Page 5 of 14... -
Page 6: Installation
Procedure MF5 Bench installation The MF5 is designed to stand on a bench, table, or on a draining board. DO NOT mount or operate the unit in a sink. Ensure that whatever is used for this purpose is sturdy and rigid and not more than 750mm high. A higher table makes it difficult to load the machine. -
Page 7: Stand Installation
Stand installation The MF10 & MF15 are supplied mounted on floor standing stands that incorporate filter baskets. The stand should be levelled using the adjustable feet. It is possible to fix the stand to the floor, if required, by screwing through to holes in the feet. The waste is discharged from the waste hose via a Filter Basket into the drain tray of the stand, which has a 38mm waste pipe connection. -
Page 8: Water Supply
The wires in the mains lead for three phase supply are coloured: Green and Yellow Earth Black Phase 1 Grey Phase 2 Brown Phase 3 The 3 phase machines do not have a neutral wire, if the supply has a neutral wire isolate it and only wire the unit to the 3 phases and earth. -
Page 9: Operation
OPERATION MF Range Universal Peelers are particularly easy to use, and feature a safety specification that prevents the operator touching any moving parts during operation. The operating procedure is as follows: Fit the appropriate bottom plate, ensuring that it is properly located on the drive shaft. -
Page 10: Optional Plates
OPTIONAL PLATES Washing Plate - used for washing new crop potatoes and carrots, or main crop potatoes that are to be cooked without peeling, for example jacket potatoes. Cannot be used with liner versions. Mussel Washing Plate - this plate cleans all but the most stubborn dirt from mussels prior to cooking. -
Page 11: Safety
SAFETY All MF-Range machines are fitted with a number of safety features to prevent operator injury. No-volt release: If the electricity supply is interrupted the machine will not restart until the green start button is pressed again. Lid interlock: If the lid is opened during operation the motor automatically cuts out and cannot be restarted until the lid is closed and the green start button has been pressed. -
Page 12: Maintenance
MAINTENANCE Other than regular cleaning the MF-Range peelers require no maintenance by the end user. It is recommended that the unit is serviced by a Lincat approved engineer at least once a year. Details of Lincat Service Contracts are available on application. DO’S AND DON’TS Install on a level service. -
Page 13: Guarantee
GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights. The guarantee does not cover: Accidental damage, misuse or use not in accordance with the manufacturer’s instructions. -
Page 14: Service Information
SERVICE INFORMATION For help with the installation, maintenance and use of your Lincat equipment, please contact our service department: UK: 01522 875520 For non-UK customers, please contact your local Lincat dealer All service work, other than routine cleaning should be carried out by one of our authorised service agents.
