Installation, Operating and Servicing
Instructions
Please make a note of your product details for
future use:
Date Purchased: _________________________
Model Number: __________________________
Serial Number: __________________________
Dealer: ________________________________
________________________________
_______
A34/109 R1
Page | 1

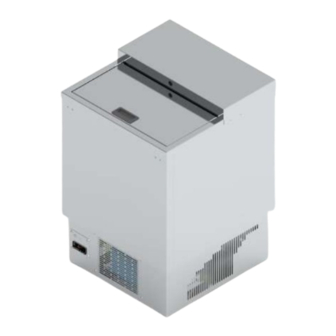

FROSTAR FR60 AND FR90
ECN 4825 October 2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IMC FROSTAR FR60
Summary of Contents for IMC FROSTAR FR60
- Page 1 FROSTAR FR60 AND FR90 Installation, Operating and Servicing Instructions Please make a note of your product details for future use: Date Purchased: _________________________ Model Number: __________________________ Serial Number: __________________________ Dealer: ________________________________ ________________________________ _______ A34/109 R1 ECN 4825 October 2022 Page | 1...
-
Page 2: Table Of Contents
CONTENTS WARRANTY ....................... 3 DELIVERY......................3 INTODUCTION ....................3 INSTALLATION ....................5 TURNING LED LIGHTS ON-OFF ....... Error! Bookmark not defined. REVERSING DIRECTION OF DOOR ....Error! Bookmark not defined. ELECTRICITY SUPPLY CONNECTION ............6 COMMISSIONING ..................... 6 CHANGING THE CONTROLLER SET POINT ........... 7 USING YOUR BOTTLE COOLER .............. -
Page 3: Warranty
WARRANTY This equipment is guaranteed by Lincat/IMC for 2 years from the date of purchase from Lincat/IMC, or from one of its stockists, dealers or distributors. The guarantee is limited to the replacement of faulty parts or products and excludes any consequential loss or expense incurred by the purchaser. Defects... - Page 4 Frostar FR60 Dimensions: LIGHT SWITCH THIS GRILL MUST BE REMOVED IN ORDER REFRIGERATION TO CLEAN THE AIR FILTER MAINS CONTROLLER CABLE Frostar FR60 Dimensions: The internal dimensions of the FR60 are 550mm high, by 526mm wide, by 500mm deep. Page | 4...
-
Page 5: Installation
INSTALLATION For the Installer These Instructions contain important information designed to help the user obtain the maximum benefit from their investment in a Lincat/IMC Mistral Bottle Cooler. Please read them carefully before starting work, and consult with the supplier in the event of any queries. -
Page 6: Electricity Supply Connection
ELECTRICITY SUPPLY CONNECTION Position the unit in the chosen site. The electricity supply connection should be made to a power outlet socket or isolator mounted on the wall close to the machine. This socket or isolator must be accessible once the machine is installed. -
Page 7: Changing The Controller Set Point
CHANGING THE CONTROLLER SET POINT The electronic temperature controller is factory set to -12°C and will cycle the air temperature between ± 2°. The set point can be adjusted between 5°C and -12°C by following the button sequence below: Press SET the current SET Point will be displayed, if Loc is displayed then the controller is locked, to unlock press and hold the SET button for 3 seconds, UnL will then be displayed. -
Page 8: Cleaning
When the unit is not going to be used for several weeks, run it for 24 hours after emptying it, to ensure that all condensate water evaporates. MAKING THE BEST USE OF THE CABINETS Do not overload the cabinet. There should be a gap of at least 40mm above the merchandise on the top shelf, and merchandise should be spaced to allow the circulation of cooled air throughout the cabinet. -
Page 9: Maintenance
Other than regular cleaning the unit requires no maintenance by the end user. It is recommended that the unit is serviced by a Lincat/IMC approved engineer at least once a year. Details of IMC Service Contracts are available on application. -
Page 10: End Of Life Disposal
END OF LIFE DISPOSAL At the end of its useful life the unit must be disposed of correctly and safely, to meet the requirements of EU legislation regarding the recovery of ozone depleting substances. The unit must be sent to a specialist recovery, recycling and disposal site that is licensed for the disposal of refrigerated equipment. -
Page 11: Spare Parts List
SPARE PARTS LIST Frostar FR60 Part No Description A12/047 Wire Shelf (large) A12/048 Wire Shelf (small) 849407 Plinth Grille Cover (Stainless Steel) E49/407/B Plinth Grille Cover (Black Painted) A21/011 Lock, clip & keys G30/545 Electronic Controller G60/348 Mains Cable S49/175... -
Page 12: Ordering Spare Parts
For installations outside the UK please contact your supplier. For information on IMC spares and service support (if applicable), please call Lincat on +44 (0) 1522 875520. Alternatively, contact us via email: Lincat Spares Desk E-mail: spares@Lincat.co.uk...
