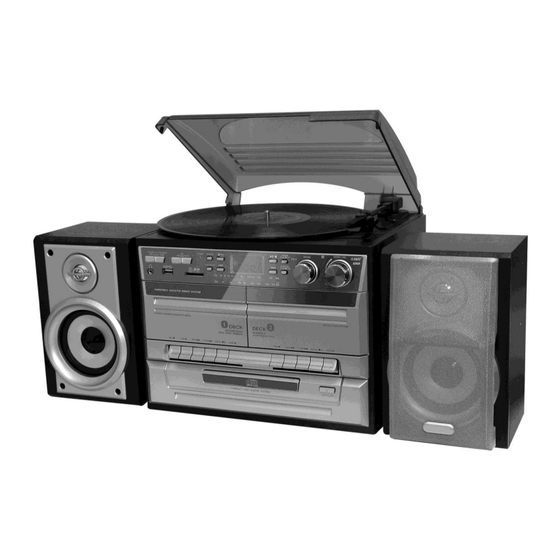

Lenoxx CD114BL Instruction Manual
Cd/mp3 system with turntable, am/fm radio, double cassette and usb/sd recording
Hide thumbs
Also See for CD114BL:
- Instruction manual (13 pages) ,
- Instructions manual (15 pages) ,
- Manual (21 pages)
Related Manuals for Lenoxx CD114BL
Summary of Contents for Lenoxx CD114BL

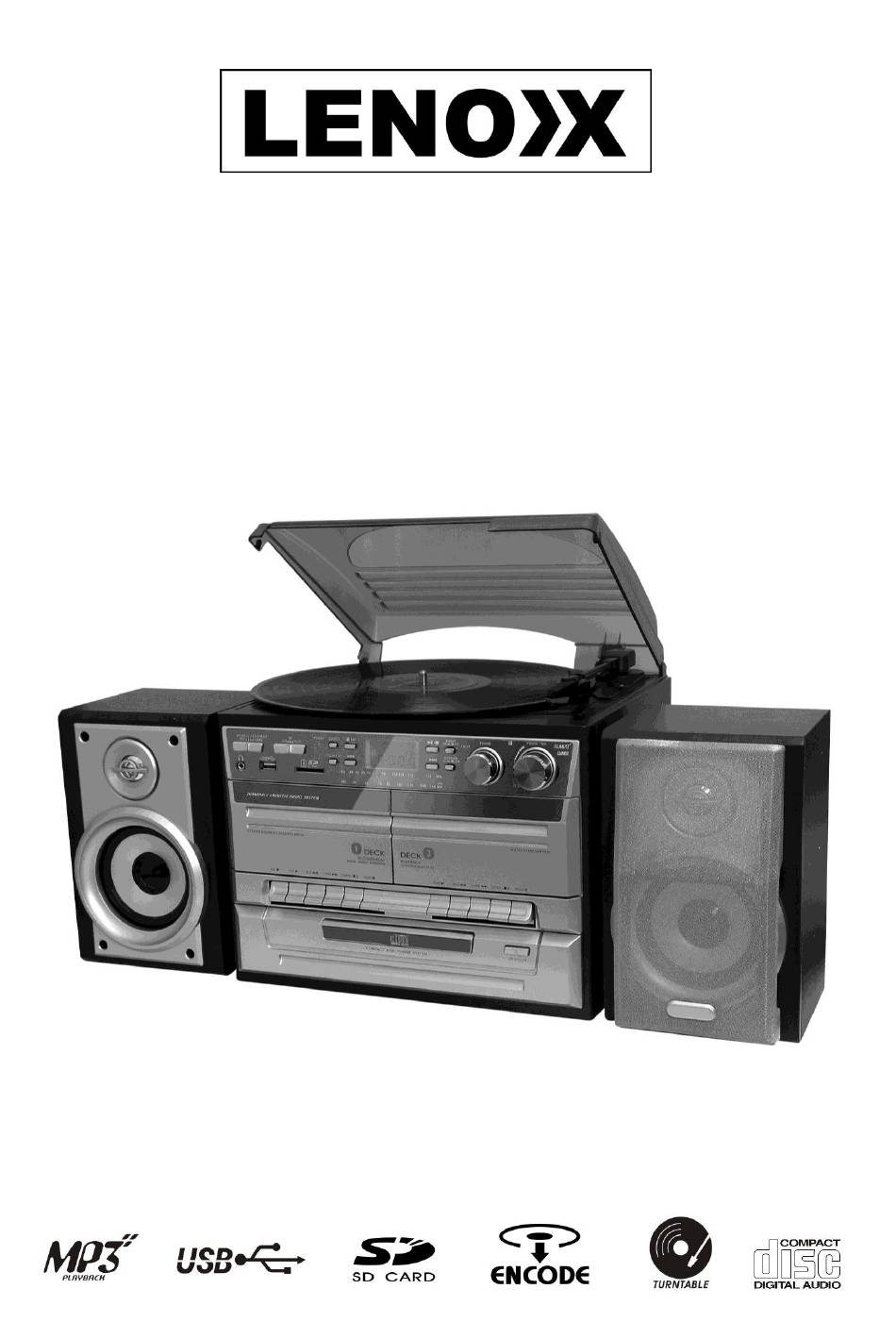

- Page 1 CD114BR & CD114BL BATCH NO: PR3833 CD/MP3 SYSTEM WITH TURNTABLE, AM/FM RADIO, DOUBLE CASSETTE AND USB/SD RECORDING INSTRUCTION MANUAL Please read and retain these instructions for future reference.
-
Page 2: Important Safety Instructions
The illustrations used in this manual are to illustrate the operation method and product structure of the product. Where there is a small difference between the physical item and the illustrations, please take the physical as the standard. IMPORTANT SAFETY INSTRUCTIONS: CAUTION: To reduce the risk of fire or electric shock, do not expose this equipment, the cord or plug to rain or moisture;... - Page 3 • Away from excess dirt and dust. • Away from open windows and any place where water may get into the unit and damage it. • Make sure there is free circulation of air around the unit. Do not place it on a thick carpet, a bed or any place where ventilation holes are obstructed.
-
Page 4: Battery Installation
BATTERY INSTALLATION The battery compartment is located on the back of the remote control. Remove the battery compartment cover by pressing in on the tab and lifting it off. Insert two (2) AAA size batteries (not included) into the battery compartment following the polarity markings inside the battery compartment. -
Page 5: Location Of Controls
LOCATION OF CONTROLS 1) DUST COVER 2) LCD DISPLAY 3) RECORD BUTTON 4) SOURCE BUTTON 5) POWER LED INDICATOR 6) FUNCTION SELECTOR 7) 3.5MM HEADPHONE JACK 8) USB SOCKET 9) CASSETTE DECK (1) DOOR 10) BAND/FM STEREO SELECTOR 11) SD/MMC CARD SLOT 12) MP3 FOLDER UP BUTTON 13) SKIP DOWN BUTTON... -
Page 6: Speaker Connection
CONNECTION CONNECT THE POWER CORD (35) TO AC OUTLET AND CONNECT THE SPEAKER JACK TO THE SPEAKER TERMINAL (33) LOCATED ON THE REAR SIDE OF UNIT. TURN THE POWER ON/OFF BUTTON (19) CLOCKWISE UNTIL HEAR A “ CLICK “ SOUND & THE POWER LED INDICATOR (5) LIGHT UP. - Page 7 ⚫ SKIP/SEARCH MODE (SKIP/SEARCH UP / SKIP/SEARCH DOWN DURING PLAY OR PAUSE MODE, IF “SKIP UP” BUTTON (24) IS PRESSED. IT WILL GO TO NEXT TRACK AND DISPLAY THE TRACK NO. AND THEN REMAIN THE PLAY OR PAUSE MODE. DURING PLAY OR PAUSE MODE, IF “SKIP DOWN” BUTTON (13) IS PRESSED. IT WILL GO BACK TO THE BEGINNING OF THE TRACK, ORIGINAL TRACK NO.
- Page 8 ⚫ RANDOM PLAY YOU CAN LISTEN ALL THE TRACKS OR FOLDER IN A RANDOM ORDER BY THIS FUNCTION CD DISC PROGRAMMING (BY REMOTE CONTROL) UP TO 40 TACKS CAN BE PROGRAMMED FOR CD OR MP3 FILE AND PLAY IN ANY ORDER. BEFORE USE, BE SURE THE SYSTEM IS AT STOP MODE BEFORE PROGRAMMING:- SET IN CD/USB MODE &...
-
Page 9: Line Out Connection
REMARK : AS SOME KIND OF RECORD THE AUTO-STOP AREA WAS OUT OF THE UNIT SETTING, SO IT WILL STOP BEFORE THE LAST RACK FINISH. IN THIS CASE, SELECT THE AUTO-STOP SWITCH TO “ OFF “ POSITION, THEN IT WILL RUN TO THE END OF THE RECORD BUT WILL NOT STOP AUTOMATICALLY (TURN OFF THE POWER BUTTON OR SWITCH BACK THE AUTO-STOP SWITCH (32) TO “... - Page 10 B. RECORDING FROM RADIO ⚫ SELECT “ TUNER ” FUNCTION (6). ⚫ TUNE TO THE DESIRE STATION AND INSERT A BLANK CASSETTE TAPE IN DECK 1. ⚫ PRESS “RECORD” & “PLAY“ KEY TO START RECORDING. ⚫ PRESS “PAUSE” KEYS AND THEN “STOP/EJECT” KEY WHEN FINISH. C.
- Page 11 THE RECORDING FORMAT IS PRESET AT – MP3 BIT RATE : 128 KBPS, SAMPLING RATE : 44.1KHZ NO SONG TITLE WILL BE RECORDED DURING ENCODING MODE TO INTERRUPT THE RECRODING, PRESS THE “ RECORD “ BUTTON AGAIN DURING RECORD MODE. THE SYSTEM WILL STORE THE FILE TO USB SORCE FIRST IF BOTH USB AND SD SLOT ARE BEING OCCUPLIED DURING ENCODING OF PHONO OR TAPE MODE.
