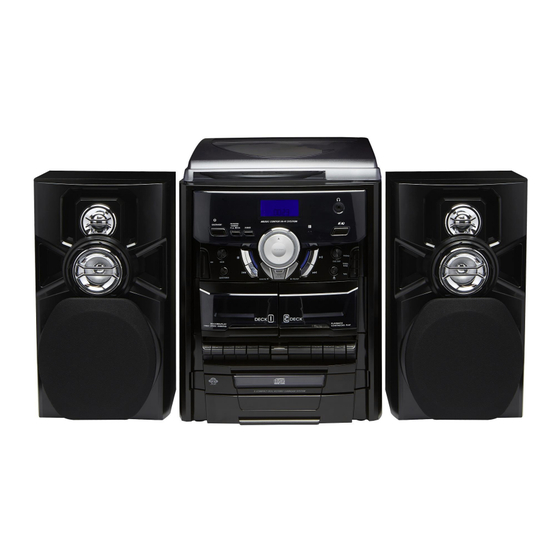

- Page 1 MODEL NO: CD7400N BATCH NO: PR3832 3 CD HI-FI SYSTEM WITH AM/ PLL FM RADIO, DUAL CASSETTE AND TURNTBLE INSTRUCTION MANUAL Please read and retain these instructions for future reference.
-
Page 2: Important Safety Instructions
The illustrations used in this manual are to illustrate the operation method and product structure of the product. Where there is a small difference between the physical item and the illustrations, please take the physical as the standard. IMPORTANT SAFETY INSTRUCTIONS: CAUTION: To reduce the risk of fire or electric shock, do not expose this equipment, the cord or plug to rain or moisture;... - Page 3 • Away from excess dirt and dust. • Away from open windows and any place where water may get into the unit and damage it. • Make sure there is free circulation of air around the unit. Do not place it on a thick carpet, a bed or any place where ventilation holes are obstructed.
-
Page 4: Battery Installation
vibration whilst playing, if the picture or sound skips, or if the picture is distorted, stop the player immediately. BATTERY INSTALLATION The battery compartment is located on the back of the remote control. Remove the battery compartment cover by pressing in on the tab and lifting it off. Insert two (2) AAA size batteries (not included) into the battery compartment following the polarity markings inside the battery compartment. - Page 5 REMOTE CONTROL CONTROL FUNCTIONS Button description On/Standby Press to switch the system on or into standby mode Open/Close Press to open & close the CD door Press to go change to the previous CD track or radio station Disc skip Press to rotate the CD tray and move onto The next disc Press to go change to the next CD track...
- Page 6 MAIN UNIT LOCATION OF CONTROLS 1) Dust cover 2) LCD display 3) Volume up-down button 4) Extra bass control button 5) Standby LED indicator 6) FM mode / Dubbing speed selector 7) On/Standby button 8) CD stop button 9) Mute button 10) CD button 11) Sleep / Timer button 12) Skip / Search / Tuning down button...
- Page 7 Connection 1. Connect the speaker wire from included speaker box to the speaker terminal (35) of the main unit. 2. Connect the power cord (37) to AC outlet, the unit will go into standby mode and Standby LED (5) lights up. 3.
- Page 8 Phono note: Remove the stylus protector. Be sure that the tone arm is detached from the tone arm rest before operating and re-secured again afterwards. 1. Press Phono button (23) 2. Set the speed selector (32) to the proper position depending on the record to be played.
- Page 9 ⚫ Repeat play This function allows to repeat 1 single track, 1 single disc or all discs: - Press the Repeat button (28) repeatedly to switch the function: - REPEAT All DISC REPEAT 1 DISC REPEAT ONE Note: Single track repeat function is possible in normal or programmed playback, repeat one disc or all discs is only available in normal playback.
- Page 10 Dubbing at normal speed ⚫ Press the Tape function button (25). ⚫ Inset a pre-recorded cassette into deck 2 and a blank cassette tape into deck 1. ⚫ Press the Pause key and then press the Record and Play key at deck 1. ⚫...
- Page 11 4) Mode: Press Mode button again to enter wake up mode. Press Mem/clock adj. key & then skip up/down to select wake up mode then press Mem/clock adj to confirm the wake-up mode. ➢ Press the Mode button repeatedly to review the presets time in order. ➢...
