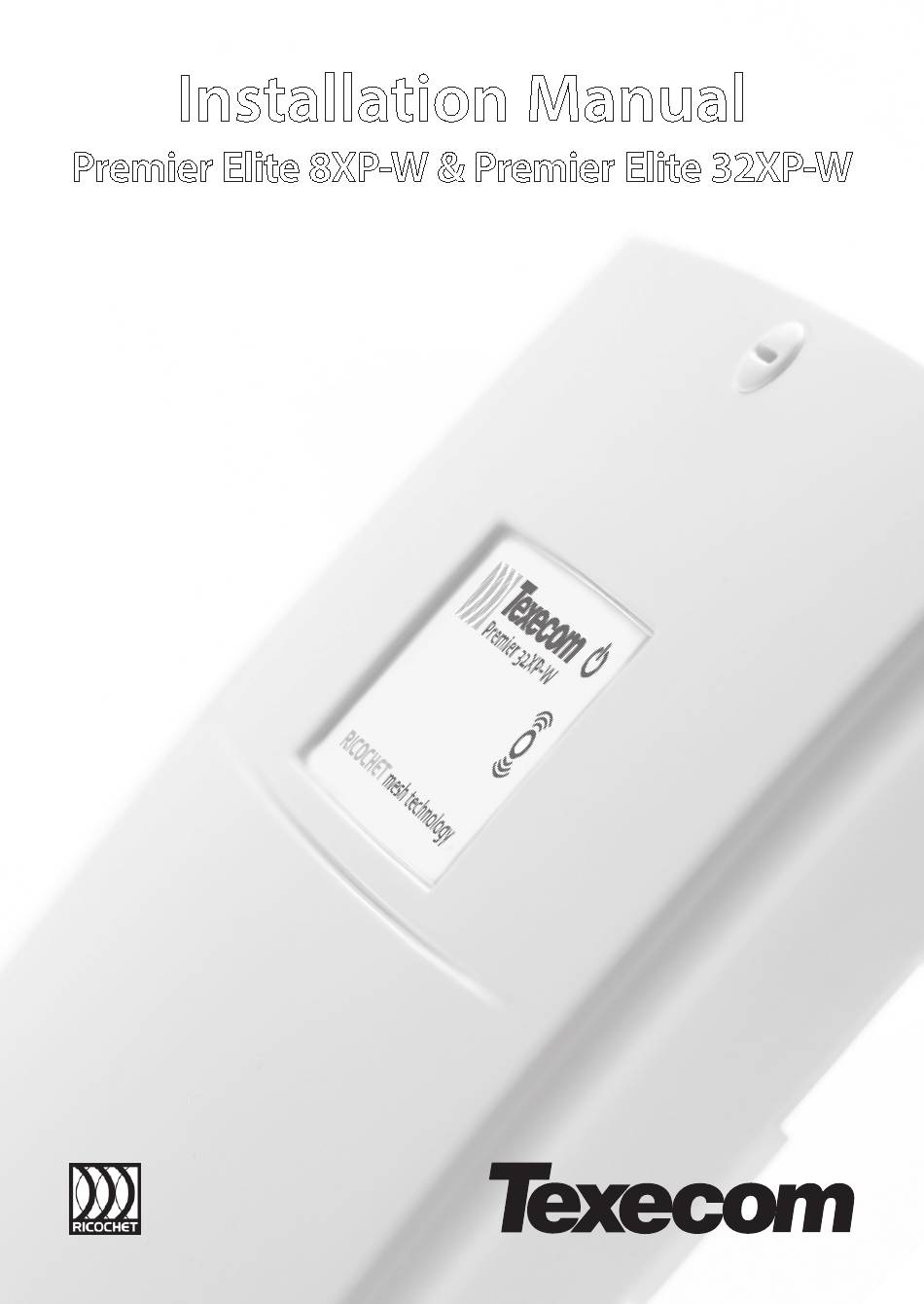

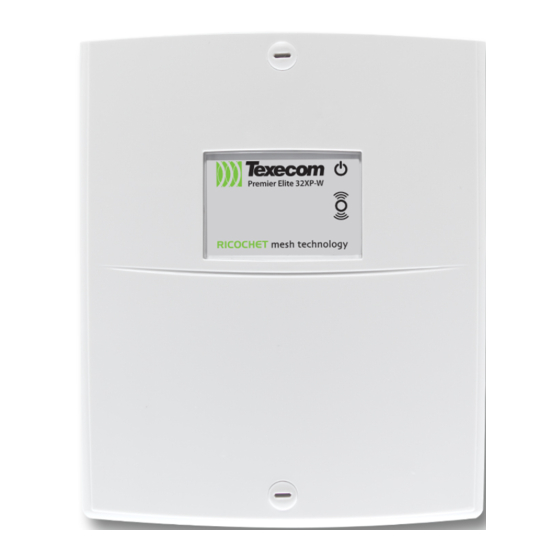

- Page 1 Installation Manual Premier Elite 8XP-W & Premier Elite 32XP-W INS467-8...
-
Page 2: Table Of Contents
Premier Elite 8XP-W & 32XP-W Installation Manual 1. Content 1. Content..........2 LED ..............20 Status ............. 20 2. Premier Elite 8XP-W & 32XP-W .... 3 Premier Elite V2.XX & later ......20 3. Ricochet V3.xx and above ....4 Devices ............20 Premier Elite SmartKey™... -
Page 3: Premier Elite 8Xp-W & 32Xp-W
Premier Elite 8XP-W & 32XP-W Installation Manual 2. Premier Elite 8XP-W & 32XP-W Texecom has developed a new method of wireless security signalling based on the concept of mesh networking. Mesh-networking is the process whereby every single wireless device is capable of receiving and retransmitting any signal from any other wireless device on the network. -
Page 4: Ricochet V3.Xx And Above
Premier Elite 12-W & Live™ Premier Elite 24™ Premier Elite 48™ Premier Elite 48-W™ Premier Elite 88™ Premier Elite 168™ Premier Elite 640™ 1000 Premier Elite 32XP-W take 4 address slots on the network, Premier Elite 8XP-W take one address INS467-8... -
Page 5: System Requirements
Premier Elite 8XP-W & 32XP-W Installation Manual System Requirements To enable all of the advanced functionality and diagnostics capability for Ricochet V3 the following are minimum requirements:- Wintex™ Version 6.2 Build 4 or later Ricochet Monitor™ 0.2.18.5.1 or later ... -
Page 6: Quick Start Guide
Premier Elite 8XP-W & 32XP-W Installation Manual 4. Quick Start Guide Connect Receiver to Control Panel Network & Leave Tamper Circuit Open. Ricochet V1 & V2 See Page 7 Ensure all Option Switches Check Panel Firmware are off Version See Page 7 See Page 3 Learn Devices to Control Legacy... -
Page 7: System Overview
Premier Elite 8XP-W & 32XP-W Installation Manual 5. System Overview 7: Antenna RF Antenna. 8: Network LED's Green LED = Data received by the expander from the panel Red LED = Data transmitted by the expander to the panel. (The flash rate depends on the mode and RF activity) 9: Heartbeat LED Flashes steadily to indicate that the receiver is functioning correctly. -
Page 8: Wiring
Premier Elite 8XP-W & 32XP-W Installation Manual Wiring It is strongly recommended that the system is completely powered down (mains and battery) before wiring the expander. Connect the expander to the control panel using 4-core cable as follows: Expander Control Panel Description +12V Supply 0V Supply... -
Page 9: Example 1 Totally Wireless System(S)
Premier Elite 8XP-W & 32XP-W Installation Manual devices are assigned to available zones. It is possible that if a 32XP-W is being used at Address 1, but only 16 devices have been used, Address 3 & 4 are available for hardwired 8XP's or 8XP-W's. Please see some examples of mixing different types of Expanders on various Elite panels and the addressing requirements. -
Page 10: Programming
Premier Elite 8XP-W & 32XP-W Installation Manual 6. Programming For all Legacy Control panels, please contact Technical Support to obtain a legacy manual. It is highly recommended that you upgrade the Panel Firmware to the latest version to ensure full compatibility;... -
Page 11: Auto Zone Type & Area
Premier Elite 8XP-W & 32XP-W Installation Manual Access the Learn Menu using the Omit “Hot” key From any top level engineering menu pressing the key will take you to the Ricochet learn menu / above. Menu Ricochet Learn Menu / YES to Select:- YES to Select:- /... -
Page 12: Summary Of Keys Used
Premier Elite 8XP-W & 32XP-W Installation Manual YES to Select:- Learn Ricochet Learn Device Zone ??? N?,E? Delete Device? Zone ??? N?,E? If all devices are deleted from the system the following will be shown All Devices Deleted! Pressing the... -
Page 13: Deleting Devices
Premier Elite 8XP-W & 32XP-W Installation Manual Zone 00 Learn: PR P-0,0 Fig 2 If you are unsure if a zone already has a device learned to it, you can go to the menu as in Fig 1, press and then if a device is already learnt the display will look like Fig 2, if not then it will /... - Page 14 Premier Elite 8XP-W & 32XP-W Installation Manual Yes to Select:- Zone Setup Zone 00 Text: y y Zone 00 Panel0 Not sed Zone 00 Chime: Silent y Zone 00 P0,0 Not sed Zone 00 Test: Remote Test Off R ...
-
Page 15: Premier Elite Smartkey
Premier Elite 8XP-W & 32XP-W Installation Manual Premier Elite SmartKey™ Introduction Premier Elite SmartKey™ are now learnt and all functionality managed through the “Setup Users” Menu. Ricochet and Premier Elite Series V2.xx firmware upgrades add additional capabilities to the management of Premier Elite SmartKey™. -
Page 16: Learning Premier Elite Smartkey
Premier Elite 8XP-W & 32XP-W Installation Manual Learning Premier Elite SmartKey™ YES to Select:- Setup sers y Setup sers ser002: B ser002 Route By ser002 Ricochet A Zones 00 - 040 ree ser002 Route By Zones 00 - 040 ser002 Ricochet Learning... -
Page 17: Premier 412/816 V9.5 &V11.10 & Later, Premier 832 2.5 &V4.10 & Later
Premier Elite 8XP-W & 32XP-W Installation Manual Premier 412/816 V9.5 &V11.10 & Later, Premier 832 2.5 &V4.10 & Later Follow these instructions to learn devices to the system, once completed follow the relevant section of the control panel manual to programme zones and user attributes. ... -
Page 18: Removing Detectors
Premier Elite 8XP-W & 32XP-W Installation Manual Removing Detectors If a detector is no longer required it must be unassigned from the system. To remove a detector from a zone, proceed as follows: Enter Engineers code ???? Then press then ... -
Page 19: Smartkey
Premier Elite 8XP-W & 32XP-W Installation Manual Press the power button on the SmartKey™, the panel will generate an acceptance tone and the SmartKey™ is now assigned to the selected user. If required, a user access code can also be assigned to user in the normal way. SmartKey™... -
Page 20: Ricochet Diagnostics
Premier Elite 8XP-W & 32XP-W Installation Manual 7. Ricochet Diagnostics Premier Elite 8XP-W & 32XP-W V3.XX Diagnostic information is provided at the expander using the power and learn LED’s. On the 32XP-W the 8 LED’s using a logical OR function showing information for 2 devices per LED. Green Power LED Slow Flash = Learning Fast Flash = Device/s being updated by panel... - Page 21 Premier Elite 8XP-W & 32XP-W Installation Manual RSSI Each value in the image below represents the RSSI levels in dBm (on V2 it is shown as %) at each of the hops. If question marks appear on the display it means the information is not available. Zone 00...
- Page 22 Premier Elite 8XP-W & 32XP-W Installation Manual Device Status Secure/OK Active/Fault Type Mag1 Zone 00 Shock Status: aaaSpdtt Mag2/Sho Reed/PIR Poll/Supervision Power/Battery Device Rear Front Premier Elite SmartKey™ Messages The chosen user does not have a Premier Elite SmartKey™ associated with them. ser000 Ricochet Not Ricochet The Premier Elite SmartKey™...
-
Page 23: Ricochet Diagnostics Menu
Premier Elite 8XP-W & 32XP-W Installation Manual Ricochet Diagnostics Menu YES to Select:- Engineer tils y Engineer tils View Event Log N Network , P 0 Zone 00 Devices: 08 Not Ricochet B y N LL.H..M. -
Page 24: Premier Elite V3.Xx
Premier Elite 8XP-W & 32XP-W Installation Manual Premier Elite V3.XX> Low signal security For V3 the keypad can display basic signal security information for each device on an expander. Each device will show H High, M Medium or L Low signal security. The system is updated live and therefore it is possible to determine changes by moving devices, or by adding more to the system. -
Page 25: Device Specific Functions
Premier Elite 8XP-W & 32XP-W Installation Manual Device Specific Functions All devices All settings & mounting height recommendations are covered in the relevant device manual. Impaq Plus-W Sensitivity and device placement instructions are covered in the device manual. Impaq Contact-W The Impaq Contact-W has 3 additional inputs labelled MAG 1 COM MAG 2, these inputs can be used for any N/C device. -
Page 26: System Attributes
Premier Elite 8XP-W & 32XP-W Installation Manual 9. System Attributes Polling Polling occurs between the devices and the receiver at a pre-determined interval of 15 minutes. This helps to conserve battery life. Poll intervals are set to 4 minutes when the system is in Commission Mode. Please see page 24 for details. -
Page 27: Premier Elite Smartkey
Premier Elite 8XP-W & 32XP-W Installation Manual Premier Elite SmartKey™ LED Indications SmartKey™ Status LED The Status LED has four colours. This LED cannot be disabled. Pink = Power Up or Down SmartKey status LED FUNCTION 1/PC Control 1 FUNCTION 2/PC Control 2 Green = Successful communication with the system FUNCTION 3/PC Control 3 Flashing Blue = communication with system. -
Page 28: Arm Fail Indication
Premier Elite 8XP-W & 32XP-W Installation Manual For example in a two area system where one area is ARMED and one is DISARMED, both the ARMED & DISARMED LED’s will be on. If the user then presses the DISARM button, the area which is currently ARMED will be DISARMED, and vice versa. -
Page 29: Premier Elite 8Xp-W & 32Xp-W Power Loss
Premier Elite 8XP-W & 32XP-W Installation Manual Premier Elite 8XP-W & 32XP-W Power Loss If the power to the receiver is lost for more than one hour, all devices on the system will enter an “Offline” mode to preserve battery life. When power is replied to the receiver it can take up to two hours for all devices to be recognised by the system. -
Page 30: Standards
3, EN50131-5-3 and PD6662 at Grade 2 and Environmental Class II. Hereby Texecom declares that the radio equipment type: GCA1000-2 and GCD1000-2 Premier Elite 32XP-W and Premier Elite 8XP-W is in compliance with Directive 2014/53/EU. The full EU declaration of conformity is available here http://www.texe.com/cert/doc/DEC-T00192.pdf... -
Page 31: Notes
Premier Elite 8XP-W & 32XP-W Installation Manual Notes: INS467-8... - Page 32 Texecom Limited, Bradwood Court, St. Crispin Way, Haslingden, Lancashire BB4 4PW, England. Technical Support: UK Customers Tel: 08456 300 600 (Calls charged at local rate from a BT landline. Calls from other networks may vary.) International Customers Tel: +44 1706 233875 Email: techsupport@texe.com...
