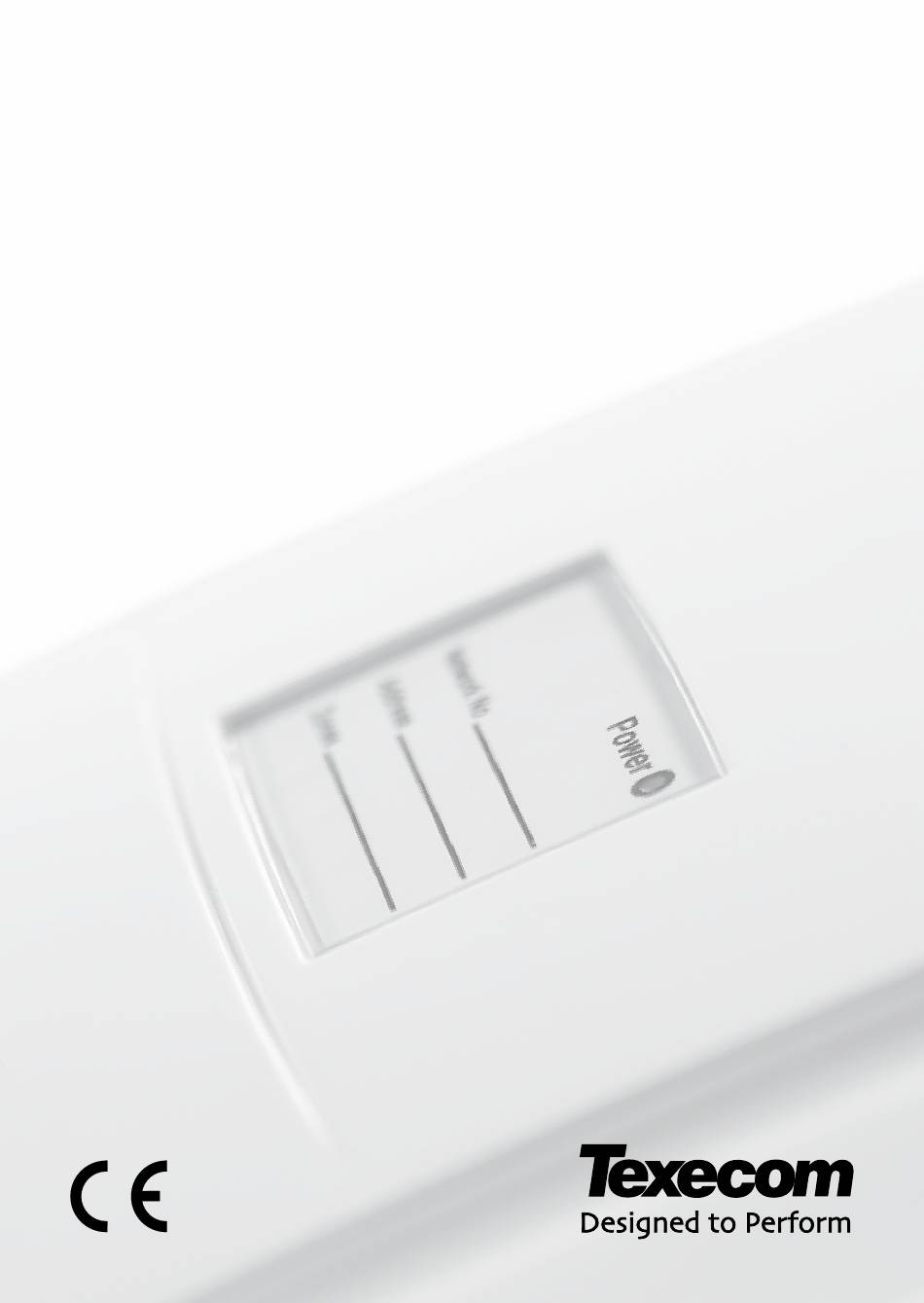

- Page 1 Installation Manual Premier Elite 8XP INS179-5...
- Page 2 Premier Elite 8XP Installation Manual 1. Installation The Premier Elite 8XP expander is only compatible with the Premier Elite range of control panels. Expanders can be connected serially (daisy chain), in parallel (star) or any combination of the two. Mounting Remove each screw cap by inserting a flat bladed screwdriver into the slot and turning anti-clockwise, excessive force is NOT required.
- Page 3 Premier Elite 8XP Installation Manual Selecting an Address Each expander must be assigned a different address using the DIL switches located in the centre of the PCB. The table below shows the expander addressing: Address DIL 1 DIL 2 DIL 3...
- Page 4 Premier Elite 8XP Installation Manual Star wiring example Daisy chain wiring example Combined Wiring example INS179-5...
- Page 5 Premier Elite 8XP Installation Manual Wiring Zones Please refer to the control panel Installation Manual for details on wiring, programming and testing the zones. Wiring Outputs Please refer to the control panel Installation Manual for details on wiring, programming and testing the outputs.
- Page 6 As a result the Premier 8XP is covered by a two-year warranty against defects in materials or workmanship. As the Premier Elite 8XP is not a complete alarm system but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that the control panel failed to function correctly.
- Page 7 Premier Elite 8XP Installation Manual Notes INS179-5...
- Page 8 Texecom Limited, Bradwood Court, St. Crispin Way, Haslingden, Lancashire BB4 4PW, England. Technical Support: UK Customers Tel: 08456 300 600 (Calls charged at 3.36 pence per minute from a BT landline. Calls from other networks may vary.) International Customers Tel: +44 1706 233875 Email: techsupport@texe.com...
