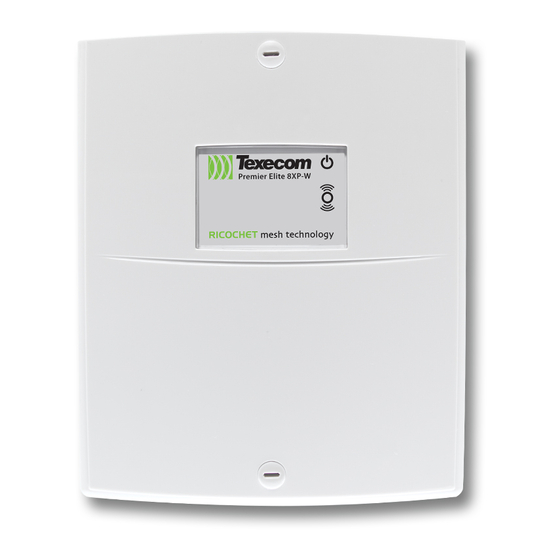

Wireless Mesh Networking Expander
INS467-9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W/32XP-W and is the answer not in the manual?

Questions and answers

Related Manuals for Texecom W/32XP-W

Summary of Contents for Texecom W/32XP-W

  • Page 1 Premier Elite 8XP- W/32XP-W Wireless Mesh Networking Expander INS467-9...

  • Page 2: Table Of Contents

    Content 1.0 Premier Elite 8XP-W & 32XP-W .................... 2.0 Ricochet V3.xx and above ..................... 2.1 System Requirements ......................2.2 System Design Considerations .................... 3.0 Quick Start Guide ........................4.0 System Overview ........................4.1 Mounting the Expander ..................... 4.2 Wiring ..........................4.3 Selecting an Address ......................

  • Page 3: Premier Elite 8Xp-W & 32Xp-W

    1.0 Premier Elite 8XP-W & 32XP-W Texecom has developed a new method of wireless security signalling based on the concept of mesh networking. Mesh-networking is the process whereby every single wireless device is capable of receiving and retransmitting any signal from any other wireless device on the network.

  • Page 4: Ricochet V3.Xx And Above

    2.0 Ricochet V3.xx and above Premier Elite Series™ control panels with V4.xx firmware now contains additional Ricochet V3 capability. This new technology adds new features and functions for Ricochet enabled security systems. DO NOT mix V1 &V2/V3 expanders on the same Premier Elite panel V3 Expander Diagnostics V3 expanders have the ability to display diagnostic information about devices.
  • Page 5 Expanders can be replaced without the need to relearn devices This only applies if devices were originally learned to a V4 panel. V3 Multiple Expander Support V2 introduced multiple expander support to the system allowing for greater flexibility in system design, and also taking wireless capability to new levels. Control Panel Capacity The table below details the maximum number of expanders, devices and Premier Elite SmartKey™...

  • Page 6: System Requirements

    2.1 System Requirements To enable all of the advanced functionality and diagnostics capability for Ricochet V3 the following are minimum requirements:- Wintex™ Version 6.2 Build 4 or later Ricochet Monitor™ 0.2.18.5.1 or later Premier Elite™ Series V4.xx or later Premier Elite™32XP-W & 8-W Expanders V3.xx or later Expander firmware version can be found on the round green sticker located on the RH side of the PCB.
  • Page 7 expanders are in their final location, this is critical on larger systems where multiple expanders are being used Devices should be at least 30cm’s away but no further than 10m from the receiver when being learned. Placing Devices Once all of the devices have been learnt, they will need placing in their desired location, this should be done by installing devices closest to the expander first and then working outwards so that the last devices installed are those furthest away from the expander.

  • Page 8: Quick Start Guide

    3.0 Quick Start Guide INS467-9 8/47...

  • Page 9: System Overview

    4.0 System Overview 1: Engineers Keypad Connection An engineer’s keypad (Premier/Elite LCD keypad and interface lead) can be temporarily plugged onto this connector to allow system programming and testing. (Functions dependent on Panel firmware version) Set the keypad address switches to all on.
  • Page 10 4: Comm. Port Connection Serial communications port for connecting the 8 XP-W & 32XP-W to a PC via PC Com/USB Com or Com IP/WiFi for use with Ricochet Monitor Software. 5: Lid Tamper When open puts the system into commission mode and digitally attenuates the receiver signal by 15Db.

  • Page 11: Mounting The Expander

    OFF = Ricochet Switch 3 OFF = Impaq Contact-W Wired Input 2 will report as Tamper (default) ON = input 2 will report as an Alarm. Switch 4 Walk test 12: Address Switch Used to assign the address of the receiver on the network 13: RF LED Flashes when transmitting or receiving RF data 14: Tamper Disable...

  • Page 12: Wiring

    If required a screw should be placed into the knockout on the rear of the expander to enable the rear/wall tamper. Do not mount near metal or mains supplies. When using with metal control panels a minimum of 50cm gap is required. Do not mount near aerials of any description, or other wireless equipment.

  • Page 13: Ricochet Expander Addressing

    Never set two expanders on the same network to the same address. Expanders are factory set to address 1.On legacy panels the expander will occupy 1 x Expander slot on the control panel, as well as the Network Receiver slot. 4.4 Ricochet Expander Addressing Introduction The address range and switch position will depend on which combination of...

  • Page 14: Programming

    Example 2 Premier Elite 168™, + 32XP-W, 8XP-W's & 8XP's mix Example 3 Premier Elite™48, 32XP-W + 8XP's 5.0 Programming For all Legacy Control panels, please contact Technical Support to obtain a legacy manual. It is highly recommended that you upgrade the Panel Firmware to the latest version to ensure full compatibility;...

  • Page 15: Premier Elite™ V2.10> 12/24/48/88/168 Ricochet Learn Menu

    5.1 Premier Elite™ V2.10> 12/24/48/88/168 Ricochet Learn Menu V2.10 contains a dedicated Ricochet learn menu accessible via the B/O key when in Engineer menu. This new feature is only for devices, SmartKey™ should be learnt to the system in the User Menu as described later in this section. Learn Devices from first power up Follow the instructions given in INS176-8 or later for the first power up of the system.
  • Page 16 Access the Learn Menu using the Omit “Hot” key From any top level engineering menu pressing the key will take you to the Ricochet learn menu above. IMPORTANT In all cases when entering the Learn menu the next available free Zone will be chosen to learn a device too.

  • Page 17: Auto Zone Type & Area

    dictate which next “free” zone is chosen to learn too. When all device slots have been used the following screen will be shown Pressing the key will return you to the Ricochet® learn menu; pressing the key will enter the Delete devices menu. 5.2 Auto Zone Type &...
  • Page 18 Follow the flow diagram to delete devices from the system. To delete all devices, go to Engineer Utilities/Ricochet Diagnostics. Scroll to the first wireless zone for the expander being defaulted and press / followed by /. All zones will be deleted. If all devices are deleted from the system the following will be shown Pressing the key will return you to the Ricochet learn menu;...

  • Page 19: Summary Of Keys Used

    5.4 Summary of Keys used 5.5 Premier EliteV2.00 - V2.09 24/48/88/168 & 640 + Ricochet V2.xx Option Switches All Off Introduction V2.xx firmware added the option to learn Ricochet devices through the Zone Setup Menu, and Premier Elite SmartKey™ are learned through the User Setup menu, the "Configure Radio"...
  • Page 20 If you are unsure if a zone already has a device learned to it, you can go to the menu as in Fig 1, press and then if a device is already learnt the display will look like Fig 2, if not then it will look like Fig 3 Please see the diagram on the next page to learn devices.
  • Page 21 Hybrid Mode Hybrid mode is used to control the reporting functions for devices. When in this mode devices are awake only when the system is set. Devices are woken up by the control panel at the point of arming. The system will display "Preparing to Arm". When the system is disarmed the devices will be put back to sleep.

  • Page 22: Premier Elite Smartkey

    * Please refer to INS176 " Zone setup" for the details when using the X and NO key to change these settings 5.6 Premier Elite SmartKey™ Introduction Premier Elite SmartKey™ are now learnt and all functionality managed through INS467-9 22/47...
  • Page 23 the “Setup Users” Menu. Ricochet and Premier Elite Series V2.xx firmware upgrades add additional capabilities to the management of Premier Elite SmartKey™. In multiple expander systems it is now possible to choose which zones (and therefore expander) the Premier Elite SmartKey™ will use for its routing, LED and Aux functions can also be changed within the “Setup Users”...
  • Page 24 there will obviously be less devices that the Premier Elite SmartKey™ can use. key is used to select this menu and the key used to select which expander and associated zones will be used Once a Premier Elite SmartKey™ has been learned the key will show which zones are being used for routing.
  • Page 25 *Please refer to chapter 8.3 for details of the LED & AUX funtions To disable two stage arming please refer to INS176-8 or later and check Global Options/System Config options 38 & 48. Once the 16 slots on a XP-W are taken up, the learn process will fail and display 'No spaces left'.

  • Page 26: Premier 412/816 V9.5 &V11.10 & Later, Premier 832 2.5 &V4.10 & Later

    5.7 Premier 412/816 V9.5 &V11.10 & Later, Premier 832 2.5 &V4.10 & Later Follow these instructions to learn devices to the system, once completed follow the relevant section of the control panel manual to programme zones and user attributes. For V9.5 & V2.5 the number chosen for learning will determine the device slot taken on the expander.
  • Page 27 then Enter to select the Assign Radio Device menu, if an error tone is generated then the receiver is not installed or configured correctly. Enter the two digit zone number that you want to assign the detector to e.g., Press the learn switch or short the learn pins and insert the battery. The panel will generate an acceptance tone and the detector is now assigned to the selected zone.
  • Page 28 Enter to select the All Zone Options menu. Enter the two digit zone number that you want to remove the detector from e.g. Enter to program the zone type as Null. The panel will generate an acceptance tone and the detector is no longer assigned to the selected zone.
  • Page 29 e.g., Press the key, if an error tone is generated then the receiver is not installed or configured correctly (see Receiver Installation above). Press the power button on the SmartKey™, the panel will generate an acceptance tone and the SmartKey™ is now assigned to the selected user. If required, a user access code can also be assigned to user in the normal way.

  • Page 30: Learning Devices Directly To The 8Xp-W & 32Xp-W

    5.8 Learning Devices directly to the 8XP-W & 32XP-W Learning devices directly to the receiver is only applicable to legacy systems.. For all Legacy Control panels, please contact Technical Support to obtain a legacy manual. 5.9 Using the Engineers Keypad The Engineers Keypad functionality is only applicable to legacy systems..

  • Page 31: Premier Elite V2.Xx & Later

    Device Update When powered up the expander will enter “Device Update” mode for approximately 30 seconds. The green power LED will flash rapidly. During this time no devices can be learnt or deleted. 6.2 Premier elite V2.XX & later Engineer Utilities now includes a new Ricochet Diagnostics menu. This menu displays information about the live system, and is split into Premier Elite SmartKey™...
  • Page 32 the reading is taken. If question marks appear in the display it means the information is not available. RSSI Each value in the image below represents the RSSI levels in dBm (on V2 it is shown as %) at each of the hops. If question marks appear on the display it means the information is not available.
  • Page 33 Example On the 32XP-W there are 16 windows to show information from the 32 devices of the system; the format is the same. Device Status INS467-9 33/47...
  • Page 34 Premier Elite SmartKey™ Messages INS467-9 34/47...
  • Page 35 This option DOES NOT remove known Premier Elite SmartKey™, use the Delete option in Setup Users. Ricochet Diagnostics Menu INS467-9 35/47...

  • Page 36: Premier Elite V3

    6.3 Premier Elite V3.XX> Low signal security For V3 the keypad can display basic signal security information for each device on an expander. Each device will show H High, M Medium or L Low signal security. The system is updated live and therefore it is possible to determine changes by moving devices, or by adding more to the system.

  • Page 37: Device Specific Functions

    enabled when the expander is in tamper. When in commission mode the RF signal is attenuated by -6 dB, and will reject weak signals. This means that when devices are placed into their final locations and communications are established, you can be sure that the signal path is secure, and robust.

  • Page 38: Walktest Mode

    Impaq Contact-W The Impaq Contact-W has 3 additional inputs labelled MAG 1 COM MAG 2, these inputs can be used for any N/C device. If the Reed switch is disabled the device can be used as a transmitter for any device wired into one of the two inputs. The two additional inputs are NOT independently programmable of the reed switch, when mapped to a panel zone if either the reed switch or any of the inputs are triggered the zone which the device is mapped too will go active.

  • Page 39: System Attributes

    turn option switch 4 OFF. The countdown timer will be visible on the engineer’s keypad or Ricochet Monitor. Engineers Keypad Legacy systems only. Please contact Tech support for information. The countdown timer will appear. Ricochet Monitor Press the button . The countdown timer will appear. 8.0 System Attributes 8.1 Polling Polling occurs between the devices and the receiver at a pre-determined interval...
  • Page 40 Always Awake This mode should only be used on devices which are required to signal at all times and is the default setting for the Impaq Contact-W and Impaq Plus-W. For example a Impaq Contac-W on a door which you need to know is opened, regardless of system state;...

  • Page 41: Premier Elite Smartkey

    8.3 Premier Elite SmartKey™ LED Indications SmartKey™ Status LED The Status LED has four colours. This LED cannot be disabled. Pink = Power Up or Down Green = Successful communication with the system Flashing Blue = communication with system. Red = Out of Range Turquoise = Function Mode on Premier 412 816 &...
  • Page 42 manual for details. Enable/Disable Alarm Status LED’s The Alarm Status LED’s can be enabled or disabled either from the Engineers Keypad, or Ricochet Monitor. Alarm Status LED’s are not available on the Legacy Premier 412, 816 & 832. For legacy Premier 24/48/88/168 & 640. Auxiliary Functions The SmartKey™...
  • Page 43 status LED’s will indicate the status of all areas the user has access too. For example in a two area system where one area is ARMED and one is DISARMED, both the ARMED & DISARMED LED’s will be on. If the user then presses the DISARM button, the area which is currently ARMED will be DISARMED, and vice versa.

  • Page 44: Battery Considerations

    the cause of the arm failure. 8.4 Battery Considerations Battery life for all devices will be determined by system complexity, the number of devices that hop, and the use of the Always Awake mode. In a typical system, battery life should be up to 4 years for devices, hopping devices should achieve between 2-3 years.

  • Page 45: Specifications

    To start commission mode put the expander into tamper. For a wireless panel place the jumper on "Fit for Commission" mode located between the 2 aerials of the control panel. Wait for a minimum of 15 minutes for the mesh network to be built.

  • Page 46: Wireless

    European Union. For proper recycling, Texecom declares that this product return this product to your local supplier complies with the requirements of the upon the purchase of equivalent new...

  • Page 47: Warranty

    As the Premier Elite 8 XP-W & 32XP-W expander is not a complete alarm system but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that the Premier Elite 8 XP-W & 32XP-W expander/s failed to function correctly.
