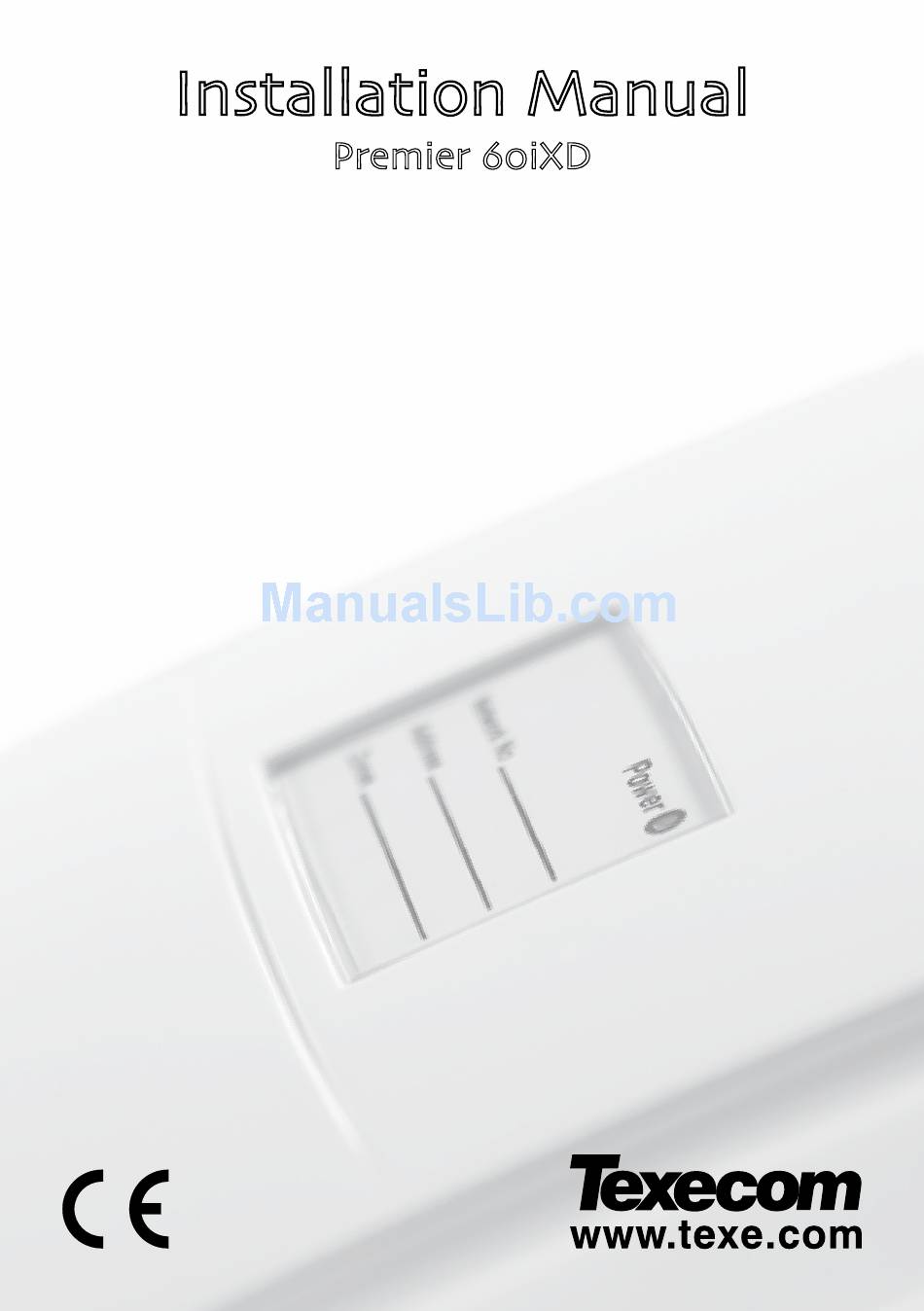

- Page 1 Installation Manual Premier 60iXD Issue 3...
-
Page 2: Local Mode
The module has two loops each supporting up to 30 iD biscuits. The Premier 60IXD module can be installed in one of two modes: Local Mode The local mode allows the Premier 60IXD to be connected to the expansion port on the Premier 48/88/168/640 control panels. This mode provides the following facilities: •... -
Page 3: Pcb Layout
60IXD Installation Manual PCB Layout IDM0123456 Comms Heartbeat Tamp Switch Disable Shorted Shorted 12 0 Network Loop Loop " Harness connection to control panel (Local Mode) Engineer’s keypad connector for local diagnostics Receive data LEDs for engineer’s keypad and Network connections Network terminals for connection to a Premier control panel (Network Mode) &... -
Page 4: Installation
60IXD Installation Manual Installation Before connecting the 60IXD expander module, isolate ALL power from the control panel (AC mains and battery), do not continue if there is still power present on the control panel. Local Mode Fix the expander module as close as possible to the control panel. Route the harness lead from the control panel into the expander module. -
Page 5: Cabling Considerations
60IXD Installation Manual iD Connections Each iD biscuit is connected across a two-wire detector loop. Apart from observing the correct polarity, any wiring configuration can be used, as shown in the diagram below: Premier 60IXD LOOP 1 LOOP 2 As LOOP 1 * See Note on page over. - Page 6 60IXD Installation Manual When installing the iD loop it is usually more practical to run several cables from the expander module to the different areas of protection. This effectively reduces any distance problems and makes fault finding much easier. To reduce the risk of induced interference and wherever possible, cables should not be positioned along side mains power, telephone or other data transmission cables, or run within the same ducting or trunking as any other cables.
- Page 7 60IXD Installation Manual Loop + iD Biscuit Tamper Biscuit Number White Yellow Blue Alarm Loop - When the tamper switch is opened, the iD biscuit is taken offline and a tamper condition is generated by the control panel. If the alarm switch is opened the biscuit's internal sensor changes state and the control panel will see this as an active condition and will respond as appropriate.
-
Page 8: Commissioning And Testing
60IXD Installation Manual Commissioning and Testing Programming the 60IXD Expander (Local Mode) Once the 60IXD expander module has been installed, the following procedure must be carried out in order to enable the module: Enter into the Engineers Menu !"#$. Select the UDL/Digi Options menu % and press &. Select the Com Port Setup menu ' and press &. - Page 9 60IXD Installation Manual View iD Data Menu (Local Mode) YES to Select:- Engineer Utils Engineer Utils View Event Log Engineer Utils View iD Data Notes 1111101010100011 ......1N ....1N Press to toggle between iD Loop The status of the zones Biscuits 01 to 16 will be displayed Biscuits 17 to 30...
- Page 10 Program the zones for the required type, see relevant Installation Manual. Walk test/view zone status to check biscuit operation, see relevant Installation Manual. If you have an engineer’s keypad it can be plugged onto the Premier 60IXD for local diagnostics. Local Diagnostics using an Engineer’s Keypad The local diagnostics menu can be accessed by plugging an engineer’s keypad onto...
- Page 11 60IXD Installation Manual ! - Loop 1 Data This menu shows the status of each biscuit connected to loop 1: Biscuits 01 to 16 Biscuits 17 to 30 1111111111111111 = Not Fitted/Tamper 11001111000000>1 = Healthy = Active Menu/Loop Number = Loop 1 = Loop 2 "...
-
Page 12: Specifications
As a result the Premier 60IXD expander is covered by a two-year warranty against defects in material or workmanship. As the Premier 60IXD expander is not a complete alarm system but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that the Premier 60IXD expander failed to function correctly.
