UM-BlueBoard Base

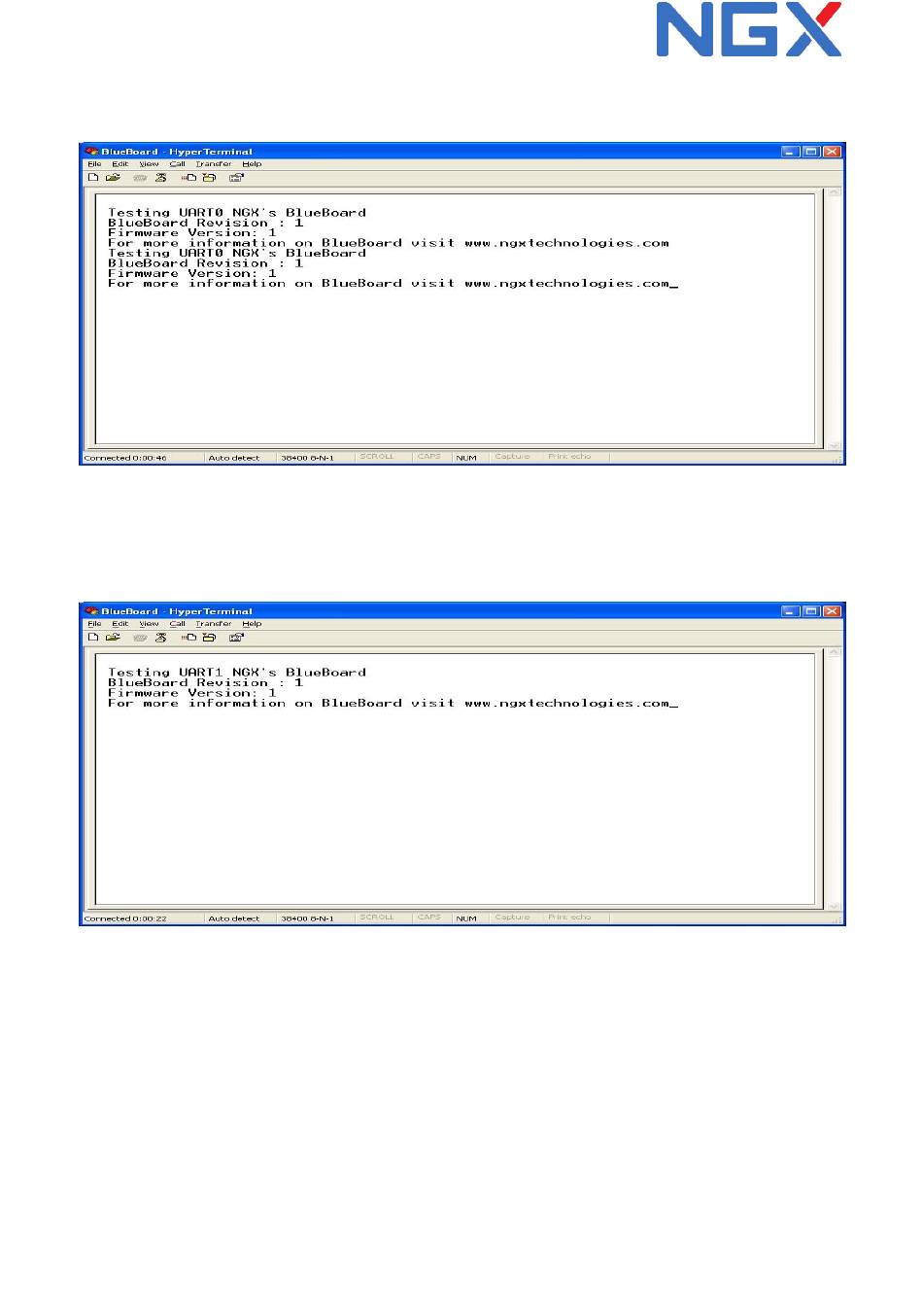

For UART0:
UART0 can also be used for serial programming. If the selected bootloader mode is Manual
then Half modem cable should be used, else if it is in Auto mode use full modem cable. Note that
after programming in auto mode the serial cable should be disconnected.
For UART1:
USB
Before moving ahead with this section, refer to
Windows XP
section in Appendix.
Test setup: Connect the USB cable to USB connector. The power LED (D14) and USB connect LED
(D10) turn ON. The USB enumeration can be checked in device manager. The BlueBoard enumerates
as a Virtual COM port. To test the Virtual COM port; we can test it as we tested the UART0/1 of
BlueBoard.
Page | 8
USB Virtual COM Port Installation for
