UM-BlueBoard Base
Manual Mode:
2.
To program in Manual mode you need a half serial cable (which just has TX, RX and GND wire
connected). Set the jumper to pins 1 & 2 of J26 and connect the half serial cable to UART0 (J5) and
power the board.
To make the board enter programming mode
•
Hold down SW2 (ISP) and SW3 (RESET), then release SW3 first and finally SW2
•
The controller enters the bootloader mode if during reset the SW2 pin is low
Appendix

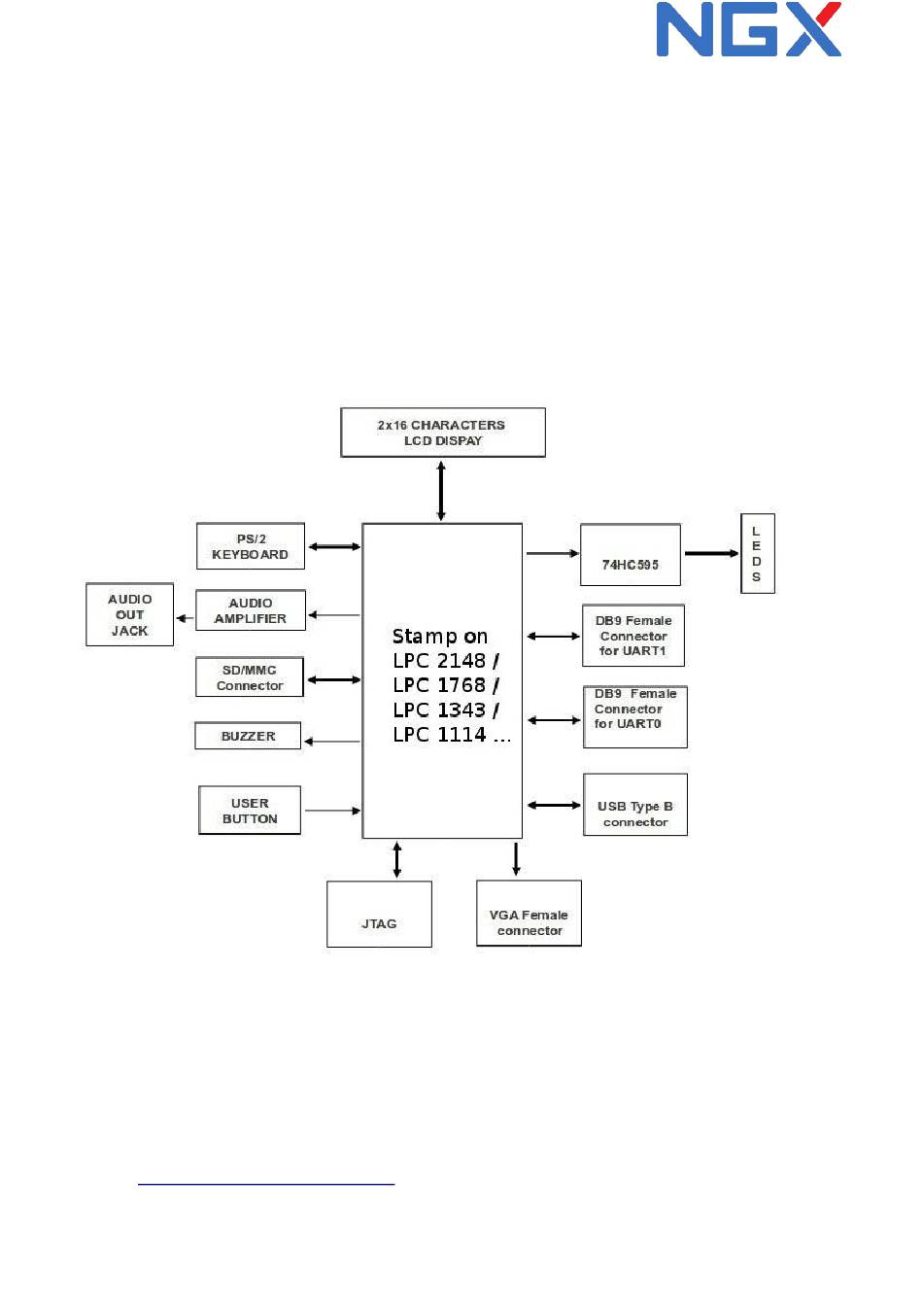

Functional Overview
BlueBoard Base Utilitties
For the working with BlueBoard Base there are certain tools that need to be installed. The
tools required are:
Flash Magic Tool.
The
flash
magic
http://www.flashmagictool.com/
H-JTAG
Page | 11
tool
can
be
downloaded
from
the
following
link:
