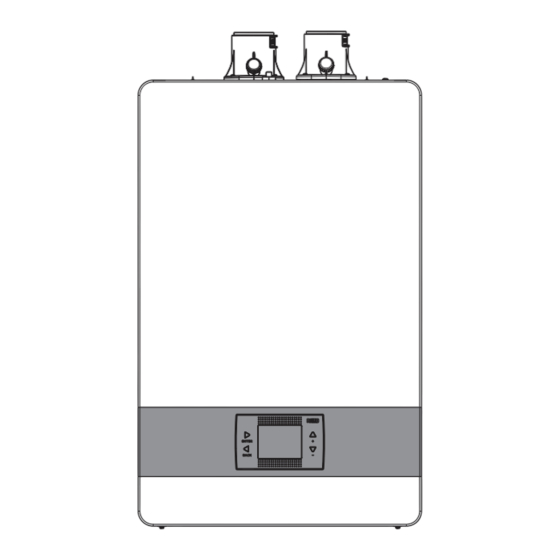

Family PRO 42 KIS-IS
USER'S INFORMATION MANUAL
9
WARNING: If the information in this manual
is not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids or other combustible
materials in the vicinity of this or any other
appliance. To do so may result in an explosion
or fire.
WHAT TO DO IF YOU SMELL GAS:
- Do not try to light any appliance.
- Do not touch any electrical switch; do not
use any phone in your building.
- Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
- If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
This manual should be maintained in legible
condition and kept adjacent to the boiler or
in a safe place for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Riello Family PRO 42 KIS
Summary of Contents for Riello Family PRO 42 KIS
- Page 1 Installation and service must be performed by a qualified installer, service agency or the gas supplier. This manual should be maintained in legible condition and kept adjacent to the boiler or in a safe place for future reference. Family PRO 42 KIS-IS USER’S INFORMATION MANUAL...
-
Page 2: Table Of Contents
CONTENTS 1 KEY TO SYMBOLS ..........3 2 WARNINGS. -
Page 3: Key To Symbols
1 KEY TO SYMBOLS The following instructions must be observed − The boiler must only be used for its designated purpose, PAY ATTENTION TO THESE TERMS observing the Installation Instructions. DANGER = Indicates the presence of immediate hazards which will −... - Page 4 POUR VOTRE SECURITE LISEZ FOR YOUR SAFETY AVANT DE METTRE EN MARCHE READ BEFORE OPERATING WARNING: AVERTISSEMENT: If you do not follow these instructions exactly, Quiconque ne respecte pas à la lettre les a fire or explosion may result causing property damage, instructions dans la présente notice risque de déclencher un incendie ou personal injury, or loss of life (death).
-
Page 5: Product Receipt
It is in your own interest and that of safety to ensure that the law are subject to a restocking charge. is complied with. − Written permission must be obtained through a local Riello − The installation must conform to the requirements of the distributor and must be obtained by your qualified service authority having jurisdiction or, in the absence of such technician. -
Page 6: Structure
STRUCTURE FAMILY PRO 42 combi Filling tap Condensate Trap Backflow preventer valve 4 Drain valve 5 Low Water Cutoff 6 Gas valve Injector FAMILY PRO 42 heating only 8 DHW sensor 9 Water Temperature High Limit 10 Supply sensor 11 Return sensor 12 Primary Heat exchanger 13 Flame sensor 14 Manual air vent hose... -
Page 7: Boiler Front Control
BOILER FRONT CONTROL CONFIRM The boiler control panel functions as an interface, displays system information and provides access to the parameters. The center of the main screen displays the PLANT PLANT 18/05/2013 12:17 temperature of the domestic hot water sensor, 18.85 psi MENU MENU... -
Page 8: Before Switching On
BEFORE SWITCHING ON PLANT PLANT 18/05/2013 12:17 Before switching the appliance on, please familiarize yourself with: - how to isolate the appliance from the gas, water, and 18.85 psi MENU MENU STATE STATE electrical supplies; - how to check and increase, if necessary, the system water pressure;... -
Page 9: Main Zone
managed based on the boiler’s scheduled program. BOILER BOILER MANUAL: if MANUAL is selected, the zone requests will be managed based on the selection set by the user on the thermostat or external controls. HEAT OFF: If HEAT OFF is selected, the zone heating requests will be ignored. -
Page 10: Domestic Hot Water
NOTICE (for heating only model): When this boiler is supplying general purpose hot water for use by individuals, a thermostatically controlled mixing valve for reducing point of use water temperature is recommended to reduce the THE PARAMETER THE PARAMETER risk of scald injury. Contact a qualified plumber or the local WILL BE CHANGED WILL BE CHANGED plumbing authority for further information. -
Page 11: Info Parameter
SETTINGS SETTINGS THE PARAMETER THE PARAMETER TIME & DATE TIME & DATE WILL BE CHANGED WILL BE CHANGED LANGUAGE LANGUAGE CONFIRM CANCEL CONFIRM CANCEL BACKLIGHT BACKLIGHT CONFIRM OR DELETE CONFIRM OR DELETE SELECT OPTION SELECT OPTION SELECTION SELECTION TIME AND DATE 4.12 INFO PARAMETER Press “ENTER”... -
Page 12: Time Schedule
MAIN MAIN OPTIMUM EFFICIENCY START START THURSDAY THURSDAY 07:30 08:30 11:30 13:30 18:00 22:30 05:11 107.6 °F MODIFY MODIFY DELETE DELETE COPY COPY SELECT OPTION SELECT OPTION Time schedule 4.11.2 Press the “up” and “down” buttons to increase or decrease the This function can only be selected if the embedded clock has start time in 30 minute intervals and press “ENTER”... -
Page 13: Delete
band and press “ENTER” to confirm the selection. MAIN MAIN MAIN MAIN START START THURSDAY THURSDAY 07:30 08:30 START START SELECT THURSDAY THURSDAY 11:30 13:30 SELECT 07:30 08:30 PERIOD TO PERIOD TO 18:00 22:30 MODIFY SELECT 11:30 13:30 SELECT MODIFY PERIOD TO PERIOD TO 18:00... -
Page 14: Faults
MAIN MAIN SELECT DAYS ON WHICH YOU WANT SELECT DAYS ON WHICH YOU WANT TO COPY TO COPY SCHEDULE OF THURSDAY SCHEDULE OF THURSDAY E041 LOAD SYSTEM PRESSURE LOAD SYSTEM PRESSURE PLEASE REFILL PLEASE REFILL CONFIRM CONFIRM USE THE ARROWS TO MODIFY USE THE ARROWS TO MODIFY If the pressure drops frequently, contact the Technical Assistance Centre. - Page 15 Boiler faults list ERROR DISPLAYED DESCRIPTION OF TYPE ERROR MESSAGE CODE COLOUR OF ALARM E010 yellow flame lockout/ACF electronic fault final E011 yellow parasitic flame temporary E020 water high limit/thermal fuse final E030 fan fault final E040 yellow low water cutoff - check system water pressure final E041 yellow...
-
Page 16: How To
5 HOW TO... HOW TO SHUT DOWN THE SYSTEM FOR SHORT PERIODS HOW TO INCREASE THE SYSTEM PRESSURE In the event of temporary absences (weekends, vacations, etc.) set the status of the boiler to OFF The system pressure must be checked periodically to ensure the BOILER BOILER correct operation of the boiler. -
Page 17: Draining The Heating Circuit Of The Boiler
- Check the condensate check valve dispositive and, if necessary, to have your appliance serviced. If you do not have a service please contact your Service Technician. technician, please contact your local Riello distributor and Verify proper operation after servicing. they will provide you with a recommendation. -
Page 18: Annual Servicing Check List
Propane Installation Code. Failure to do so may result in substantial property damage, severe injury or death. WARNING: This document is intended as a guideline only, the Riello Family PRO 42 KIS-IS US/CAN Installation & Operations Instructions For Contractors must be read and followed in its entirety. Failure to do so may result in substantial... -
Page 19: Commonwealth Of Massachusetts
8 COMMONWEALTH OF MASSACHUSETTS (b) EXEMPTIONS The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4: IMPORTANT INSTRUCTIONS FOR THE COMMONWEALTH OF MASSACHUSETTS The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA The Commonwealth of Massachusetts requires compliance with 54 as adopted by the Board;... -
Page 20: Warranty
Company) warrants to the original purchaser or Manual For Contractors original user that all RIELLO GAS FIRED WALL HUNG BOILERS − If the boiler is not maintained and repaired according to sold by it and all parts thereof are free of defects in the appropriate Riello Installation &... - Page 24 Mississauga, ON L4W 1P9 CANADA RIELLO S.p.A. Technical Support Hotline: 1.844.387.4663 Via Ing. Pilade Riello, 7 - Email: info@egproductsolutions.com 37045 - Legnago (VR) - Italy Professional Resources: egproductsolutions.com The Company is constantly working to perfect all of its production processes, therefore the aesthetics and size, technical data,...
