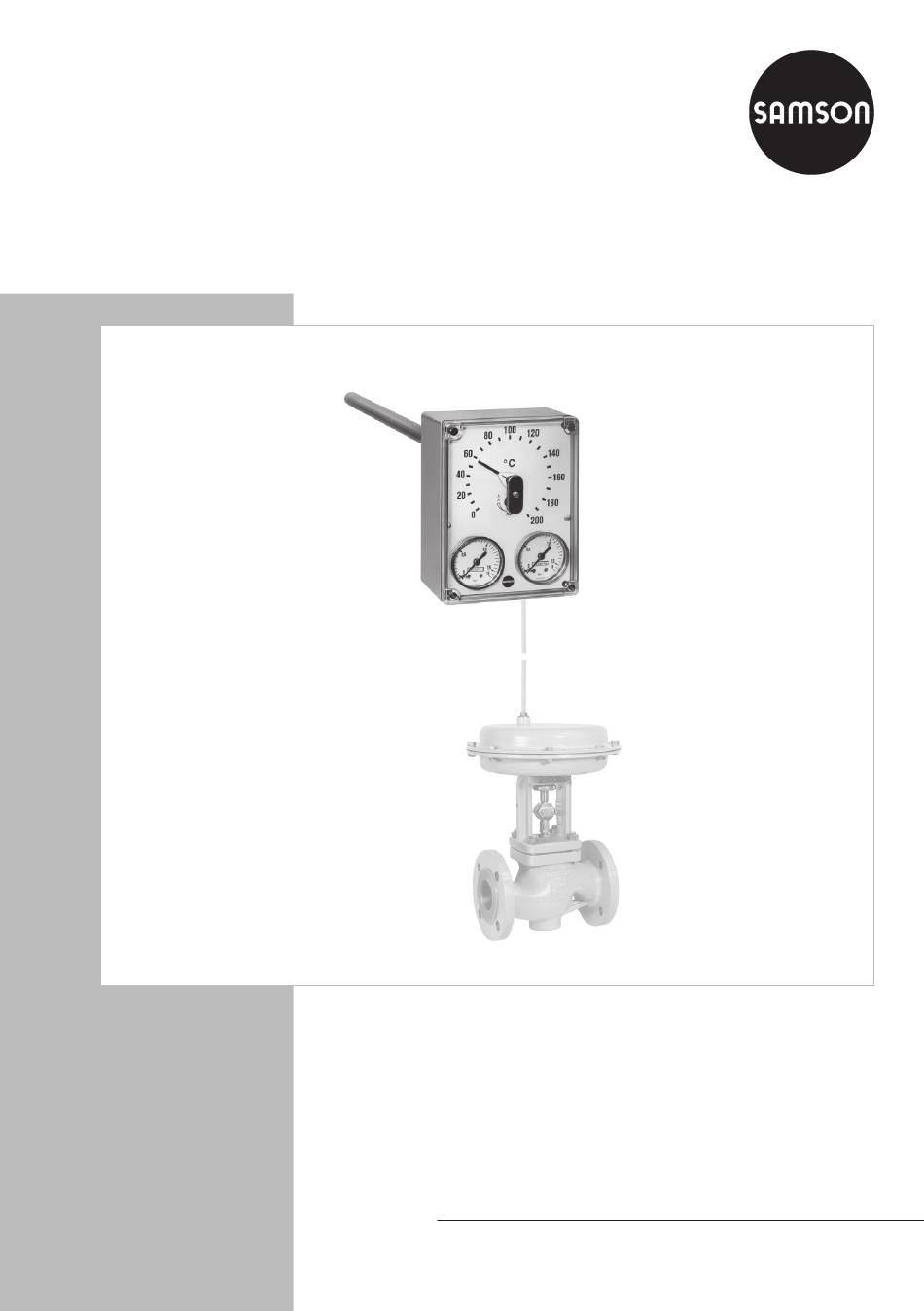

- Page 1 Pneumatic Controller for Temperature Type 3301 Pneumatic Controller for Temperature Type 301-1 Mounting and Operating Instructions EB 7065 EN Edition January 2014...
- Page 2 Definition of the signal words used in these mounting and operating instructions Note: Supplementary explanations, informa- tion and tips EB 7065 EN...
-
Page 3: Table Of Contents
Contents Contents Page General safety instructions ................4 Process medium and scope of application ............5 Transportation and storage ................5 Versions ......................5 Design and principle of operation ..............6 Operating and indicating elements ..............7 Pneumatic connections..................7 Installation ....................8 Mounting position ..................8 Operation ....................10 Adjusting the operating direction ..............10 Set point adjustment ..................10 Adjusting the proportional band ..............10... -
Page 4: General Safety Instructions
− Proper transport, storage, installation, operation and maintenance are as- sumed. − SAMSON does not assume any liability for damage caused when the device is not used as intended. EB 7065 EN... -
Page 5: Process Medium And Scope Of Application
Transportation and storage in the permissible temperature range from –10 to +90 °C. Protect the controller against adverse influences, such as dirt or moisture during storage. 2.2 Versions Two versions of the Type 3301 Controller are available that have different set point ranges. Table 1: Type 3301 ∙ Versions Configuration ID... -
Page 6: Design And Principle Of Operation
7 Set point pointer 8 Screw for set point adjustment 9 Plate spring 10 Base plate 11 Outer tube 12 Invar rod Supply air (1.4 ± 0.1 bar) Output pressure (0.2 to 1 bar) Fig. 1: Functional diagram of Type 3301 EB 7065 EN... -
Page 7: Operating And Indicating Elements
Design and principle of operation 3.1 Operating and indicating elements Set point pointer Screw for set point adjustment Adjustment screw for Xp and oper- ating direction Pressure gauge for Pressure gauge for output pressure p supply air p Connection for Connection for supply air p output pressure p... -
Page 8: Installation
Installation Installation 4.1 Mounting position The controller may be installed in any posi- To install the controller, a coupling sleeve with tion. Make sure that the effective length of the G ½ or G ¾ female thread must be present at sensor (330 mm) is completely surrounded by the point of measurement. - Page 9 Installation Thermowell for welding (PN 63) for pressures up to 63 bar Order no.: 1080-4890 SW 32 Thermowell with flange DN 25 for PN 40 or PN 100 Order no.: 1080-4891 (PN 40) Order no.: 1080-4892 (PN 100) SW 32 Clamping flange For wall mounting, e.g.
-
Page 10: Operation
Operation Operation 2. Turn the adjustment screw (8) until the set point pointer (7) points to the required See Fig. 1 on page 6. temperature on the scale. 5.1 Adjusting the operating Adjustment screw (8) direction Adjust the operating direction before start-up as follows: Note: ... -
Page 11: Zero Adjustment
3. Adjust the set point again. air to blow a blocked nozzle. Insert a fine wire (max. Ø 0.25 mm) to remove any stubborn dirt particles. Nameplate SAMSON 3301- Maintenance Pneumatischer P-Regler für Temperatur See Fig. 1 on page 6. Pneumatic P-Controller for Temperature Régulateur pneumatique P de Température... -
Page 12: Technical Data
Technical data Technical data All pressures in bar (gauge) · Materials according to DIN EN Type 3301 Pneumatic Controller for Temperature Measuring system Mechanical-type expansion sensor Bulb sensor Ø 12 mm, 400 mm long, minimum immersion depth 330 mm, Material Stainless steel 1.4571 Set point, continuously adjustable 0 to 200 °C or 100 to 300 °C... -
Page 13: Customer Service
If malfunctions or defects occur, contact the SAMSON After-sales Service Department for support. Please send your inquiries to: service@samson.de The addresses of SAMSON AG, its subsid- iaries, representatives and service facilities worldwide can be found on the SAMSON website, in all SAMSON product catalogs or on the back of these Mounting and Operat- ing Instructions. - Page 16 SAMSON AG · MESS- UND REGELTECHNIK Weismüllerstraße 3 · 60314 Frankfurt am Main · Germany Phone: +49 69 4009-0 · Fax: +49 69 4009-1507 EB 7065 EN Internet: http://www.samson.de...
