Promax EN-206 User Manual

Promax EN-206 User Manual

High definition isdb-t/tb modulator
Hide thumbs Also See for EN-206:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

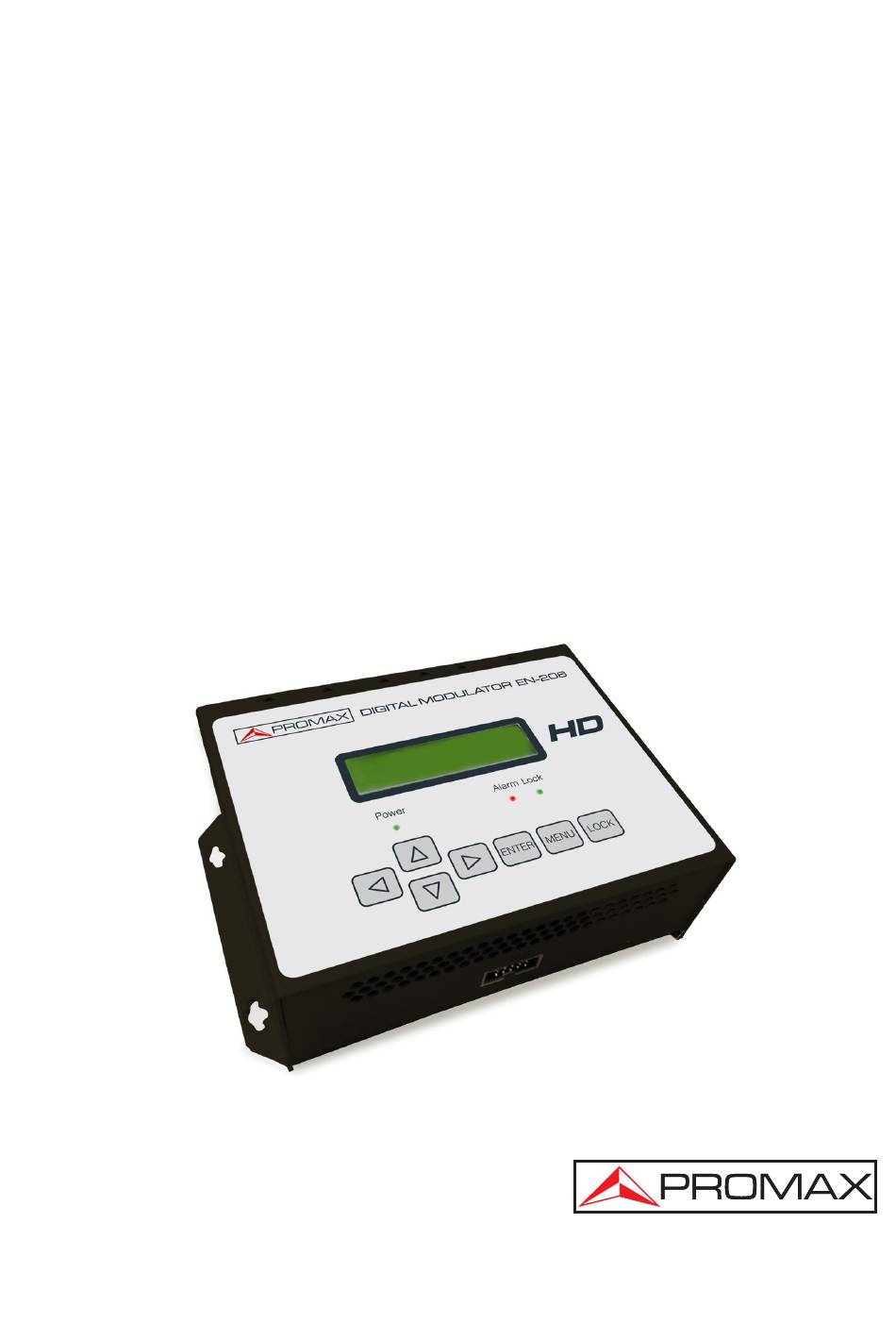

EN-206
HIGH DEFINITION ISDB-T/T
MODULATOR
B
- 0 MI1990 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EN-206 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Promax EN-206

Summary of Contents for Promax EN-206

  • Page 1 EN-206 HIGH DEFINITION ISDB-T/T MODULATOR - 0 MI1990 -...
  • Page 3 SAFETY NOTES Read the user’s manual before using the equipment, mainly "SAFETY RULES" paragraph. The symbol on the equipment means "SEE USER’S MANUAL". In this manual may also appear as a Caution or Warning symbol. WARNING AND CAUTION statements may appear in this manual to avoid injury hazard or damage to this product or other property.
  • Page 5 SAFETY RULES The safety could not be assured if the instructions for use are not closely followed. When using some of the following accessories use only the specified ones to ensure safety.: External DC charger Power cord No use the external DC power cord this is damaged. Do not connect the external DC power until all cables are connected properly.
  • Page 6 Symbols related with safety: Descriptive Examples of Over-Voltage Categories Cat I Low voltage installations isolated from the mains. Cat II Portable domestic installations. Cat III Fixed domestic installations. Cat IV Industrial installations. September 2013...

  • Page 7: Table Of Contents

    T A B L E O F C O N T E N T S 1 INTRODUCTION ................... 1 1.1 Description ..................1 1.2 Equipment Details ................2 1.3 Installation ..................3 1.4 Cascade Installation ................5 2 OPERATIONS AND MANAGEMENT ..............6 3 MENU TREE....................
  • Page 8 September 2013...

  • Page 9: Introduction

    EN-206 I 1 INTRODUCTION Description The EN-206 I which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc. It is an all-in-one device integrating MPEG4 AVC/H.264 encoding and ISDB-T/Tb modulating to convert input signals to ISDB-T/Tb RF out in the frequency range of 30~960MHz.

  • Page 10: Equipment Details

    Equipment Details Front View Figure 2. Up View Figure 3. Grounding: To connect the earth cable. ► DC 12V: Power Input. ► HDMI: HDMI stream input supporting HD signals. ► YPbPr + S-Video + AV: YPbPr + S-Video + AV signal input through a VGA ►...

  • Page 11: Installation

    Down View Figure 4. Installation Mount and tighten the screws and plugs to secure the unit to the wall. Left 10 cm of free space around from each unit. Connect the signal input in the respective connectors. The signal source can be from a surveillance monitor, DVD, set-top box, CCTV and etc.
  • Page 12 Figure 6. September 2013...

  • Page 13: Cascade Installation

    Cascade Installation EN-206 I unit has 1 TV signal to RF output encoded as ISDB-T/Tb Digital TV signal. Several EN-206 I units can be cascaded in order to increase the capacity. The maximum capacity of a series of N units is 1xN incorporated TV signals. To cascade 2 or more units, connect the RF output of the preceding unit to the TV input (loop-through) of the next unit (see illustration).

  • Page 14: Operations And Management

    2 OPERATIONS AND MANAGEMENT EN-206 I is controlled and managed through the keyboard and LCD display. Figure 8. LCD Display: ► It presents the selected menu and the parameter settings. The backlight in the display is on when the power is applied.
  • Page 15 Enter ► Use this button to enter a submenu or save a new setting after adjustment; press it to start adjusting the value of certain items when the corresponding underline flash with Up and Down buttons. Figure 9. Press it to activate the hidden selections and change the setting with Up and Down (or Left and Right) buttons.

  • Page 16: Menu Tree

    3 MENU TREE When the power is connected, the LCD will start to initialize the program. The LCD menu goes as below chart. Numbers on the menu refers to the numbers on the menu tree. September 2013...
  • Page 17 Figure 11. Menu Tree. September 2013...
  • Page 18 1. ISDB-T: Modulating standard. XX.XXX MHz: The current output frequency. 1080i: Video resolution of signal source. X.XX Mbps: The current encoding bit rate 2. Alarm Status: For example, if the CVBS cable disconnected, it will display Video 1 Not Lock under this menu. 3.
  • Page 19 6. Program Information: User can enable or disable the program output under menu Program Output. User can also enter the other items to edit the Service Name, Program Name, Program Number, and PIDs of PMT, PCR, Video and Audio, and edit LCN (Logical channel number).
  • Page 20 14. RF On: User can choose to turn on or turn off the RF under this menu. 15. Bit Rate: User can read the current modulating bit rate and the maximum bit rate 16. TSID (Transport Stream ID): User can view or adjust after enter this menu. 17.
  • Page 21 23. LCD Time out: A time limit that LCD will light off. Choose among 5s, 10s, 45s, 60s, 90s and 120s (seconds). 24. Set password: User can set a password to get into the system. 25. Lock Keyboard: Choose Yes to set a password and lock the keyboard, then the keyboard will be locked and cannot be applicable.

  • Page 22: Specifications

    4 SPECIFICATIONS HDMI VIDEO Encoding MPEG-4 AVC/H.264 Interface HDMI Resolution 1920 x 1080_60 p, 1920 x 1080_50 p; 1920 x 1080_60 i, 1920 x 1080_50 i; 1280 x 720_60 p,1280 x 720_50 p Bit rate 0.500~19.500 Mbps AUDIO Encoding MPEG1 Layer II Interface HDMI Sample rate...
  • Page 23 Modulation Standard ARID STD-B31 Bandwidth 6 MHz Constellation DQPSK, QPSK, 16QAM, 64QAM Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode 2 K, 4 K, 8 K ≥42 dB RF frequency 30~960 MHz, 1 kHz step RF output level -16 ~ -36 dBm (71~91 dbµV), 0.1dB step System Management Local control: LCD + control buttons...

  • Page 24: Maintenance

    5 MAINTENANCE Cleaning Recommendations CAUTION To clean the cover, make sure the instrument is disconnected. CAUTION Do not use scented hydrocarbons or chlorized solvents. Such products may damage the plastics used in the construction of the cover. The cover should be cleaned by means of a light solution of detergent and water applied with a soft cloth.
  • Page 26 PROMAX ELECTRONICA, S. L. Francesc Moragas, 71-75 08907 L’HOSPITALET DE LLOBREGAT (Barcelona) SPAIN Tel. : 93 184 77 00 * Tel. Intl. : (+34) 93 184 77 02 Fax : 93 338 11 26 * Fax Intl. : (+34) 93 338 11 26 http://www.promaxelectronics.com...
