SAFETY NOTES Read the user’s manual before using the equipment, mainly "SAFETY RULES" paragraph. The symbol on the equipment means "SEE USER’S MANUAL". In this manual may also appear as a Caution or Warning symbol. WARNING AND CAUTION statements may appear in this manual to avoid injury hazard or damage to this product or other property.
SAFETY REQUIREMENTS The security can be compromised if not applied the instructions in this manual. Remember that voltages higher than 70 V DC or 33 V AC rms are dangerous. Use this instrument under the specified environmental conditions. The user is not allowed to perform changes inside the equipment. Any change on the equipment must be done exclusively by specialized staff.
Page 4
Symbols related with safety: Descriptive Examples of Over-Voltage Categories Cat I Low voltage installations isolated from the mains. Cat II Portable domestic installations. Cat III Fixed domestic installations. Cat IV Industrial installations. June 2021...
T A B L E O F C O N T E N T S SAFETY REQUIREMENTS ........................0 T A B L E O F C O N T E N T S ........................2 1 INTRODUCTION ............................1 1.1 1 Description ..................

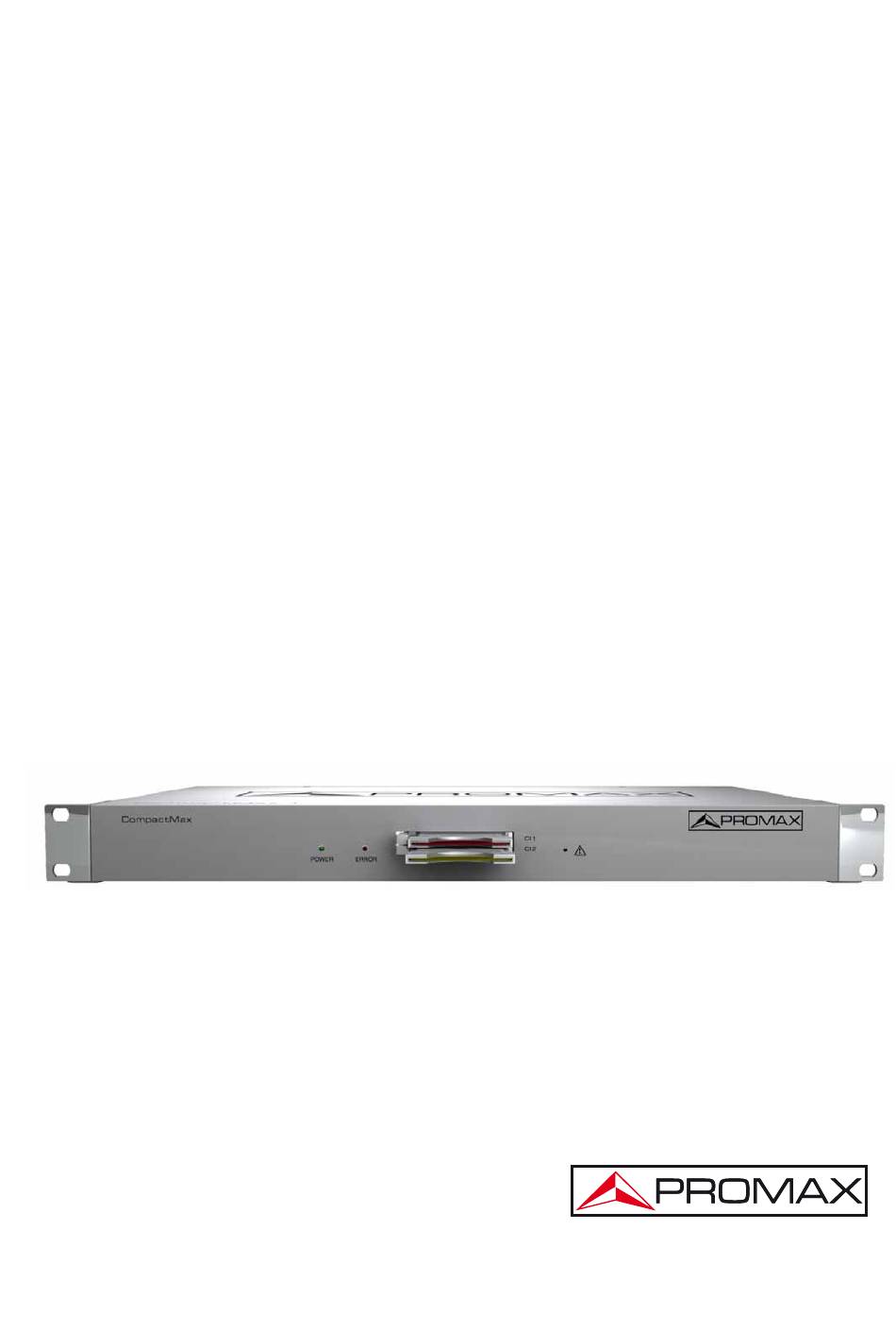

DVB-S/S2 TO IPTV TRANSMODULATOR CompactMax-5 1 INTRODUCTION Description The CompactMax is a compact transmodulation system that allows you to distribute Satellite TV channels (DVB-S or DVB-S2) in IPTV (TS over IP) format, using protocol RTP or UDP (according to SMPTE 2022-1/2).
Page 7
It can be used in hotels, convention centres, hospitals, ships, emblematic buildings, mansions, etc. Figure 1. June 2021...
3 DESCRIPTION Front view Figure 2. Power On indicator. Error indicator. Common Interface input (CI#1) for decoder card. Common Interface input (CI#2) for decoder card. IP address reset. June 2021...
Page 10
Rear view Figure 3. Ethernet connection for data network. Ethernet connection equipment control default: 192.168.29.30; user: Admin; password: Admin). Input #4 for satellite signal (DVB-S/S2) free channels. Input #3 for satellite signal (DVB-S/S2) free channels. 10. Input satellite signal (DVB-S/S2) scrambled channels (connected to CI#2).
5 WEBSERVER OPERATION Introduction The transmodulator is controlled and configured via Ethernet using a standard browser. The webserver application provides access to the setting parameters of the modulator. To use it you need just a standard browser and an internet connection.
Page 13
• Recovering the default IP If you do not remember or do not know the module IP follow the steps below: Press the reset button of the IP address (see figure 2 – (5)). The error LED will flash. Press and hold the button until the LED stops blinking.
Screen description After logging, the following screen displays. Figure 6. Each screen has 4 specific areas: Tab area: Each tab access to a specific set of parameters. Setting Parameters area: Set of parameters according to the tab selected. Edit options: Options to edit parameters. Status area: Transmodulator current state.
Receivers: It shows the status (enabled/disabled) for the 4 satellite receivers. The radio button shows which one is working and its status: green (ok) / red (error). CI modules: It shows the status (initialized/no card) for the CAM module inserted in the common interface (CI) slot. It also shows the satellite receiver selected and the number of selected services for each card.
Setting parameters Setting parameters are grouped in these tabs: Versions/store: Information about firmware and hardware and options to store/ reset/ reboot. Control: Network, password and language settings. Logs: Information about transmodulator operation. Receivers: Satellite receivers settings. CAM: Co nditional Access Module (CAM) settings. Input Services: Information about services captured from satellite receivers.
5.6.1 Versions / Store This window gives information about firmware versions and options to store/reset/reboot. Figure 8. Versions: It shows information about firmware and hardware versions for different components of the transmodulator. Internal IDs: It shows information about the identification number of the equipment, model name and serial number among others.
5.6.2 Control This window has some settings to connect to a data network, to change the password and the menu language. Figure 9. MAC: Physical address of the transmodulator. IP: IP address of the transmodulator in the network (IP by default 192.168.29.30).
5.6.3 Logs This window gives information about the transmodulator operation. Each event happening in the modulator is captured and shown on this window. Each event has a description, a tag and an identification number. Figure 10. June 2021...
5.6.4 Receivers This window has some settings to tune the satellite signal. When the satellite signal is locked, it shows information about it. Figure 11. In first place, select satellite inputs (from 1 to 4) to work on and then expand the data tree.
5.6.5 In this window user can browse through the CAM module menu. Figure 12. Each time an option is selected from the CAM module menu, user should wait until the system accesses the next menu or option. Each CAM module has its own menu settings.
5.6.6 Input Services This window gives information about services captured from satellite receivers. Figure 13 Select the same satellite inputs than selected in the “Receivers” tab. Then expand the data tree to check information about the services captured. Available information is: Transport stream identifier: It is a number that identifies the transport stream.
5.6.7 Output Services This window gives information about services to be released on the IPTV output. Figure 14. Select the IPTV outputs (from 1 to 10) to work on and then expand the data tree to set the parameters in order to release services at the output: LCNs Network identifier: It is the number that identifies the network where the signal is distributed.
5.6.8 IP Broadcast This window shows output settings in order to distribute services in IPTV format. There are 10 independent outputs available. Figure 15. For all outputs: Link status: It shows link status. The color point indicates status: green (ok) / red (down). MAC address: It shows the physical address of the device.
Page 25
isable: Check to disable this IPTV output. Source port: Source port for this service. Destination IP: Destination IP for this service. Destination port: Destination port for this service (SMPTE2022 requires an even value). TS packets per IP: TS packets per IP packet (by default 7). FEC enabled: Check to enable FEC (Forward Error Correction).
6 SPECIFICATIONS Specifications CompactMax-5 SATELL T I E INPUTS 4 satellite inputs Typi ca LO frequencies 9750 MHz, 10600 MHz Supp External/+13 (vert.pol.)/+18V (hor.pol.), 5 W each satellite input ( max.) 22 kHz signalling Low/high frequency band Indi ca ors...
7 MAINTENANCE Instruc tions for Returning b y Mail Inst ruments returned fo repair or calibration, either within or out of the warranty period, should be sent with the following inform ation: Name of the Company, name of the contact person, addre s, telephone number, receipt (in the case of coverage under warranty)
