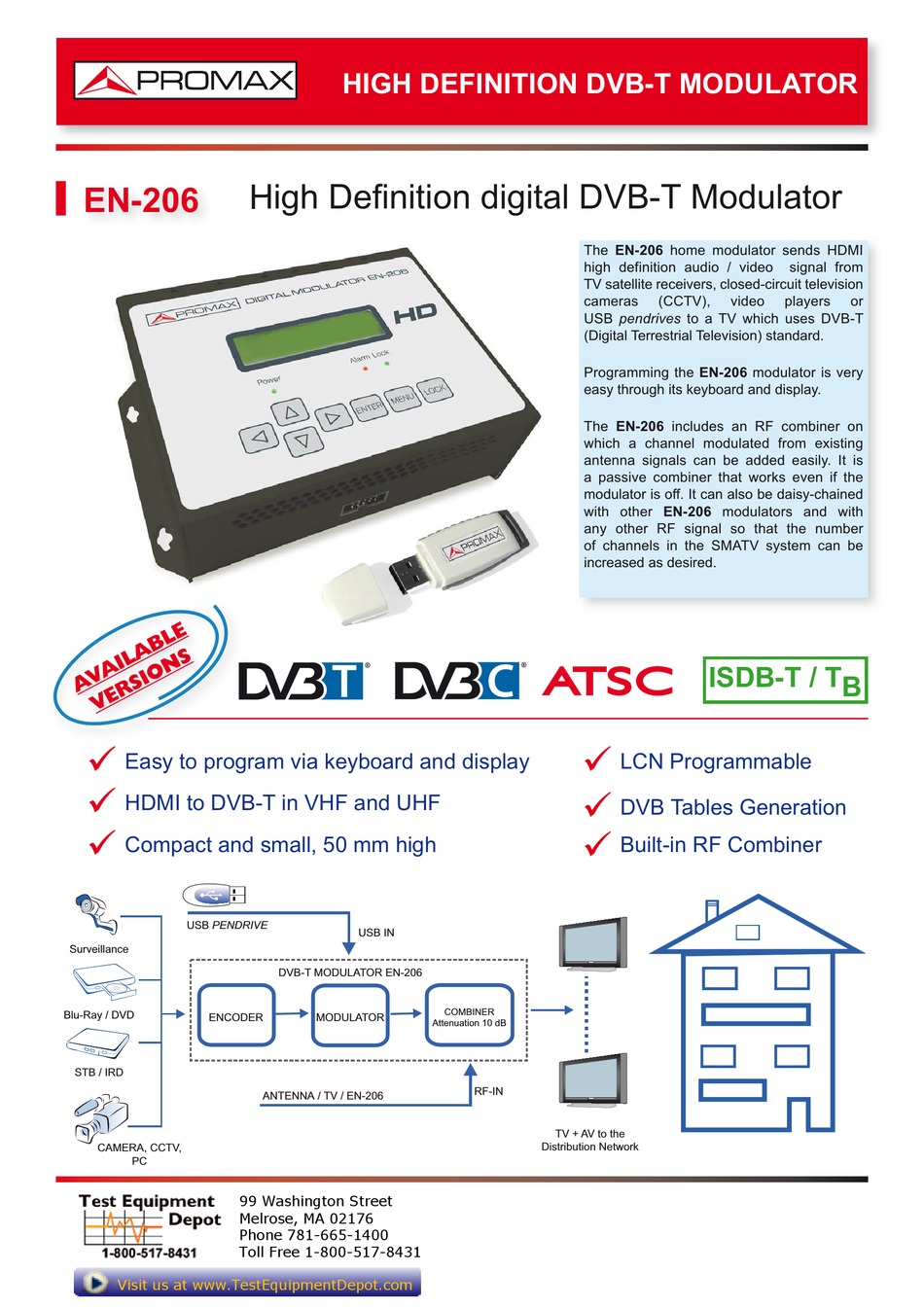

Promax EN-206 Manual

EN-206
ü
Easy to program via keyboard and display
ü
HDMI to DVB-T in VHF and UHF
ü
Compact and small, 50 mm high
USB PENDRIVE
Surveillance
Blu-Ray / DVD
ENCODER
STB / IRD
CAMERA, CCTV,
PC
Visit us at www.TestEquipmentDepot.com
HIGH DEFINITION DVB-T MODULATOR
High Definition digital DVB-T Modulator
USB IN
DVB-T MODULATOR EN-206
MODULATOR
ANTENNA / TV / EN-206
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
The EN-206 home modulator sends HDMI
high definition audio / video
TV satellite receivers, closed-circuit television
cameras
USB pendrives to a TV which uses DVB-T
(Digital Terrestrial Television) standard.
Programming the EN-206 modulator is very
easy through its keyboard and display.
The EN-206 includes an RF combiner on
which a channel modulated from existing
antenna signals can be added easily. It is
a passive combiner that works even if the
modulator is off. It can also be daisy-chained
with other EN-206 modulators and with
any other RF signal so that the number
of channels in the SMATV system can be
increased as desired.
ü
ü
ü
COMBINER
Attenuation 10 dB
RF-IN
TV + AV to the
Distribution Network
signal from
(CCTV), video players
ISDB-T / T B
LCN Programmable
DVB Tables Generation
Built-in RF Combiner
or
