WARNING: This procedure makes the machine operate. Before you perform this
procedure, check to make sure that operation of the machine will not create any
hazard or danger.

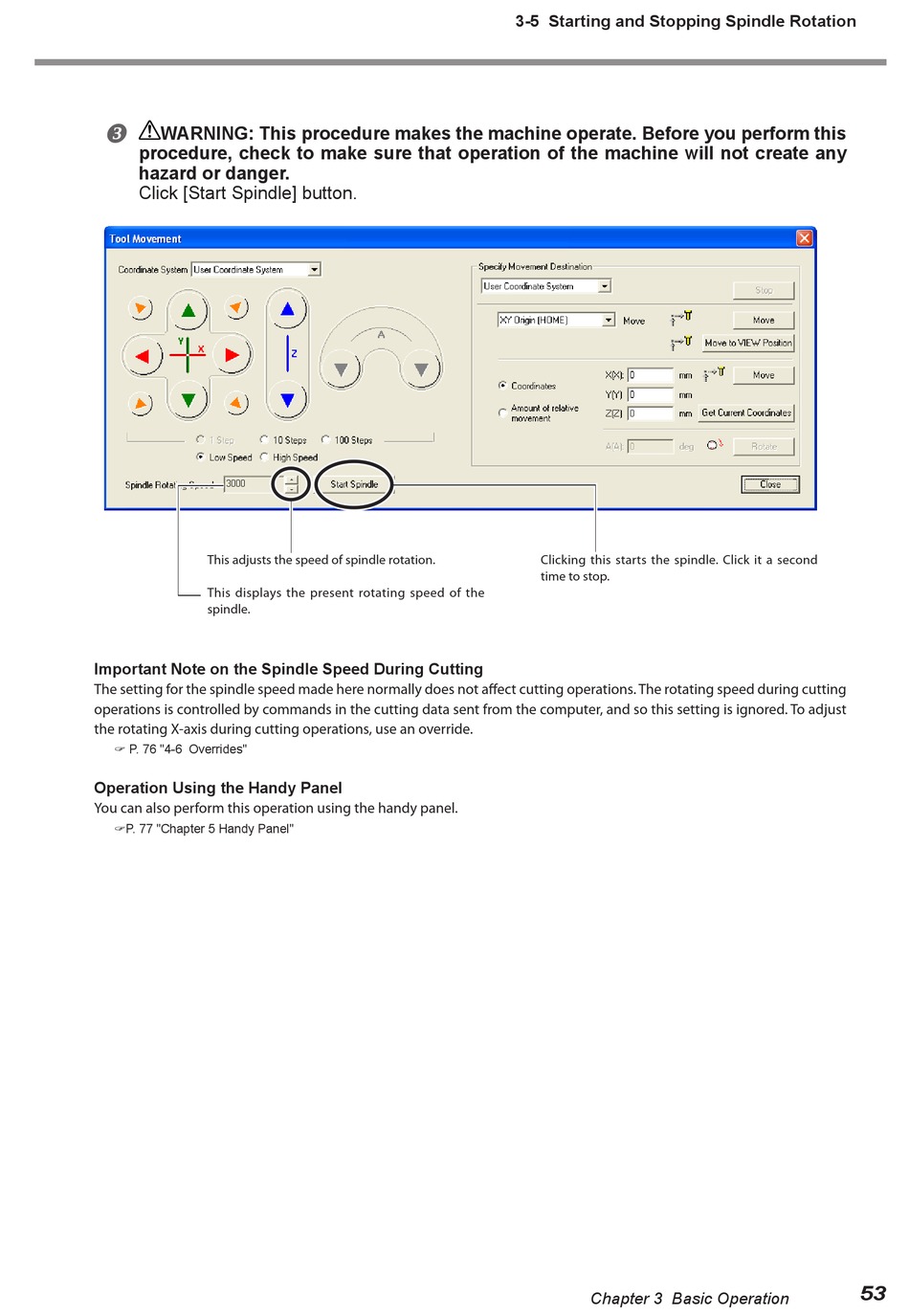

Click [Start Spindle] button.
This adjusts the speed of spindle rotation.
This displays the present rotating speed of the
spindle.
Important Note on the Spindle Speed During Cutting
The setting for the spindle speed made here normally does not affect cutting operations. The rotating speed during cutting
operations is controlled by commands in the cutting data sent from the computer, and so this setting is ignored. To adjust
the rotating X-axis during cutting operations, use an override.
 P. 76 "4-6 Overrides"
Operation Using the Handy Panel
You can also perform this operation using the handy panel.
P. 77 "Chapter 5 Handy Panel"
3-5 Starting and Stopping Spindle Rotation
Clicking this starts the spindle. Click it a second
time to stop.
Chapter 3 Basic Operation
53
