Summary of Contents for Roland JWX-30

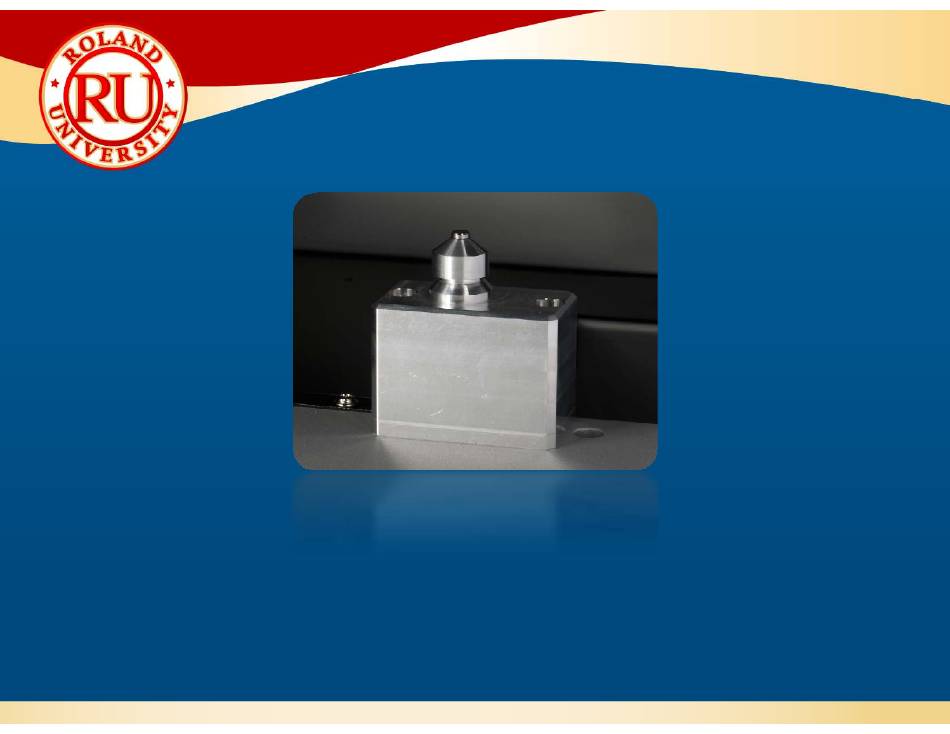

  • Page 1 JWX-30 Setup...

  • Page 2: What's Included

    What’s Included All items included NOTES: •Please be familiar with the names of all the accessories listed here.
  • Page 3 What’s Included Cont. All items included NOTES: •Please be familiar with the names of all the accessories listed here.
  • Page 4 JWX-30 Drivers Install Driver Install NOTES: Insert drivers CD. • Click on Windows Driver and click Install. • Follow setup guide for your Operating System. • Vpanel Install: Click on Vpanel for JWX-30 and click Install. •...

  • Page 5: Spindle Break-In

    Spindle Break In Spindle will need to be broken in, or run in, under NOTES: the following conditions. When using spindle for the first time. • After moving machine and reinstalling. • After replacing the spindle unit. • When used in low temperature area. •...
  • Page 6 Fixture’s Use NOTES: •The fixture used will be determined by the object or model created.
  • Page 7 Setup Basics – Installing Tool Follow the below steps for installing the collet, NOTES: tooling, and using the two spanner wrenches. Install the collet loosely. Use the 17mm wrench to hold the • spindle in place as you install the collet until it is finger tight.
  • Page 8 Setup Basics – Installing Tool Insert tool until it stops. There is a magnet inside the collet NOTES: • that will “hold” the tool. Approximately 30 mm should be •To prevent tool from accidental breaking, you can extended out from the collet place an item below the tool should the tool accidentally fall.
  • Page 9 Setup Basics – Installing Tool To tighten the collet, use both spanners to tighten the collet. NOTES: • •These basic tool installation TIP: Use the 17mm wrench in the left hand and 10mm • steps will be used various wrench in the right hand. Pull the wrenches away to times during setup and the tighten tighten...
  • Page 10 Setup Square Clamp What the square clamp will be used for NOTES: Two sided cutting using • “frame center”. Rotary cutting using • “frame tip”...
  • Page 11 Setup Square Clamp Size Limitations for Small and Large Clamps NOTES: Flat work area. •...
  • Page 12 Setup Square Clamp Size Limitations for Small and Large Clamps NOTES: Rotary work area. •...
  • Page 13 Setup Square Clamp Installing and Setting Up Clamps NOTES: Close front covers and press View button. • Open front cover and install detection pin. • Mount desired square clamp on Rotary Axis. • **Remove screw at tip of clamp**...
  • Page 14 Setup Square Clamp Install clamp holder and secure square clamp. NOTES: •...
  • Page 15 Install Detection Pin Insert detection pin until it stops. There is a magnet inside NOTES: • the collet that will “hold” the pin. Approximately 30 mm should be extended out from the collet. Use both spanners to tighten the collet. •...
  • Page 16 Setup Square Clamp Close covers and open Vpanel for JWX-30. NOTES: • Located under programs & “Roland Vpanel for JWX-30”. • Click on “Change Jig”. • Select Square Clamp (Large) or Square Clamp (Small). •...
  • Page 17 Click “Close” when the process has finished. Once finished, the jig will indicate • which jig is being used. JWX-30 is now ready setup for using • the small square fixture.
  • Page 18 Setup Square Clamp Install material into clamp. NOTES: • Close covers and press “View” button to • move the table forward and make the fixtures more accessible fixtures more accessible. Install 1mm ball end mill. •...
  • Page 19 Setup Square Clamp You will be using SRP Player to “send” NOTES: • the program to the JWX-30. Use the sides or frame center program • to perform this procedure to perform this procedure. Click on “Start Cutting” to begin.
  • Page 20 Setup Square Clamp Using the JWX-30 Virtual Panel, set the NOTES: • origin point. Select “Set XYZ origin at frame center” • and click “Apply” and click Apply . The tool will check the tool height and • set the correct X & Y origins at the correct location.
  • Page 21 Setup Square Clamp Now that the origins have been set, NOTES: • click on “Next”. Click “Next” again to start the cutting • process.
  • Page 22 Setup Square Clamp Once finished, cut out ring from frame and install ring on NOTES: • frame clamp. Ensure the holes match up to the posts. • Use thumb screw to secure ring. •...
  • Page 23 Setup Square Clamp You will be using SRP Player to “send” NOTES: • the program to the JWX-30. Open the rotary program to complete • the ring the ring. The software will indicate where you • need to set the origin point.
  • Page 24 Setup Square Clamp Using the JWX-30 Virtual Panel, set the NOTES: • origin point. Select “Set XYZ origin at tip” and click • “Apply” Apply . The tool will check the tool height and • set the correct X & Y origins at the correct location.
  • Page 25 Setup Square Clamp Now that the origins have been set, NOTES: • click on “Next”. Click “Next” again to start the cutting • process.
  • Page 26 Square Clamp Once completed, remove the model from the square NOTES: • clamp.
  • Page 27 Setup Tube Clamp What the tube clamp will be used for NOTES: Rotary cutting using standard tube wax. • Can mill multiple rings at once or one ring at a time. •...
  • Page 28 Setup Tube Clamp Size Limitations for Tube Clamp NOTES:...
  • Page 29 Setup Tube Clamp Installing and Setting Up Clamp NOTES: Close front covers and press View button. • Open front cover and install detection pin. • Before installing, separate adapter and tube shaft. •...
  • Page 30 Setup Tube Clamp Install adapter onto rotary axis unit. NOTES: •...
  • Page 31 Setup Tube Clamp Install shaft onto adaptor and secure with cap screw. NOTES: •...
  • Page 32 Setup Tube Clamp Install clamp holder to secure tube clamp. NOTES: •...
  • Page 33 Install Detection Pin Insert detection pin until it stops. There is a magnet inside NOTES: • the collet that will “hold” the pin. Approximately 30 mm should be extended out from the collet. Use both spanners to tighten the collet. •...
  • Page 34 Setup Tube Clamp Close covers and open Vpanel for JWX-30. NOTES: • Click on “Change Jig”. • Select “Tube Clamp” from list. •...
  • Page 35 Click close when the process has finished. Once finished, the jig will indicate • which jig is being used. JWX-30 is now ready setup for using • the swivel clamp fixture.
  • Page 36 Setup Tube Clamp Installing material into tube clamp. NOTES: • Close covers and press “View” button to move the table • forward and make the fixtures more accessible. Remove clamp holder. • Mount workpiece onto shaft. Press firmly enough to keep •...
  • Page 37 Setup Tube Clamp Remount clamp holder to secure tube clamp. NOTES: • Install 1mm ball end mill •...
  • Page 38 Setup Tube Clamp You will be using SRP Player to “send” NOTES: • the program to the JWX-30. Click on Start Cutting to begin. • The software will indicate where you • need to set the X origin point. ***DO NOT CLICK “NEXT” YET***...
  • Page 39 Setup Tube Clamp Using the JWX-30 Virtual Panel, set the NOTES: • origin point. Select “Set YZ origin at center of • rotation” and click “Apply” rotation and click Apply . The tool will check the tool height and •...
  • Page 40 Setup Tube Clamp Now we need to set the X Origin point. NOTES: • Move the tool as indicated by your • software. In this example, we move the tool in • the X axis until it is in the middle of our wax piece.
  • Page 41 Setup Tube Clamp Now that the origins have been set, NOTES: • click on “Next”. Click “Next” again to start the cutting • process.

  • Page 42: Tube Clamp

    Tube Clamp Once cutting has been completed, remove wax piece from NOTES: • fixture.
  • Page 43 Setup Swivel Clamp What the swivel clamp will be used for NOTES: The swivel clamp will be used for cutting heads or bezels. • Rotary cutting • Table cutting •...
  • Page 44 Setup Swivel Clamp Size Limitations for Swivel Clamp on Rotary Axis NOTES:...
  • Page 45 Setup Swivel Clamp Size Limitations for Swivel Clamp on Table NOTES:...
  • Page 46 Setup Swivel Clamp Installing and Setting Up Clamp Installing and Setting Up Clamp NOTES: Close front covers and press View button. • Open front cover and install detection pin. • Mount Rotary Axis adaptor and clamp base on Rotary Axis. Mount Rotary Axis adaptor and clamp base on Rotary Axis.
  • Page 47 Install Detection Pin Insert detection pin until it stops. There is a magnet inside NOTES: • the collet that will “hold” the pin. Approximately 30 mm should be extended out from the collet. Use both spanners to tighten the collet. •...
  • Page 48 Setup Swivel Clamp Close covers and open VPanel for JWX-30. NOTES: • Click on “Change Jig”. • Select “Swivel Clamp”. •...
  • Page 49 Setup Swivel Clamp Click on “Start Sensing” to begin the NOTES: • detection process. JWX-30 will automatically detect • various points as well as turn the various points as well as turn the spindle by half a turn if needed.
  • Page 50 Setup Swivel Clamp NOTES: Click OK to complete detection. • Once detection has finished, click OK • and close Jig Detection window.
  • Page 51 Setup Swivel Clamp The JWX-30 VPanel will indicate what NOTES: • fixture is now set up on machine.
  • Page 52 Setup Swivel Clamp Installing material into swivel clamp. NOTES: • Close covers and press “View” button to move the table • forward and make the fixtures more accessible. Remove clamp base from table • Attach retaining rings onto clamp base •...
  • Page 53 Setup Swivel Clamp Mount workpiece material securing with retaining ring NOTES: • Mount clamp base and material onto rotary axis adaptor •...
  • Page 54 Setup Swivel Clamp Install 1mm ball end mill NOTES: • You will be using SRP Player to “send” the program to the • JWX-30. Click on “Start Cutting” to begin. •...
  • Page 55 The software will indicate where you NOTES: • need to set the X origin point. ***DO NOT CLICK “NEXT” YET*** Using the JWX-30 Virtual Panel, set the • origin point. Select “Set XYZ origin at rotary-axis • clamp” and click “Apply”...
  • Page 56 Setup Swivel Clamp Once finished, the Vpanel will indicate NOTES: • where the origin is set using a red arrow on the fixture. Now that the origin points have been • set, click on “Next”.
  • Page 57 Setup Swivel Clamp Click “Next” again to start the cutting NOTES: • process. Completed wax model. •...
  • Page 58 Setup Swivel Clamp Remove swivel clamp fixture from rotary axis unit. NOTES: • Mount swivel clamp onto table adaptor. •...
  • Page 59 Setup Swivel Clamp You will be using SRP Player to “send” NOTES: • the table program to the JWX-30. Click on “Start Cutting” to begin. • The software will indicate where you • need to set the origin points need to set the origin points.
  • Page 60 Setup Swivel Clamp Close covers and select “Set XYZ origin at table clamp” then NOTES: • click “Apply”. Once finished, the Vpanel will indicate where the origin is • set using a red arrow on the fixture.
  • Page 61 Setup Swivel Clamp NOTES: Now that the origins have been set, • click on “Next”. Click “Next” again to start the cutting • process.
  • Page 62 Setup Swivel Clamp Completed model. NOTES: •...
